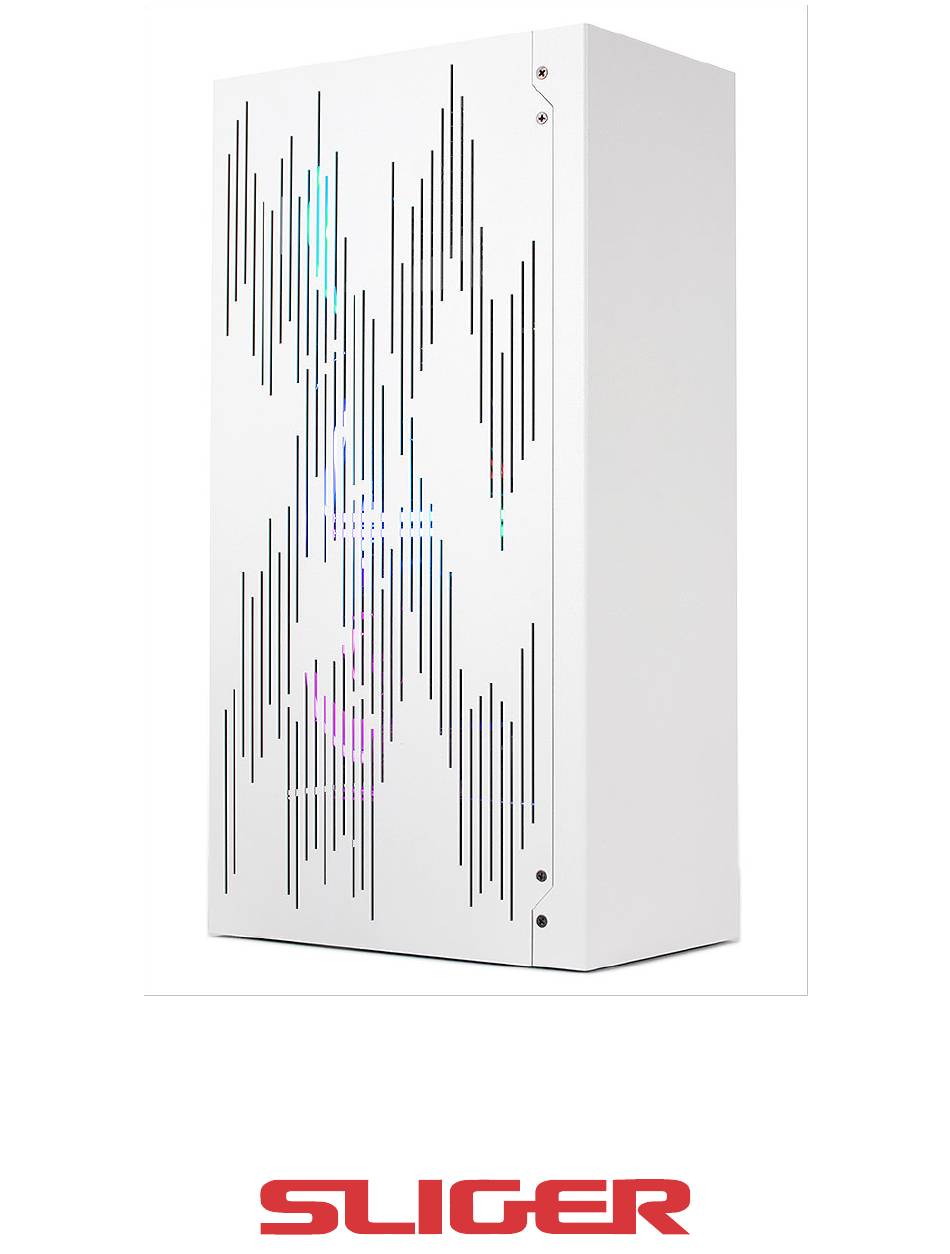

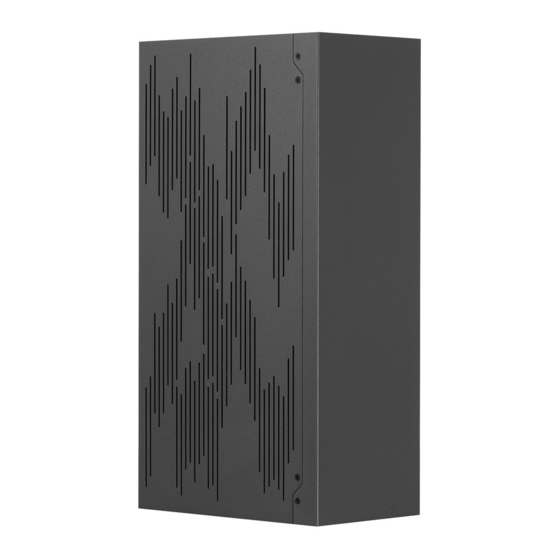

  • Page 1 SV590 Vertical Mini-ITX PC Case - Build Guide...
  • Page 2 SCREWS The SV590 comes with a total of 5 different screws. For the purposes of this guide we will assign a unique color to each of the screws, signifying their locations through out this guide. GREEN M3 x 6mm PAN HEAD...
  • Page 3 TOOL-LESS END CAPS The SV590s top and bottom covers feature tool-less removal via ball- stud mounting points. This feature allows for convenient access to your motherboard and PCIe card IO ports regardless of case orientation. The top and bottom panels can also be reversed onto either end of the case, allowing the “cable cubby”...

  • Page 4: Side Panels

    SIDE PANELS Panels on the SV590 are attached via a total of 12x 6-32 X 1/4” FLAT HEAD. Four per panel with three panels total (front panel + two side panels). A Phillips #2 size screw driver is required for these screws.
  • Page 5 CASE FRAME The rear radiator mount bracket of the SV590 frame is held on by 6-32 X 1/4” FLAT HEAD screws; two on each side of the cable cubby, and one on each side at the opposite end of the case.

  • Page 6: Power Cord

    POWER CORD The SV590 includes an internal power cord extension, protective grommet, and mount bracket for routing the power supply inlet into the"cable cubby" of the case frame. Clip the Cable Grommet onto the power cord before you install it into the case.

  • Page 7: Power Button

    POWER BUTTON New for V2 of the SV590 is the ability to mount the power button to either end of the case frame. With V2, the power button is attached to a small bracket which can be relocated to either mounting position.
  • Page 8 MOTHERBOARD Don’t forget to install the power cord and your IO shield first! Some CPU coolers may require a back plate installed before installing the motherboard into the case. It is advised to also check that any M.2 mounts on the back of the motherboard have drives installed before mounting the motherboard.

  • Page 9: Power Supply

    POWER SUPPLY NOTE: The fan on the power supply is recommended to be positioned with the fan side pointed towards the center spine of the case. This orientation will result in better overall system temperatures and lower noise. Once positioned, the SFX PSU can be attached to the PSU Mounting Bracket with up to 6x of the included 6-32 x 1/4”...
  • Page 10 POWER SUPPLY CONT. Note: The fan on the power supply is recommended to be positioned with the fan side pointed towards the center spine of the case. This orientation will result in better overall system temperatures and lower noise. Once positioned, PSU alternative mounting bracket can be attached to the chassis with 2x 6-32 X 1/4”...
  • Page 11 SSDs and HDDs This is our RECOMMENED SSD layout on the front rail of the chassis. 4x 2.5" SSDs can be installed with 2x M3 x 5mm FLAT HEAD screws per drive. Note: The lower 2 SSDs can NOT be used when you have DDC Pump mounted.
  • Page 12 SSD and HDDs Our SV590 has multiple 3.5" HDD and 2.5" SSD mounting locations. Shown below are various HDD and SSD configurations. Note : Can fit up to 5 SSD drives under the PSU ONLY if an SFX PSU is mounted to the alternative PSU mounting bracket (A).
  • Page 13 SSDs and HDDs (cont) 2x 3.5” Hard Drive Disks Note: 3.5" HDD limits the maximum GPU length to 290mm 3.5” Hard Drive Disks should be mounted with 2x 6-32 X 1/4” FLAT HEAD screws.

  • Page 14: Cable Management

    CABLE MANAGEMENT Once the motherboard and power supply are mounted, it is recommended to do some cable management before we install any radiators or PCIe cards. Note: the CPU and cooler mount back plate / standoffs are installed. The power switch/LED is routed and plugged into the motherboard.
  • Page 15 PCIe card bracket with the M3 x 6mm PAN HEAD screws. If your GPU only has a 2-slot wide PCIe bracket. The SV590 includes a single-color matched slot cover.
  • Page 16 If fans are installed as intake you will cause your power supply and GPU to run at high temperatures, which may cause part failures. The compact design of the SV590 limits the ways in which dual AIO setups can be installed.
  • Page 17 360mm AIO ALL FANS MUST BE SET TO EXHAUST OUT THE REAR OF THE CASE, If fans are installed as intake you will cause your power supply and GPU to run at higher temperatures. If the 360mm radiator hoses are mounted to the top, you will not be able to screw the case closed as the hoses will collide with the motherboard and/or GPU PCIe riser bracket.
  • Page 18 CASE REASSEMBLY To attach the AIO/radiator, the back panel must be reinstalled from disassembly on page 5 in this guide. The rear radiator mount bracket to the SV590 frame is held on by 6x 6-32 x 1/4" FLAT HEAD screws.
  • Page 19 DDC PUMP RESERVOIR The SV590 has multiple DDC Pump / Reservoir mounting locations which are shown below Location 1 Location 2 DDC Pump attached to bracket with DDC Pump attached to the chassis M4 x 5mm FLAT HEAD screws above the PSU with 3x...
