Summary of Contents for Sliger CL530

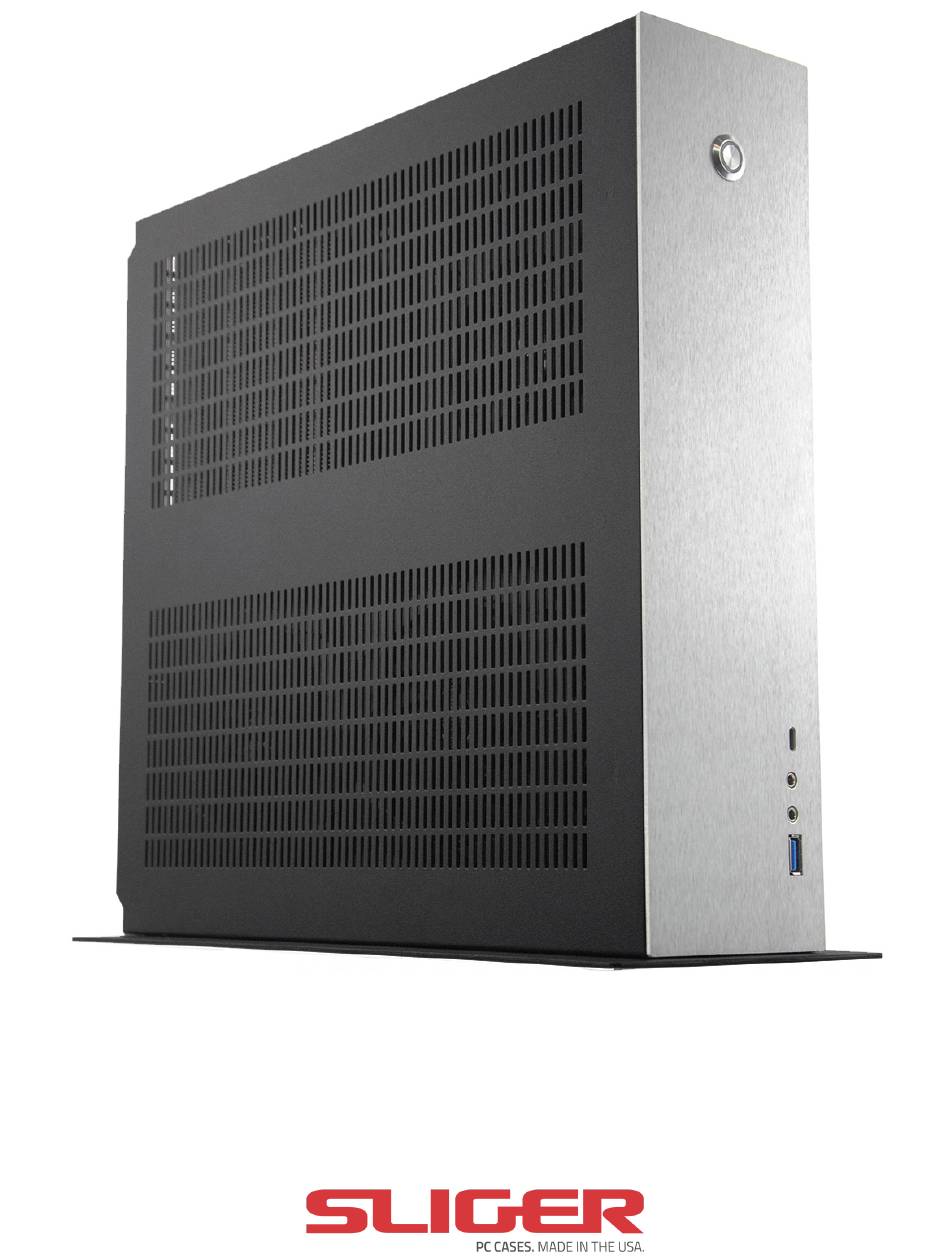

- Page 1 CL530 Console Style Mini-ITX PC Case for 3-slot GPU...
- Page 2 SCREWS The CL530 comes with a total of 8 different screws. For the purposes of this guide we will assign a unique color to each of the screw to signify their locations through out this guide. CYAN M4 .7 x 5mm FLAT HEAD...
- Page 3 SCREWS Cont. PINK M3 x 8mm FLAT HEAD Power Cord BLUE M3 x 25mm FLAT HEAD 25mm Fan Fan Bracket YELLOW M3 x 12mm FLAT HEAD 15mm Fan Fan Bracket GREY M4 x 25mm SOCKET CAP Case Handle...
- Page 4 SSD MOUNTING The CL530 can fit two 2.5" SDDs, located beside the power switch. Use 2x M3 x 5mm FLAT HEAD for each SSD. Note: We recommend connecting the SATA data cable and power cable prior to attaching drives to chassis.
- Page 5 MOTHERBOARD Don’t forget to install your IO shield first! Some CPU coolers may require a back plate to be installed before installing the motherboard. It is advised to also check that any M.2 mounts on the back of motherboard have drives installed before installation of the motherboard. Once the IO shield is properly installed the motherboard can now be mounted using 6-32 x 1/4”...
-
Page 6: Power Supply
POWER SUPPLY The fan on the power supply is required to be positioned with the fan side of the power supply towards the top of the case. Once positioned, the SFX PSU can be attached to the PSU Mounting Bracket with up to 4x 6-32 x 1/4”... - Page 7 INSTALLING 15mm CASE FANS Use 4x M3 x 12mm FLAT HEAD screws to attach the fan guard. Place fans into chassis sliding in the fan studs. Follow the proper orientation of the fan guard in photo below and the fans MUST exhaust air out of the case. First Slot...
- Page 8 INSTALLING 25mm CASE FANS Use 4x M3 x 12mm FLAT HEAD screws to attach the fan guard. Place fans into chassis sliding in the fan studs. Follow the proper orientation of the fan guard in photo below and the fans MUST exhaust air out of the case.
- Page 9 PCIe riser. Slide the card into position, push down into the slot, and then secure the PCIe card bracket with up to three M3 x 6mm PAN HEAD screws. If your GPU only has a 2-slot wide PCIe bracket. The CL530 includes a single color matched slot cover.
-
Page 10: Power Cord
157mm whereas the standard option only allows for a card height of 133mm. Standard Pig-tail Inlet NOTE: The CL530 Pig-tail option is to increase max GPU card height to 157mm where as the standard option only allows for a card height of 133mm. -
Page 11: Cable Management
CABLE MANAGEMENT Once the motherboard and power supply are mounted, it is recommended to do some cable management before installation of any PCIe cards. Note: the CPU and cooler mount back plate / standoffs are installed. The power switch/LED is routed and plugged into the motherboard.
