Summary of Contents for Sliger SV590

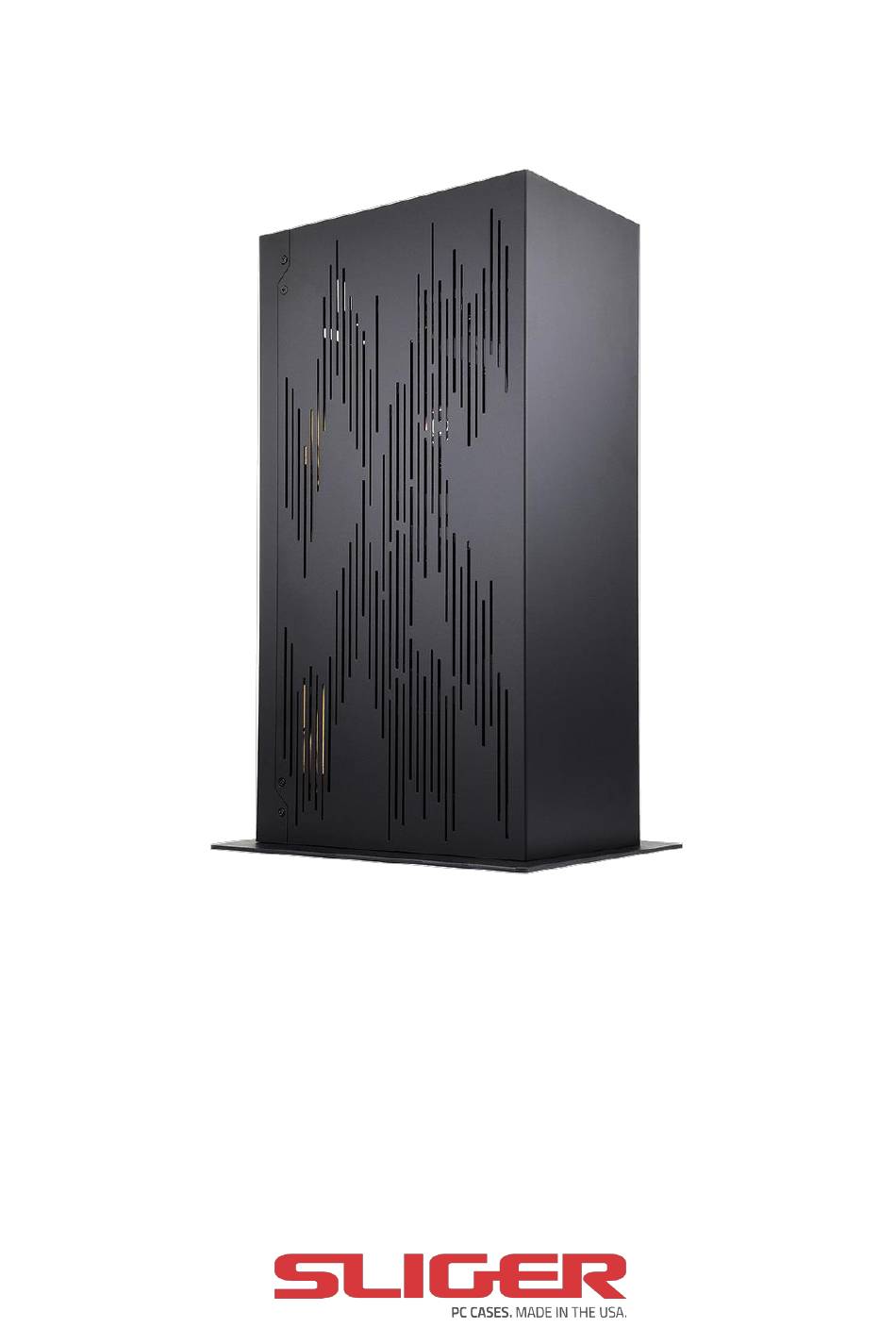

- Page 1 SV590 Manual V1.0...
- Page 2 SCREWS The SV590 comes with a total of 5 different screws types. For the purposes of this guide we will assign a unique color and type number to each of the screw to signify their locations in this guide. GREEN- M3 x 6mm PAN HEAD...
- Page 3 EASY OFF TOP The top cover features tool-less removal via ball-stud mounting points, this allows for convenient access to your motherboard and PCIe card IO ports in place of traditional front panel IO ports. The top panel may be very tight on the first few times on/off.
-
Page 4: Side Panels
SIDE PANELS GPU SIDE REAR CORNER CPU SIDE FRONT CORNER Side panels of the SV590 are held on via 8x 632 x ¼” FLAT HEAD screws. Four per side, two at top and two at bottom. Please pay attention to the correct size screw driver as to not strip the screw... - Page 5 SLIDE OFF PANELS Once the screws are removed, the front/GPU side panel slides of the front, and the rear/CPU side panel slides off the back of the case. Panels may scratch the case frame, please handle with care.
- Page 6 CASE FRAME The rear radiator bracket of the SV590 frame is held on by 6x M3 x 5mm FLAT HEAD screws; 3x per side, 2x at top and one at bottom. You will also need to unscrew the SSD mount bracket which is held on by...
- Page 7 FRAME SEPARATION...
-
Page 8: Power Cord
Once the power cord is installed both into the bracket and into the grommet, the bracket then can be attached to the case via 2x M3 x 5mm FLAT HEAD screws. Note that the SV590 power cord mount adjustable four different positions in order to... -
Page 9: Power Supply
POWER SUPPLY The fan on the power supply is recommended to be positioned with the fan side of the power supply towards the center spine of the case. This orientation will result in better overall system temperatures and lower noise. Once positioned, the SFX PSU can be attached to the PSU Mounting Bracket with up to of the included... - Page 10 MOTHERBOARD Don’t forget to install the power cord and your IO shield first! Some CPU coolers may require a back plate installed before installing the motherboard into the case. It is advised to also check that any back of motherboard M.2 drives are installed before mounting the motherboard.
-
Page 11: Cable Management
CABLE MANAGEMENT Once motherboard power supply are mounted it is recommended to do some cable management before you install any radiators or PCIe cards. Note the CPU and cooler mount back plate standoffs installed. The power switch / LED is routed plugged into motherboard. - Page 12 If installed as intake you will cause your power supply and GPU to run at high temperatures which can cause part failures. The compact design of the case SV590 limits the ways in which dual AIO setups can be installed. The 240mm AIO at left (orange)
- Page 13 If installed as intake you will cause your power supply and GPU to run at high temperatures which can cause part failures. NOTE: All 360mm AIOs or radiators in the SV590 must be mounted with the radiator hoses/ports at bottom. If the 360mm radiator...
- Page 14 REASSEMBLE CASE Mounting the AIO-radiator is the reverse order of page 5 in this guide. The rear radiator mount bracket of the SV590 frame is held on by 2x M3 x 5mm FLAT HEAD screws; 3x per side, 2x at top and one at bottom.
- Page 15 PCIe riser. Slide the card into position, push down into the slot, and then secure the PCIe card bracket with the M3 PAN HEAD screws. If your GPU only has a 2-slot wide PCIe bracket the SV590 includes a single-color matched slot cover.
- Page 16 SSD and HDDs The SV590 3x SSD bracket can be mounted in one of a few positions on either side the case. bracket itself symmetrical on mounting, but asymmetrical on SSD position to allow SSDs to be offset for better...
- Page 17 SSD and HDDs The SV590 also has a section of standard obround venting at the bottom of the case for attachment of 3.5” Hard Drive Disks and 2.5” SSD directly to the frame when stood on end. Two configurations are show, at right with 2x 3.5”...
-
Page 18: Base Plate
BASE PLATE The SV590 removable base plate is attached via 4x 632 X 1/4” FLAT HEAD screws. Alignment of the rectangular cutout in the base plate to the obround vent pattern of the chassis frame before attachment is critical. This cutout in the base plate is here so that screws for mounting SSD,... - Page 19 Technical Specifications Motherboard Mini-ITX (170 x 170mm) CPU Air Coolers Maximum of 55mm tall CPU coolers 1x 360mm radiator 1x 240mm radiator + 1x 120mm radiator Maximum Length: 430mm (or up to 450mm with very little room for cables out rear of top) Liquid Cooler Maximum Width: 149mm Maximum Thickness: 66mm (including fan and radiator thickness)
- Page 20 EN 62368-1:2014. Copy of the original declaration may be obtained at info@density.sk. © 2019 Density Labs s.r.o. and Sliger Designs Inc. All rights reserved. DENSITY logo is a property of Density Labs s.r.o. in Slovakia and/or in other countries. All other trademarks are the property of their respective owners. Product may vary slightly from pictures...
