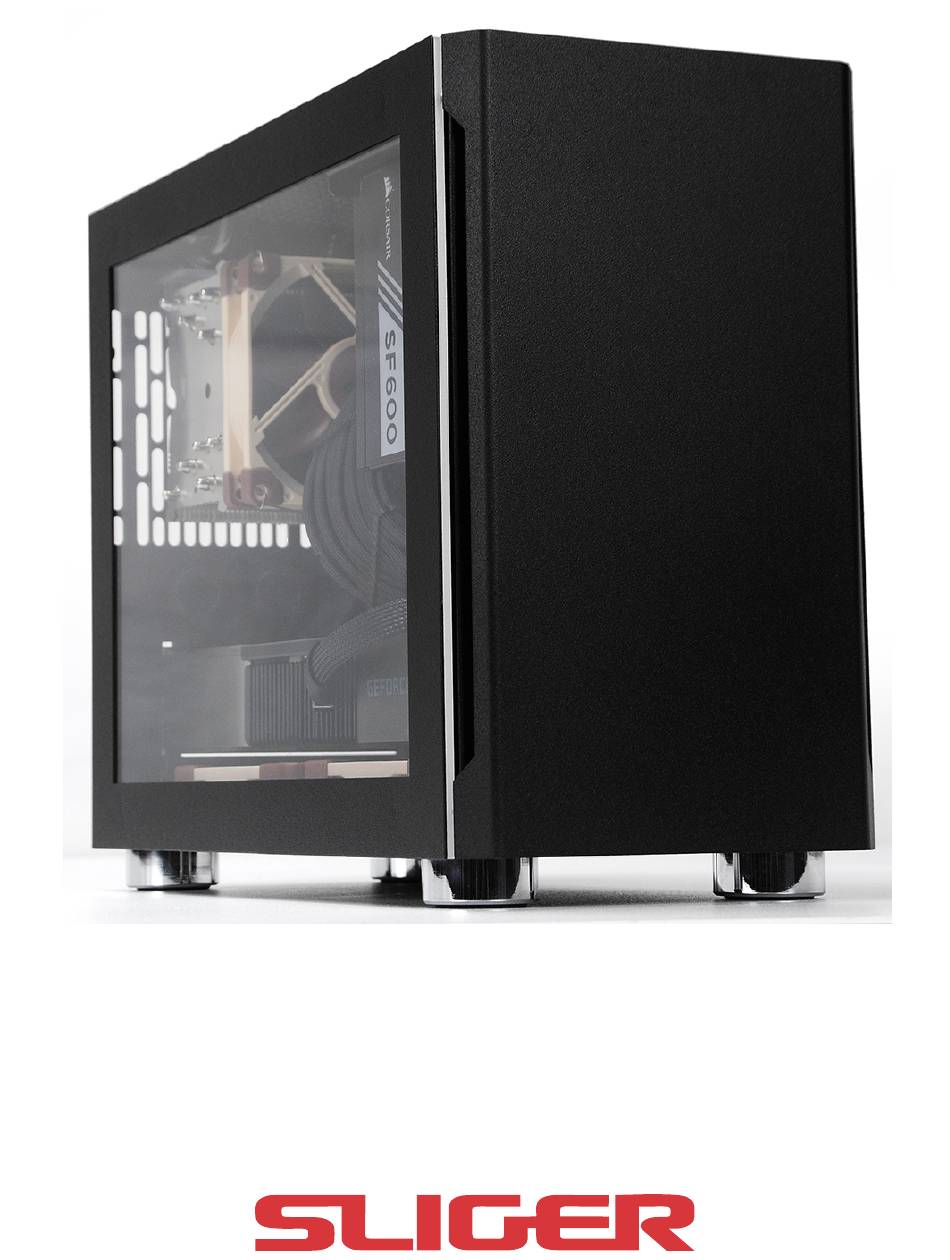

  • Page 1 S 6 1 0 Build Guide...
  • Page 2 SCREWS The S610 comes with a total of 6 different screws. For the purposes of this guide we will assign a unique color to each screw to signify their locations in this guide. GREEN M3 x 6mm PAN HEAD Securing PCIe Cards...
  • Page 3 EASY-OFF PANELS The front, side panels, top and bottom all have tool-less removal via their ball- stud mounting points. Careful, panels may be very tight on the first few times on/off. RE-ASSEMBLY NOTES Side panels are reversible to either side. Front Panel can be installed with either end at top or bottom.
  • Page 4 Power Button Location The S610 has two power button locations allowing you to choose what orientation the case is. Either with the GPU on the bottom of the case, or GPU on the top of the case. Here is the process on removing the power button switch panel and installing it onto the other location.
  • Page 5 Power Button Location Cont. Step 4 Flip over the chassis so the bottom is now the top. Step 5 Tilt the Power Button Panel as shown in the photo and reinsert the panel from inside of the chassis. Step 6 Reuse the 4x M3 x 5mm FLAT HEAD screws to secure panel.
  • Page 6 MOTHERBOARD Be sure to install your IO shield first! Some CPU coolers and AIOs may require a back plate to be installed before installing the motherboard into the case. Once the IO shield is properly installed the motherboard can now be mounted using 4x 6-32 x 1/4”...
  • Page 7 SSD MOUNTING The S610 has a two SDD mounting locations on the SFX PSU Length-wise bracket. Each SSD attaches to the bracket with 2x M3 x 6mm PAN HEAD screws. Be sure to install drives with the SATA power and data connections facing...
  • Page 8: Power Supply Installation

    POWER SUPPLY INSTALLATION The SFX PSU attaches to the bracket with 3x 6-32 x 1/4” HEX HEAD screws. Install the power pig-tail by snaking it through the rear chassis hole and securing it with 2x M3 x 8mm FLAT HEAD screws.
  • Page 9 WIDTH-WISE PSU INSTALLATION The SFX PSU attaches to the Width-wise bracket with 6x 6-32 x 1/4” HEX HEAD screws. Then SFX PSU mounting bracket is secured to the case spine via 4x 6-32 x 1/4” FLAT HEAD screws as shown in the photo. Install the power pig-tail by snaking it through the rear chassis hole and securing it with 2x...
  • Page 10 PCIe CARD The PCIe card is secured with up to 3x M3 x 6mm PAN HEAD screws. NOTE: Depending on your GPU card size. You may have to try different angles and approaches to get it in the chassis and seated into the PCIe slot.
  • Page 11 120/240/280mm AIO INSTALLATION The S610 supports a variety of water-cooling / AIO setups. The three different configurations are; a 120mm AIO installed on the PSU Bracket, a 240mm radiator attached to the side bracket, or a 280mm radiator attached to the side bracket.
  • Page 12 240/280mm AIO INSTALLATION CONT. The S610 side bracket supports either a 240mm or 280mm radiator. Fans are recommend to be mounted on the inside exhausting air out the side panel through the radiator. NOTE: For the 280mm radiator, it is best to set the radiator inside the case after getting the water block secured to the CPU, and then placing the side bracket over the radiator.
  • Page 13 SIDE BRACKET FANS The S610 side bracket can fit 2x 120mm or 140mm fans. 120mm 140mm...
  • Page 14 TOP MOUNTED FANS The S610 can fit 2x 120mm slim 15mm fans mounted on the top of the chassis. NOTE: The case handle bracket can not be used with this configuration.
  • Page 15: Front Fan

    FRONT FAN The S610 supports up to 120MM by 25mm, NOTE: Fan can only when used in conjunction with the "Width-wise" PSU Bracket. 120MM by 25mm...
  • Page 16 REAR FAN The S610 supports either an 80mm or 92mm fan mounted on the rear of the chassis. Use standard KB5 screws to attach the fan. 80mm 92mm...
  • Page 17 SSD MOUNTING The S610 has an optional SSD window bracket. Each SSD attaches to the bracket with 2x M3 x 6mm PAN HEAD screws. The assembly then attaches to the chassis with 2x 6-32 x 1/4” FLAT HEAD screws. NOTE: When using the SSD Window Bracket, You CAN NOT use the side bracket for...
  • Page 18 CASE HANDLE BRACKET The S610 case handle bracket can be mounted in two different locations show in the photos below. They are attached to the chassis with 4x 6-32 x 1/4” FLAT HEAD screws. GPU Bottom Orientation GPU Top Orientation NOTE: A 120mm by 15mm thick fan can be mounted to the case handle bracket.
  • Page 19 CASE HANDLE Case Handle is attached with 2x M4 x 12mm Socket Cap Use the included Allen key to tighten. NOTE: Do not over-torque screws...
