Miller CST 195 114 Owner's Manual

OWNER'S MANUAL
CST Rack Running Gear (195 114)
WARNING
ELECTRIC SHOCK can kill.
•
Do not touch live electrical parts.
•
Turn Off welding power source and input disconnect
device.
•
Disconnect
deenergized supply BEFORE moving welding
power source.
CYLINDERS can explode if damaged.
•
Keep cylinders away from welding and other
electrical circuits.
•
Never touch cylinder with welding electrode.
•
Always secure cylinder to running gear, wall, or
other stationary support.
.
Brackets MUST be installed onto rack before installing casters.
Screws and nuts MUST be installed as shown. If CST rack does
not already have bracket holes in the frame, see page 3 for
template to mark hole locations.
input power conductors

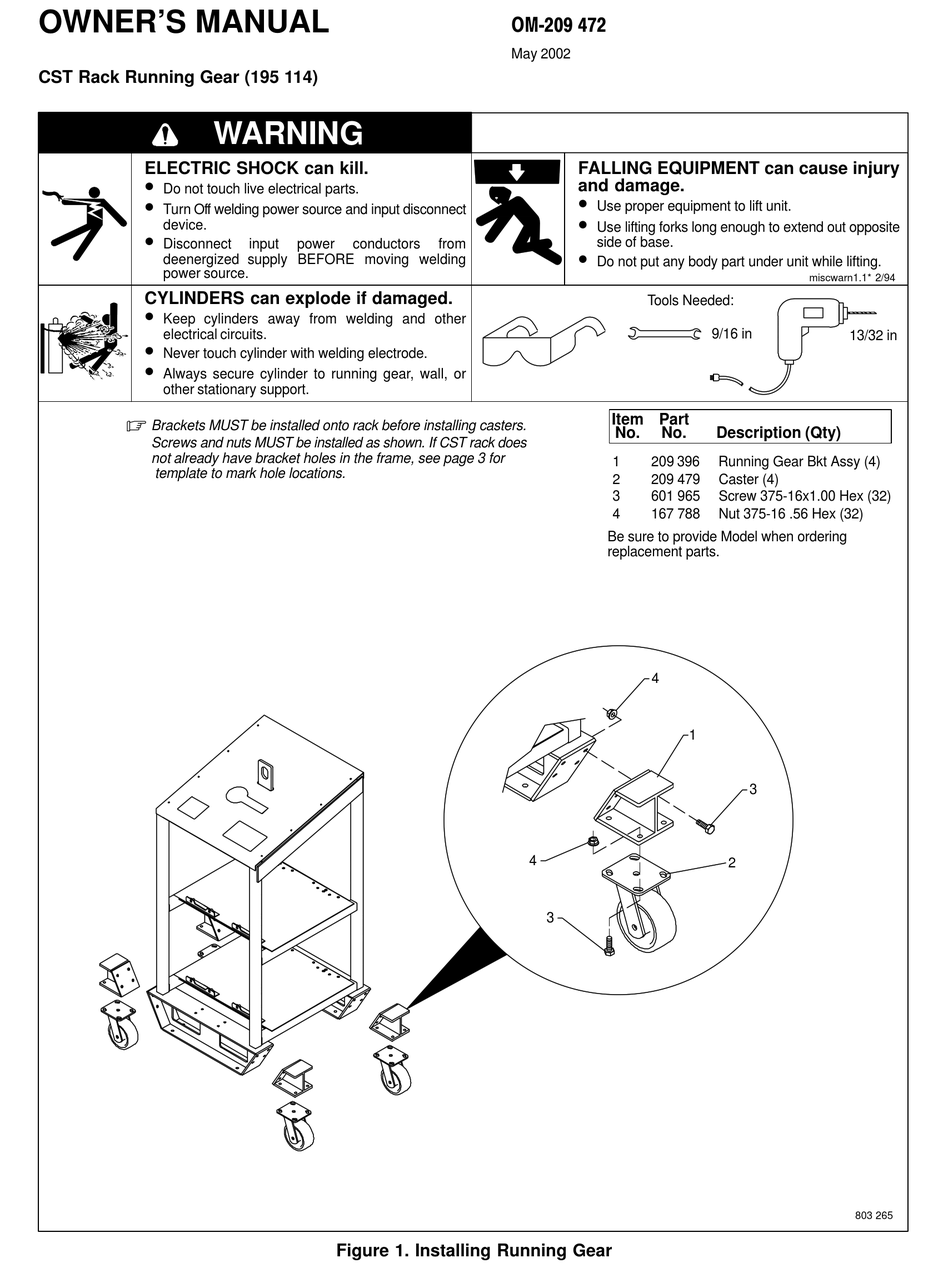

Figure 1. Installing Running Gear
OM 209 472
May 2002
FALLING EQUIPMENT can cause injury
and damage.
•
Use proper equipment to lift unit.
•
Use lifting forks long enough to extend out opposite
side of base.
from
•
Do not put any body part under unit while lifting.
Item
No.
1
2
3
4
Be sure to provide Model when ordering
replacement parts.
4
3
miscwarn1.1* 2/94
Tools Needed:
9/16 in
Part
No. Description (Qty)
209 396 Running Gear Bkt Assy (4)
209 479 Caster (4)
601 965 Screw 375-16x1.00 Hex (32)
167 788 Nut 375-16 .56 Hex (32)
4
1
3
2
13/32 in
803 265
