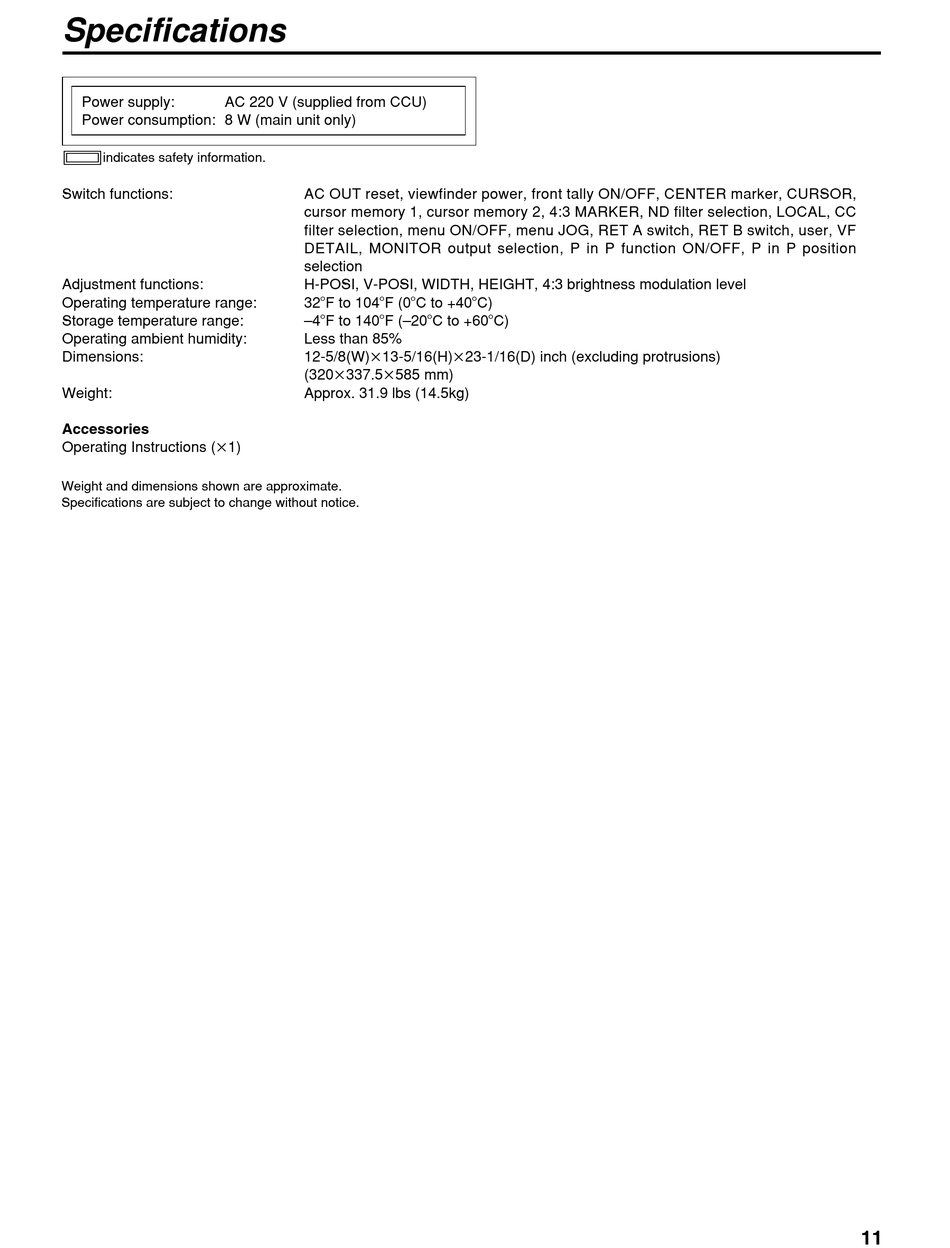

Specifications
Power supply:
AC 220 V (supplied from CCU)
Power consumption: 8 W (main unit only)
1indicates safety information.
Switch functions:
Adjustment functions:
Operating temperature range:
Storage temperature range:
Operating ambient humidity:
Dimensions:
Weight:
Accessories
Operating Instructions (k1)
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
AC OUT reset, viewfinder power, front tally ON/OFF, CENTER marker, CURSOR,
cursor memory 1, cursor memory 2, 4:3 MARKER, ND filter selection, LOCAL, CC
filter selection, menu ON/OFF, menu JOG, RET A switch, RET B switch, user, VF
DETAIL, MONITOR output selection, P in P function ON/OFF, P in P position
selection
H-POSI, V-POSI, WIDTH, HEIGHT, 4:3 brightness modulation level
32oF to 104oF (0oC to +40oC)
–4oF to 140oF (–20oC to +60oC)
Less than 85%
12-5/8(W)k13-5/16(H)k23-1/16(D) inch (excluding protrusions)
(320k337.5k585 mm)
Approx. 31.9 lbs (14.5kg)
11
