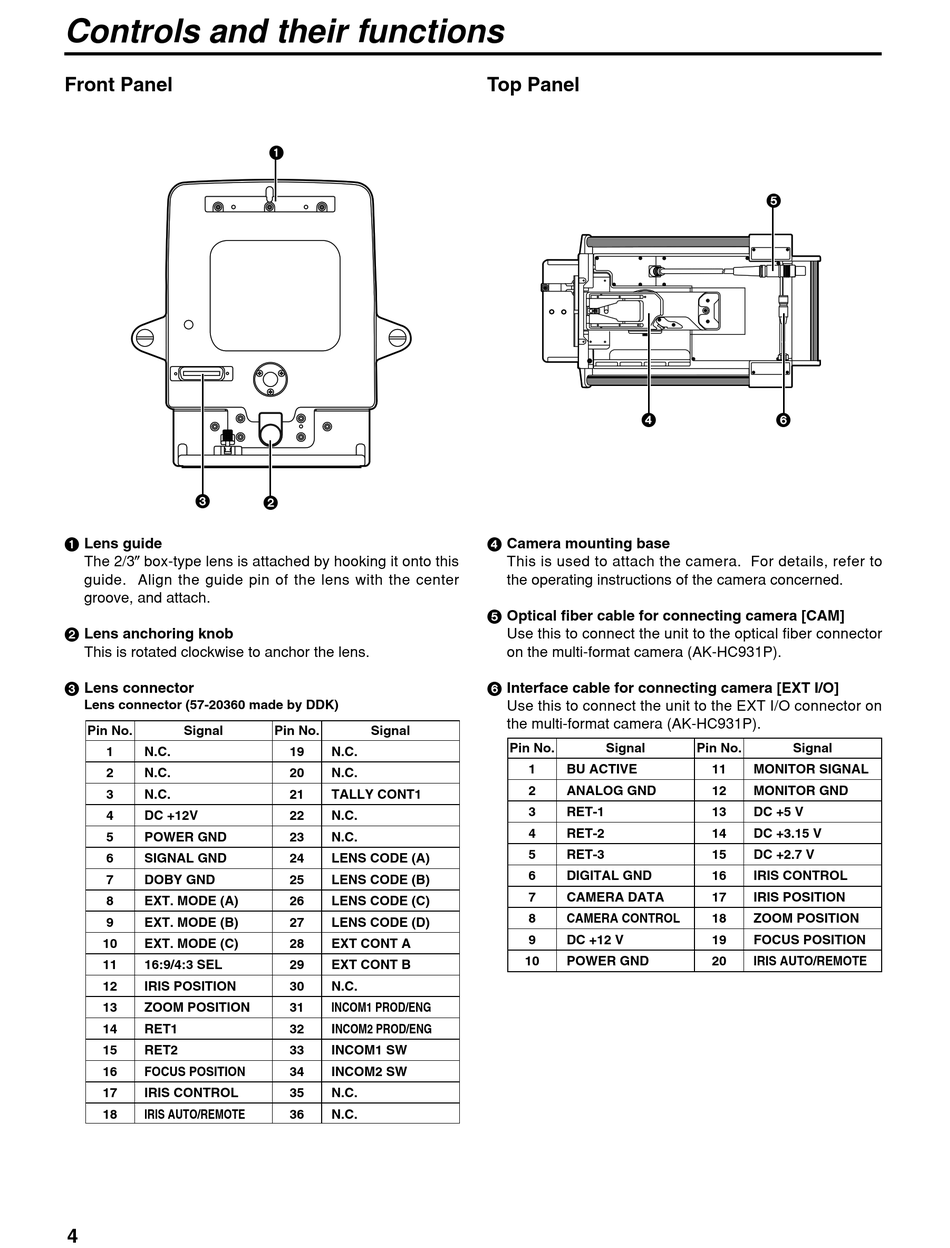

Controls and their functions
Front Panel
3
1 Lens guide
The 2/3z box-type lens is attached by hooking it onto this
guide. Align the guide pin of the lens with the center
groove, and attach.
2 Lens anchoring knob
This is rotated clockwise to anchor the lens.
3 Lens connector
Lens connector (57-20360 made by DDK)
Pin No.
Signal
1
N.C.
2
N.C.
3
N.C.
4
DC +12V
5
POWER GND
6
SIGNAL GND
7
DOBY GND
8
EXT. MODE (A)
9
EXT. MODE (B)
10
EXT. MODE (C)
11
16:9/4:3 SEL
12
IRIS POSITION
13
ZOOM POSITION
14
RET1
15
RET2
16
FOCUS POSITION
17
IRIS CONTROL
18
IRIS AUTO/REMOTE
4
1
2
Pin No.
Signal
19
N.C.
20
N.C.
21
TALLY CONT1
22
N.C.
23
N.C.
24
LENS CODE (A)
25
LENS CODE (B)
26
LENS CODE (C)
27
LENS CODE (D)
28
EXT CONT A
29
EXT CONT B
30
N.C.
31
INCOM1 PROD/ENG
32
INCOM2 PROD/ENG
33
INCOM1 SW
34
INCOM2 SW
35
N.C.
36
N.C.
Top Panel
4
4 Camera mounting base
This is used to attach the camera. For details, refer to
the operating instructions of the camera concerned.
5 Optical fiber cable for connecting camera [CAM]
Use this to connect the unit to the optical fiber connector
on the multi-format camera (AK-HC931P).
6 Interface cable for connecting camera [EXT I/O]
Use this to connect the unit to the EXT I/O connector on
the multi-format camera (AK-HC931P).
Pin No.
Signal
1
BU ACTIVE
2
ANALOG GND
3
RET-1
4
RET-2
5
RET-3
6
DIGITAL GND
7
CAMERA DATA
8
CAMERA CONTROL
9
DC +12 V
10
POWER GND
5
6
Pin No.
Signal
11
MONITOR SIGNAL
12
MONITOR GND
13
DC +5 V
14
DC +3.15 V
15
DC +2.7 V
16
IRIS CONTROL
17
IRIS POSITION
18
ZOOM POSITION
19
FOCUS POSITION
20
IRIS AUTO/REMOTE
