IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

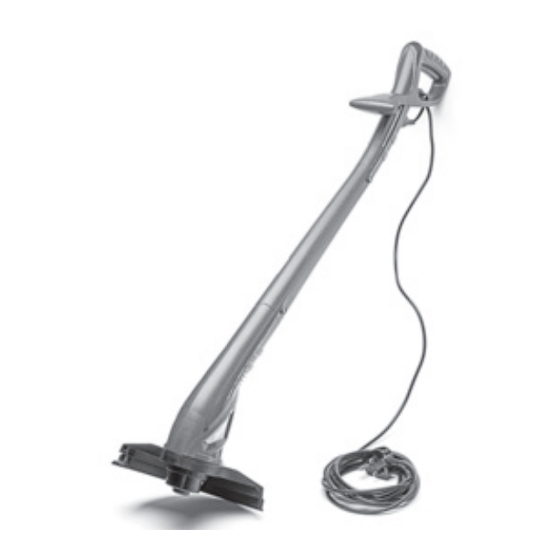

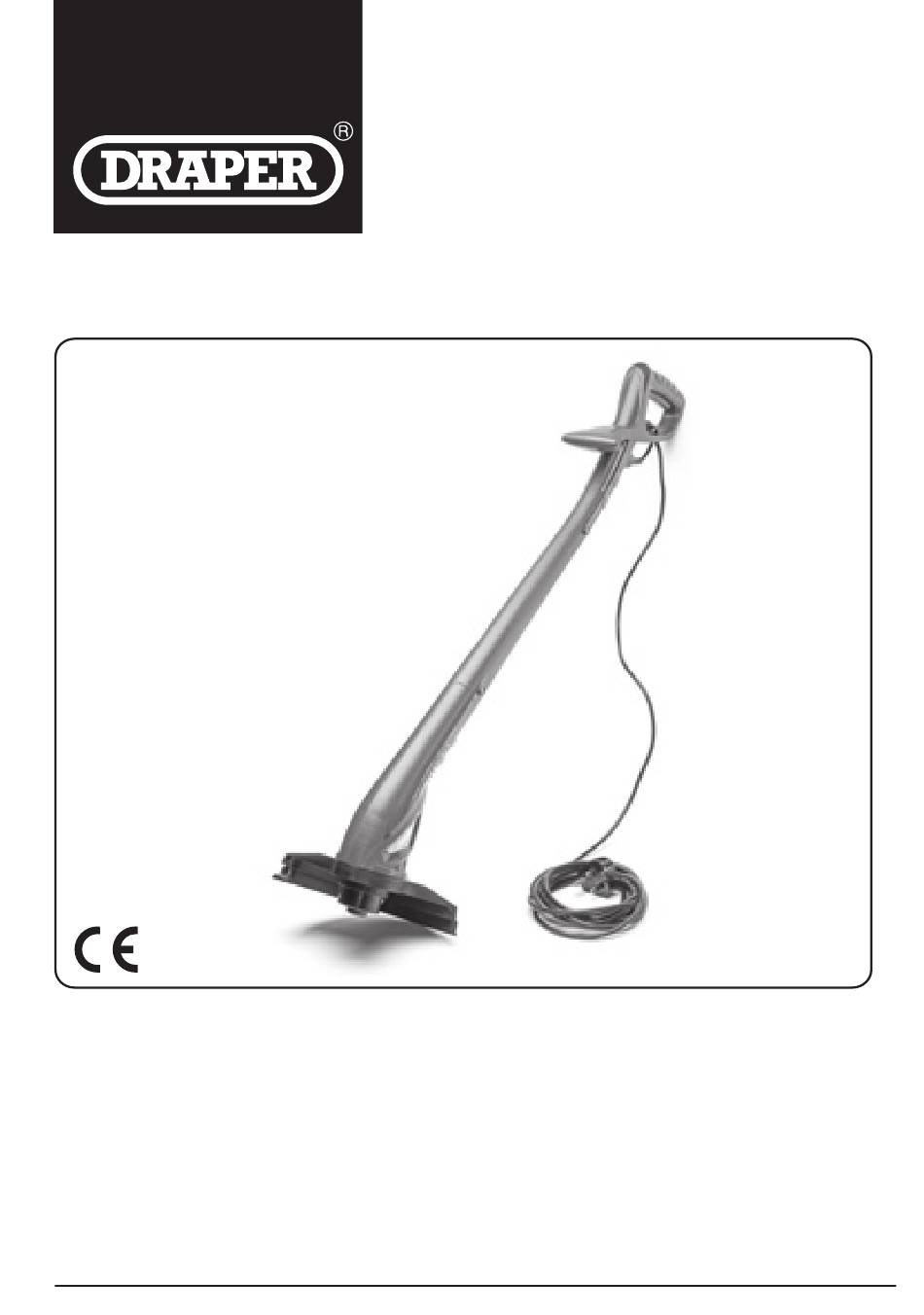

250W
GRASS
TRIMMER
45922

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45922 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 45922

Summary of Contents for Draper 45922

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY .....................2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ...................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION....................5 HANDLING & STORAGE..................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE......6-8 SPECIFIC SAFETY INSTRUCTION FOR GRASS TRIMMER USE......8 CONNECTION TO THE POWER SUPPLY ............9 TECHNICAL DESCRIPTION...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    This machine is used for cutting grass in hard-to-reach areas - around garden furniture for example, or tidying around borders where a lawn mower can not go. Any other application is considered mis-use. 4.2 SPECIFICATION Stock no ..........................45922 Part no ......................... . . GT2(D) Rated voltage ......................230V~50Hz Rated input ........................250W Revolutions per minute (no load) ................12,000min...

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.
  • Page 7 HEALTH & SAFETY INFORMATION Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if not suitably protected against. If the work involving the power tool creates dust or fumes; wear a dust mask. Vibration to the hand, caused by operating some tools for longer periods must be protected against.

  • Page 8: Specific Safety Instruction For Grass Trimmer Use

    HEALTH & SAFETY INFORMATION Have this tool repaired by a qualified person. This tool is designed to confirm to the relevant international and local standards and as such should be maintained and repaired by someone qualified; using only original parts supplied by the manufacturer: This will ensure the tool remains safe to use.

  • Page 9: Connection To The Power Supply

    HEALTH & SAFETY INFORMATION 5.3 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. Caution: Risk of electric shock. Do not open. This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse fitted is marked on the pin face of the plug.

  • Page 10: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION On/off trigger switch. Cable restraint. Housing connection. Moulded plug & cable. Double line spool. Spare spool holder. Guard.

  • Page 11: Unpacking & Checking 7.1 Packaging

    Lay the contents out and check them against the parts shown on page 10. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 12: Preparing The Grass Trimmer

    PREPARING THE GRASS TRIMMER NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 8.1 HOUSING CONNECTION - FIGS. 1 - 3a FIG.1 FIG.2 FIG.2a FIG.3 FIG.3a 8.2 GUARD ATTACHMENT - FIG. 4 FIG.4...

  • Page 13: Operating The Grass Trimmer

    OPERATING THE GRASS TRIMMER 9.1 ON/OFF TRIGGER SWITCH - FIG. 5 Pull the trigger to start the machine, release the trigger to stop the machine. NOTE: Ensure the cutting head is off the ground when starting. FIG.5 WARNING: Use of this product can pose a danger to wildlife.

  • Page 14: General Cutting

    OPERATING THE GRASS TRIMMER 9.3 GENERAL CUTTING...

  • Page 15: Maintenance

    10. MAINTENANCE 10.1 MAINTENANCE Remove the plug from the socket before carrying out adjustment, service or maintenance. Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your machine in good working condition. For this reason avoid the air inlets from becoming blocked.

  • Page 16: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS WEEE Keep hands away Do not dispose of Waste Electrical from blades and & Electronic Equipment in with moving parts. domestic rubbish Remove plug before Class II construction maintenance. (Double insulated) Wear protective gloves. Warning! Wear suitable eye/face protection.

  • Page 17: Disposal

    12. DISPOSAL 12.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDKC1215...
