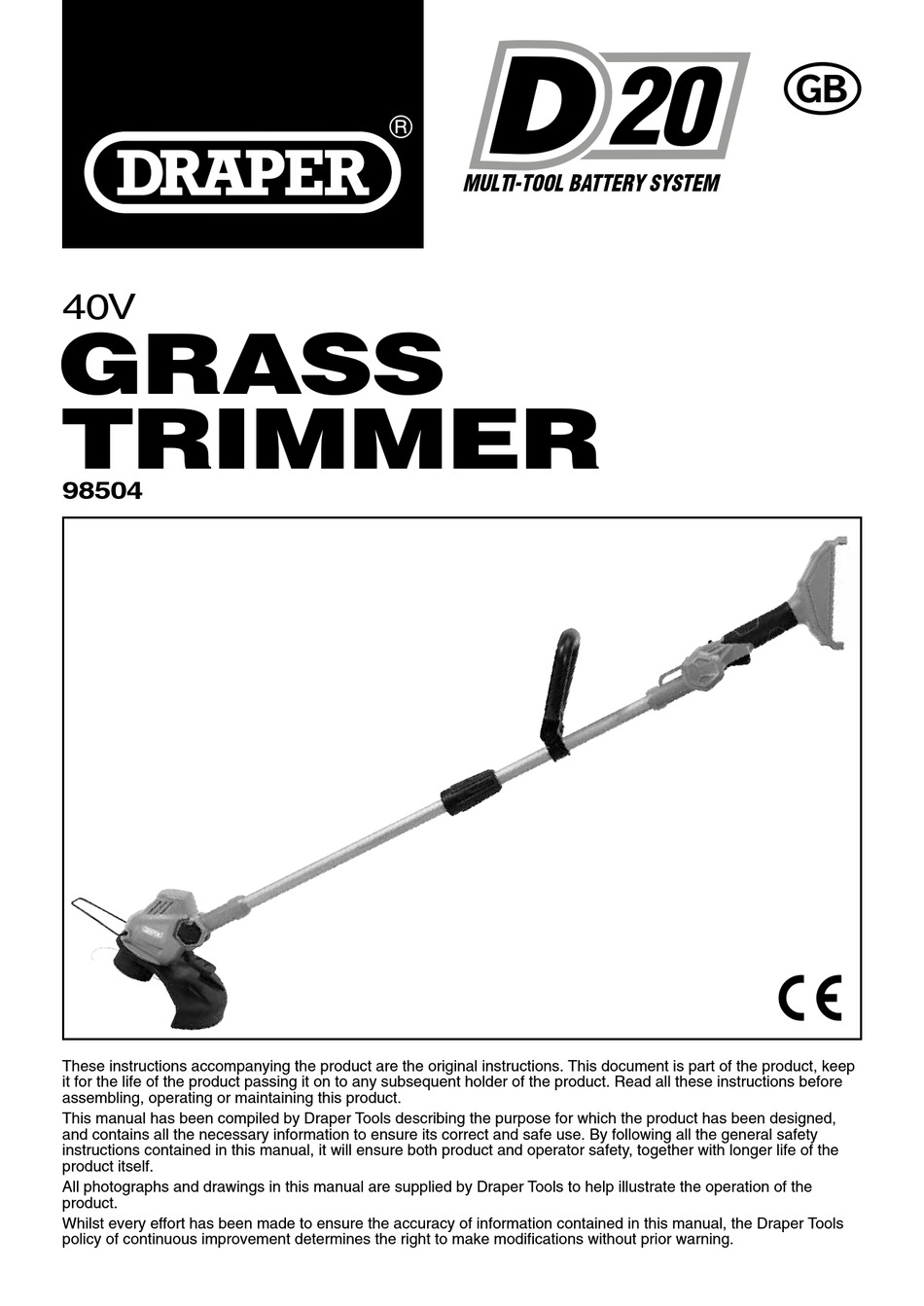

MULTI-TOOL BATTERY SYSTEM
40V
GRASS
TRIMMER
98504
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper D20G
Summary of Contents for Draper D20G
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE .................. -
Page 4: Warranty 3.1 Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Introduction
Any application other than that it was intended for, is considered misuse. SPECIFICATION Stock No........................... 98504 Part No..........................D20G/GT40 Revolutions per minute (no load)..................9000r/min Cutting diameter Ø ........................ 290mm Nylon line: Spool........................ -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully. -
Page 7: Additional Safety Instructions For Cordless Hedge Trimmers
HEALTH AND SAFETY INFORMATION before making any adjustments, carrying out maintenance operations or just finishing using the tool. Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine. -
Page 8: Residual Risk
HEALTH AND SAFETY INFORMATION RESIDUAL RISK Important: Although the safety instructions and operating manuals for our tools contain extensive instructions of safe working with power tools, every power tool involves a certain residual risk which can not be completely excluded by safety mechanisms. Power tools must therefore always be operated with caution! –... -
Page 9: Technical Description
TECHNICAL DESCRIPTION IDENTIFICATION (11) (10) (1) Double line spool. (8) Cutting head angle adjustment lever. (2) Edge guard. (9) Guard. (3) Line length trimming blade. (10) Spool housing. (4) Telescopic height adjustment. (11) Battery compartment. (5) Auxiliary handle. (6) Trigger safety lock. (7) ON/OFF trigger switch. -
Page 10: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 11: Assembly
ASSEMBLY ATTACH THE AUXILIARY HANDLE – FIGS.1 – 2 (5.1) − Align the auxiliary handle (5) with the bracket (5.1) mounted on the handle shaft. − Thread the auxiliary handle locking bolt (5.2) into the hole in the auxiliary handle and tighten. ATTACH THE SAFETY GUARD –... -
Page 12: Preparing The Grass Trimmer
Figs. 1 – 2 and the procedures set out below, illustrate an example of 2 × D20 4.0Ah battery packs (Draper stock No.55898) (12) used in conjunction with the D20 fast battery charger (Draper stock No.55913) (13). For further... -
Page 13: Battery Pack Protection Features
PREPARING THE GRASS TRIMMER To remove the battery from the battery charger: Charge level Amount of charge – Supporting the battery charger with hand, pull indicator remaining out the battery from the battery charger. Caution: If the battery charger has been in 0 –... -
Page 14: Operation
10. OPERATION 10.1 HEIGHT ADJUSTMENT – FIG.11 − To unlock the telescopic height adjustment (4) turn it in the direction indicated to unlock. − Adjust the overall length to the most comfortable operating position. − Turn the telescopic height adjustment in the opposite direction to secure in place. -
Page 15: Automatic Cutting Line Feed
10. OPERATION 10.5 AUTOMATIC CUTTING LINE FEED – FIG.15 The grass trimmer is equipped with an automatic line-feed system. On switching on a length of cutting line is fed out accordingly. A noticeable noise will be heard when the rotating twin lines make contact with the cutting blade (3) situated on the underside of the guard. -
Page 16: Switching On
10. OPERATION 10.7 SWITCHING ON – FIG.18 Note: Ensure the cutting head is off the ground before switching on. − For your safety this grass trimmer is designed with a safety starting switch (6). − The safety starting switch is a button that must be applied before the ON/OFF trigger (7) can be operated. -
Page 17: Maintenance And Troubleshooting
11. MAINTENANCE AND TROUBLESHOOTING 11.1 REPLACING THE TRIMMING LINES − Remove the spool cap − Remove the old spool. − Place a new spool into the cutting head − Release one line from the cleat and feed the end through the eyelet. Repeat for the second cutting line. -
Page 18: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Read the instruction manual. Protect from rain. WEEE – Waste Electrical & Electronic Equipment. Wear suitable face protection. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. Continuous A-Weighted Sound Wear suitable ear protection. - Page 19 NOTES – 19 –...
- Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
