Draper 32319 Instructions Manual

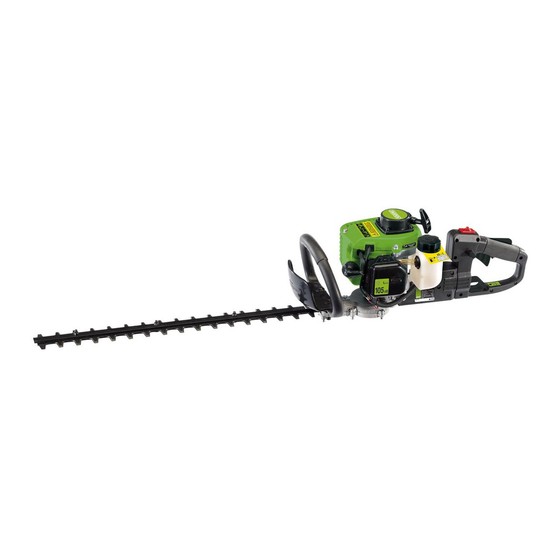

Petrol hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

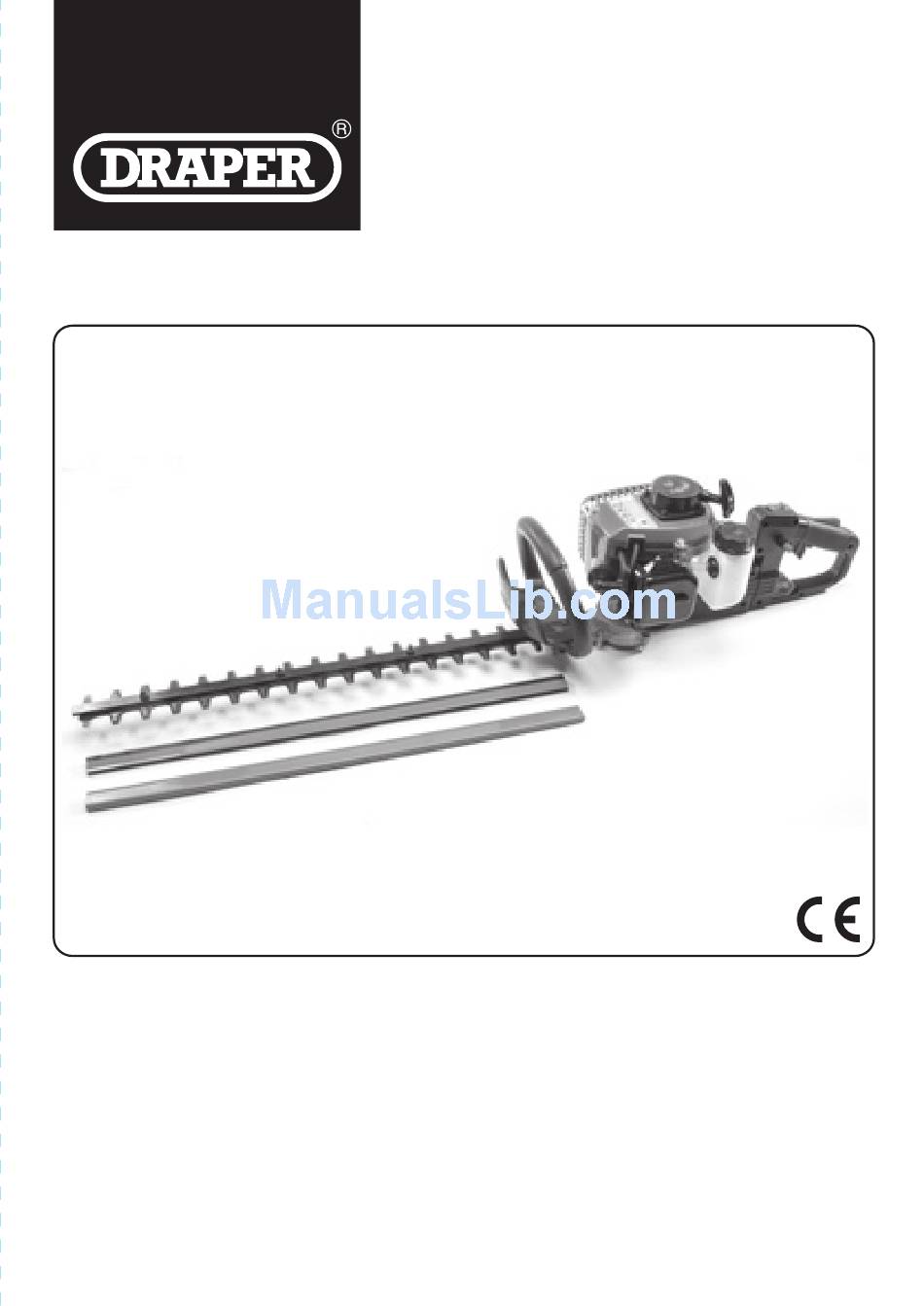

PETROL
HEDGE
TRIMMER
32319

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32319 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper 32319

Summary of Contents for Draper 32319

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 4.3 HANDLING AND STORAGE ..................

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    4.1 SCOPE Cutting and trimming of hedges, bushes and ornamental shrubs in the domestic sector only. All other uses are expressly excluded. 4.2 SPECIFICATION Stock No: ..........................32319 Part No: ..........................HTP256 Engine displacement ......................22.5cc Maximum engine performance ....................0.80kW Maximum engine speed .....................

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION 5.1 SPECIFIC SAFETY INSTRUCTIONS FOR PETROL HEDGE TRIMMERS Warning! For your safety, please read and understand these instructions before assembling, operating or maintaining this machine. – Never attempt to modify or operate a modified machine. Fully assemble this machine, including all relevant guards, before operating.

  • Page 7: Health And Safety Information Concerning The Use Of Fuels

    HEALTH AND SAFETY INFORMATION 5.2 HEALTH AND SAFETY INFORMATION CONCERNING THE USE OF FUELS Fuels are inflammable and explosive. Reduce the risk of explosion and fire by: – Turning off and cooling the motor down before filling the tank with fuel. –...

  • Page 8: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Cutting blade. Throttle trigger. Blade comb. Primer bulb. Choke lever. Hand guard. Air filter cover. Front handle. Spark plug cap. Fuel tank. Recoil starter cord. Fuel tank cap. Lock-on button. Blade covers. Handle rotation button. ON/OFF switch. Rear handle.

  • Page 9: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.

  • Page 10: Preparing The Hedge Trimmer

    PREPARING THE HEDGE TRIMMER 8.1 TRAINING a) Become familiar with the owner’s manual before attempting to operate the equipment. b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator. c) Never work while people, especially children, or pets are nearby.

  • Page 11: Fuelling

    PREPARING THE HEDGE TRIMMER 8.3 FUELLING – FIGS. 1 – 2 This hedge trimmer is equipped with a 2 stroke air cooled petrol engine. 25 : 1 This type of engine requires a mixture of fuel and oil 25ml to perform and function. Failure to use the correct oil, fuel or mixture ratio will cause permanent damage to the engine.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS 9.1 COLD STARTING THE ENGINE – FIGS. 3 – 6 Rest the hedge trimmer on a stable surface. Press the ON/OFF switch to the ‘I’ (ON) position. Fig.3 Slide the choke lever forward to the (closed) position. Pump the primer ten times until fuel is visible in the bubble.

  • Page 13: Warm Starting The Engine

    OPERATING INSTRUCTIONS Once the engine tries to fire, move the choke to (open) position. Note: If there is a strong smell of fuel this indicates that the engine may be flooded. Wait a few minutes before attempting to restart the machine as if the engine were warm i.e.

  • Page 14: Stopping The Engine

    OPERATING INSTRUCTIONS 9.3 STOPPING THE ENGINE – FIG. 9 To stop the engine, move the ON/OFF switch to the “stop” position. Note: If the hedge trimmer has been running at full speed for a prolonged period allow the trimmer to idle for a few minutes before stopping the engine.

  • Page 15: Holding The Hedge Trimmer

    OPERATING INSTRUCTIONS 9.6 HOLDING THE HEDGE Fig.13 TRIMMER – FIG.13 – Do not be afraid to hold the hedge trimmer power head close in to the body. In this position the weight of the trimmer will be easy to bear. –...

  • Page 16: Hedge Cutting Techniques

    OPERATING INSTRUCTIONS 9.7 HEDGE CUTTING TECHNIQUES Fig.14a Vertical Cutting – Fig.14a The best practice is to cut the front and side of a hedge first, before finishing with the top. – Set the cutting head at 90º either left or right as applicable for the cut required.

  • Page 17: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING Regular maintenance tasks must be carried out at specific intervals to retain the engine's performance. 10.1 CLEANING THE AIR FILTER (FIGS.15 – 17) A dirty, clogged air filter will restrict the air flow in to the engine and will cause rough running. It will increase fuel consumption and may result in starting problems.

  • Page 18: Cleaning And Lubrication

    10. MAINTENANCE AND TROUBLESHOOTING Using the spark plug spanner supplied , turn the spark plug anticlockwise to remove it. Clean the spark plug and check the electrode gap. Maintain a gap of 0.6 to 0.7mm. Attention: The spark plug should be replaced every 60 hours of machine use or annually during a 0.6mm to service.

  • Page 19: Troubleshooting Guide

    10. MAINTENANCE AND TROUBLESHOOTING 10.4 TROUBLESHOOTING GUIDE Fault Possible cause Remedy Hedge trimmer does 1. No fuel in the tank. 1. Refuel tank. not start. 2. The STOP/START switch 2. Put the switch in the START is in the STOP position. position.

  • Page 20: Cleaning And Maintenance Overview

    INTRODUCTION 10.5 CLEANING AND MAINTENANCE OVERVIEW Prior to every start. 1. Check/clean/replace air filter element. 1. See section 10.1. 2. Check the pull starter for damage to the 2. Visual inspection/testing. starter . 3. Checking threaded connections for 3. Visual inspection/testing. tightness.

  • Page 21: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Single value noise marking. (Maximum declared Fuel/2-stroke oil mixture ratio. A-Weighted sound power level in decibels). Warning! Strictly no naked flames or Wear suitable protective clothing smoking near the appliance. and suitable gloves. Warning! Choke closed.

  • Page 22: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 23 NOTES - 23 -...
  • Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
