5/3/2018
Branches
INSTALLATION
Branches requires a -12V / +12V power supply (2x5 pin connector). The ribbon cable connector must be
aligned so that the red stripe of the ribbon cable (-12V) is on the same side of the module's power header
as the "Red stripe" marking on the board. The power consumption is 10 mA on the +12V rail and 1 mA on
the -12V rail.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
This device meets the requirements of the following standards: EN55032, EN55103-2,
EN61000-3-2, EN61000-3-3, EN62311.
CONTROLS

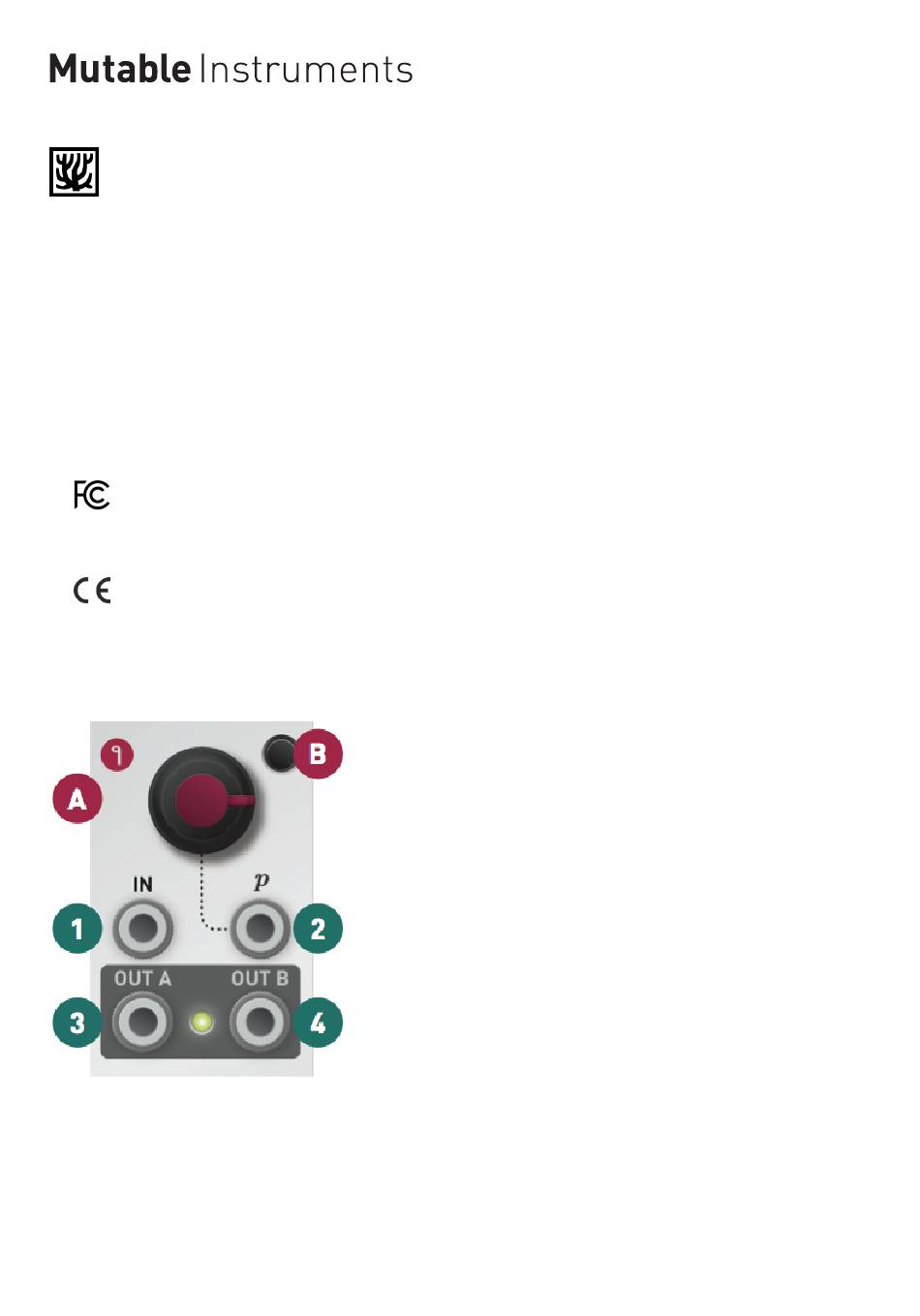

Branches consists of two identical sections called Bernoulli gates. An internal connection routes the input
of section 1 to section 2 – unless a jack is connected into the input of section 2.
The Bernoulli gate
Upon receiving a trigger on its
trigger is sent to
output A
https://mutable-instruments.net/modules/branches/manual/
Mutable Instruments | Branches
User manual
IN
input (1), the module tosses a virtual coin: if the outcome is heads, the
(3); if the outcome is tails, the trigger is sent to
output B
(4).
1/2
