Installation
Ripples requires a -12V /
+12V power supply (2x5 pin
connector). The ribbon cable
connector must be aligned
so that the red stripe of the
ribbon cable (-12V) is on the
same side of the module's
power header as the "Red
stripe" marking on the
board.
The power consumption is:
+12V: 35 mA; -12V: 35 mA
Calibration
Adjust the trimmer on the
back of the module so that
the tone emitted by the filter
(when it self-oscillates)
tracks a 1V/oct CV sent to
the FREQ input.
Online manual
Ripples
and help
The full manual can be
Liquid filter
found online at
mutable-instruments.net/
modules/ripples/manual
For help and discussions,
head to
mutable-instruments.net/
forum/
Advertisement
Related Manuals for Mutable Instruments Ripples
Summary of Contents for Mutable Instruments Ripples
- Page 1 Installation Ripples requires a -12V / +12V power supply (2x5 pin connector). The ribbon cable connector must be aligned so that the red stripe of the ribbon cable (-12V) is on the same side of the module’s power header as the “Red stripe”...
-

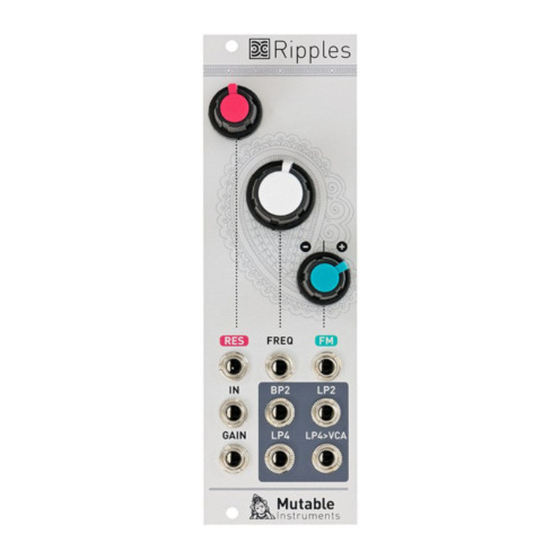

Page 2: Front Panel
Front panel Controls Resonance. Ripples can be set to self-oscillate with a high resonance setting. Frequency. The Cutoff frequency of the filter. FM Attenuverter. Adjusts the amount and polarity of frequency modulation from the FM input. Inputs and Outputs CV inputs for Resonance, Frequency (with 1V/Oct scale) and FM.
