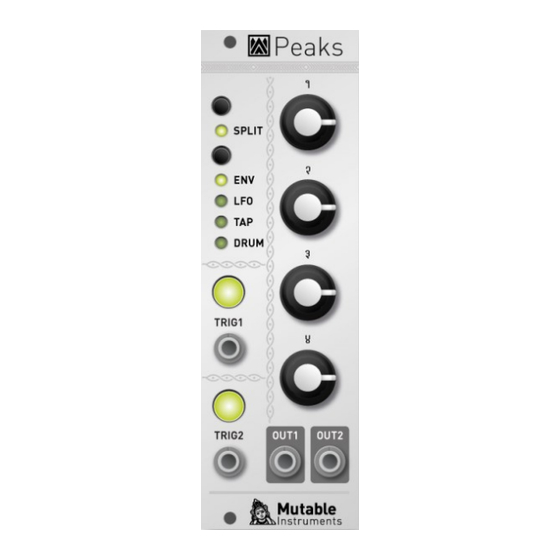

Mutable Instruments Peaks User Manual

LFO: Low frequency oscillator
5 waveforms are provided, each of them continously
variable:
• Sine with wavefolding
• Triangle with controllable ascending/descending ratio
• Square with duty cycle control
• Stepped triangle with variable number of steps
• Clocked noise with interpolation control
Knob TWIN & EXPERT mode SPLIT mode
1 Frequency Ch. 1 Frequency
2 Waveform Ch. 1 Waveform
3 Waveshape variation Ch. 2 Frequency
4 Initial phase Ch. 2 Waveform
The trigger resets the LFO to the phase set by the
"initial phase" control.
TAP: Tempo synchronized LFO
This function is similar to the LFO except that the fre-
quency is synchronized to the rate of the input trigger
signals, or to the "taps" on the buttons (G) and (H).
Knob TWIN & EXPERT mode SPLIT mode
1 Amplitude Ch. 1 Waveform
2 Waveform Ch. 1 Shape
3 Waveshape variation Ch. 2 Waveform
4 Initial phase Ch. 2 Shape
DRUM: Analog modeling drums
Channel 1 is a modeled analog bass drum, and channel
2 a modeled snare drum.
Knob TWIN & EXPERT mode SPLIT mode
1 Frequency BD attack
2 Frequency modulation/ BD decay
tone
3 Attack/noisiness SD tone
4 Decay SD noisiness
Note: With extreme noisiness and tone settings, the
snare drum turns into a hi-hat.
Tips
Hold the function selection switch (F) for 1 second to
unlock 4 new secret functions. Repeat this operation to
go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. go back to the 4 standard functions. Peaks
Dual trigger converter
