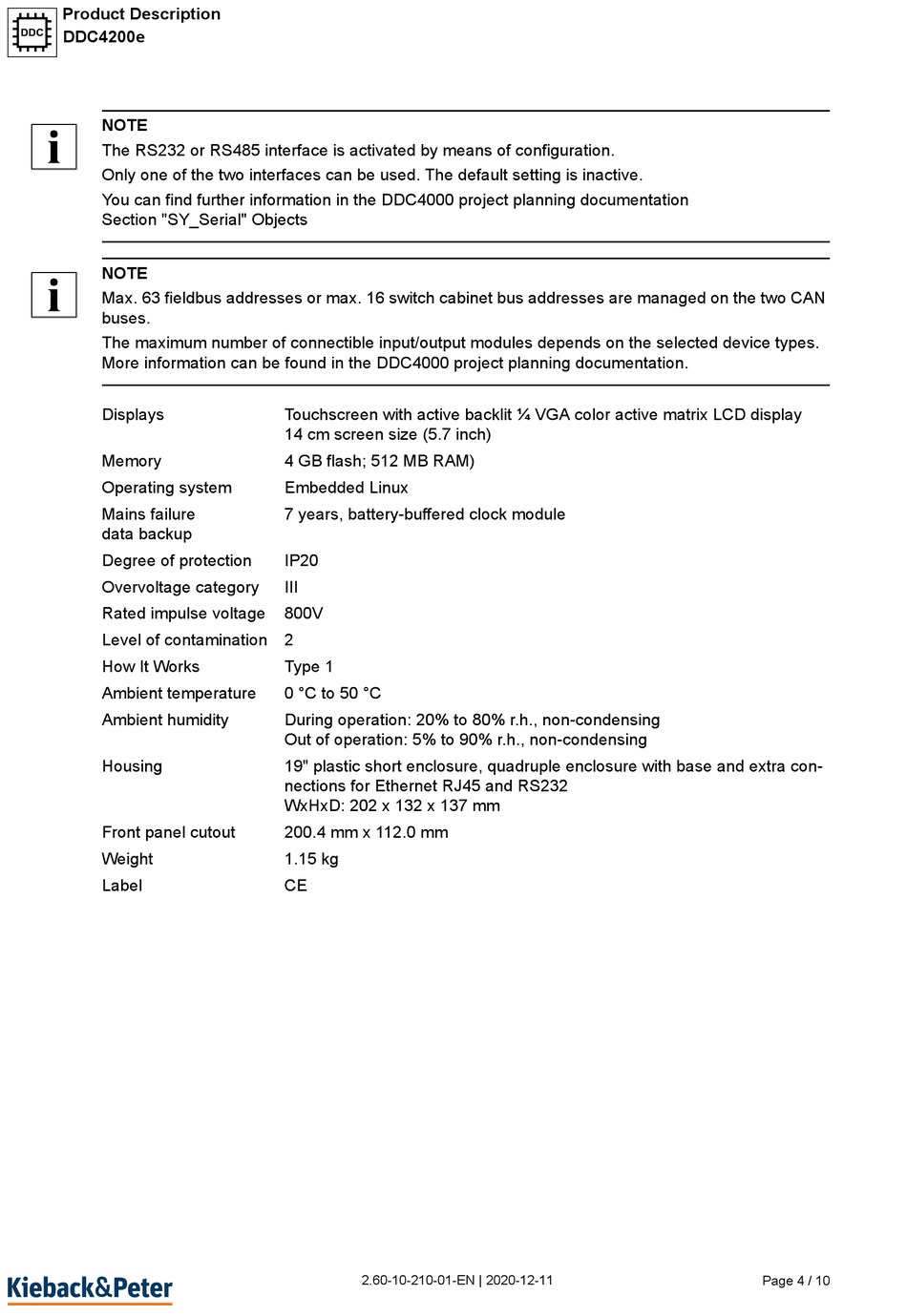

Kieback&Peter DDC4200e Instruction Manual page 4

J
Product Description
DDC4200e
NOTE
The RS232 or RS485 interface is activated by means of configuration.
Only one of the two interfaces can be used. The default setting is inactive.
You can find further information in the DDC4000 project planning documentation
Section "SY_Serial" Objects
NOTE
Max. 63 fieldbus addresses or max. 16 switch cabinet bus addresses are managed on the two CAN
buses.
The maximum number of connectible input/output modules depends on the selected device types.
More information can be found in the DDC4000 project planning documentation.
Displays
Memory
Operating system
Mains failure
data backup
Degree of protection
Overvoltage category
Rated impulse voltage
Level of contamination 2
How It Works
Ambient temperature
Ambient humidity
Housing
Front panel cutout
Weight
Label
Touchscreen with active backlit ¼ VGA color active matrix LCD display
14 cm screen size (5.7 inch)
4 GB flash; 512 MB RAM)
Embedded Linux
7 years, battery-buffered clock module
IP20
III
800V
Type 1
0 °C to 50 °C
During operation: 20% to 80% r.h., non-condensing
Out of operation: 5% to 90% r.h., non-condensing
19" plastic short enclosure, quadruple enclosure with base and extra con-
nections for Ethernet RJ45 and RS232
WxHxD: 202 x 132 x 137 mm
200.4 mm x 112.0 mm
1.15 kg
CE
