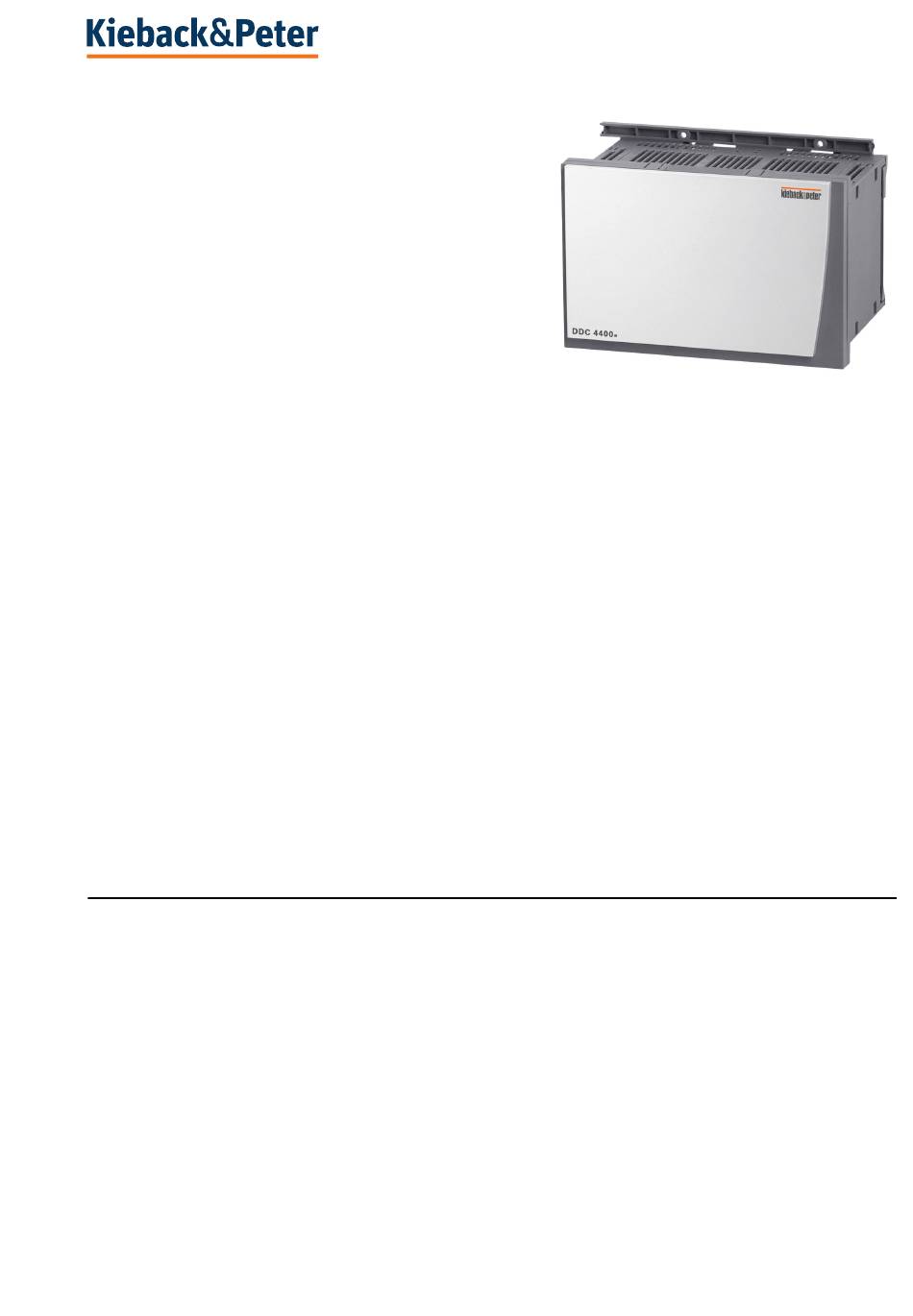

DDC4400e Controller
Application
Controller with BACnet communication
Stand-alone station for closed-loop and open-loop control,
optimizing and monitoring functions
Customizable plain text for every parameter
Direct connection of the input and output signals
12 DDC closed-loop control plants for ventilation or 24 DDC
closed-loop control plants for heating, can be expanded with
software objects
PLC functions, free and as fixed macros (hardware objects)
Software objects for increasing energy efficiency and energy
optimization
Communication
-
Via TCP/IP, Ethernet cable (min. Cat5, 10/100 Mbit) to enable use
of the existing infrastructure
-
Built-in remote control via PC with browser without additional software or mobile end devices
-
Native BACnet in accordance with DIN EN ISO 16484-5, BACnet IP and BACnet MS/TP
-
Up to 99 DDC4000 automation stations with bidirectional data exchange
2 buses (CAN-based), configurable for switch cabinet bus or fieldbus for connecting fieldbus modules (FBM/
FBU or RBW4xxx) or switch cabinet bus modules BMD/BMA or SBM
Error message memory, event logging with date and time, incoming and outgoing messages are saved
Forwards messages to printers, fax, GSM-SMS and e-mail.
Trend value memory for max. 100.000 trend points.
Configuration using modern, effective object structure, considerably reducing project planning time.
Embedded Linux operating system for proven, stable use
Backward-compatible with Kieback&Peter DDC3000 automation system
Constant system monitoring of the bus communication and all connected DDC components, bidirectional data
exchange possible.
Content
Important Information on Product Safety ...............................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Dimensions ..........................................................................................................................................................6
Installation Dimensions........................................................................................................................................6
Accessories (included in delivery) .......................................................................................................................6
Accessories (not included in delivery) .................................................................................................................6
Connection.............................................................................................................................................................7
Installation..............................................................................................................................................................9
Mounting ..............................................................................................................................................................10
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
J
Product description
DDC4400e
Page
2.60-10.215-01-EN | 2020-12-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDC4400e and is the answer not in the manual?

Questions and answers

Summary of Contents for Kieback&Peter DDC4400e

  • Page 1: Table Of Contents

    Product description DDC4400e DDC4400e Controller Application Controller with BACnet communication ■ Stand-alone station for closed-loop and open-loop control, optimizing and monitoring functions ■ Customizable plain text for every parameter ■ Direct connection of the input and output signals ■ 12 DDC closed-loop control plants for ventilation or 24 DDC...
  • Page 2: Important Information On Product Safety

    Important Information on Product Safety Safety instructions This document contains information on installing and commissioning the product “DDC4400e”. Each person who carries out work on this product must have read and understood this document. If you have any questions that are not resolved by this document, you can obtain further information from the supplier or manufacturer.
  • Page 3: Item

    Product description DDC4400e Item DDC4400e Controller Technical Data Nominal voltage for controller (terminals 1 and 21): ■ AC 24 V +/- 10%; 50 to 60 Hz; 18 VA; 0.75 A or ■ DC 24 V +/- 10%; 9W; 0.4 A or ■...
  • Page 4 Product description DDC4400e NOTE Max. 63 fieldbus addresses or max. 16 switch cabinet bus addresses are managed on the two CAN buses. The maximum number of connectible input/output modules depends on the selected device types. More information can be found in the DDC4000 project planning documentation.
  • Page 5 Product description DDC4400e Sensor types Sensor type Measuring range 0(2) V..10 V 0%..100% KP10 -50 °C..+150 °C KP250 -50 °C..+150 °C -50 °C..+150 °C Ni100 -50 °C..+150 °C Ni1000 (DIN) -50 °C..+150 °C Ni1000 (L&G) -50 °C..+150 °C NTC1,8K -50 °C..+150 °C NTC5K -50 °C..+150 °C...
  • Page 6: Dimensions

    Product description DDC4400e Dimensions 14,5 23,8 202,4 105,5 Installation Dimensions 3,5 x13 11,3 11,3 +0,5 200,4 Accessories (included in delivery) USBSTICK-DDC-MINI USB stick Accessories (not included in delivery) Wall bracket for the DDC3000/DDC4000 automation station Installation note 2.85-10.023-99 contains further information on the installation (included with accessory Z23).
  • Page 7: Connection

    Product description DDC4400e Connection +24/12VDC 0VDC Y GND 0VDC +24VDC 24VAC 0VAC Y GND B GND B GND B1/Y1 B13/Y13 B2/Y2 B14/Y14 B3/Y3 B15/Y15 B4/Y4 B16/Y16 B5/Y5 B17/Y17 B6/Y6 B18/Y18 B7/Y7 B19//Y19 B8/Y8 B20/Y20 B9/Y9 B21/Y21 B10/Y10 B22/Y22 B11/Y11 B23/Y23...
  • Page 8 Product description DDC4400e Sensor and actuator connection 0..10VDC 24V 0V b 24V 0V Y ϑ CAUTION The GND wiring specified in the wiring diagram (Y GND, K GND, B GND) must be observed. Incorrect GND wiring may lead to errors in measurement.
  • Page 9: Installation

    Product description DDC4400e Installation CAUTION Switching on the power supply of unparameterized products can lead to unforeseen consequences such as malfunctions or material damage. Switch on the power only after the device has been configured by the commissioning technician. CAN bus When connecting the CAN bus, use a cable with 2 x 2 leads stranded into a pair with plastic insulation and electrostatic shielding with a lead diameter of at least 0.8 mm.
  • Page 10: Mounting

    Product description DDC4400e Mounting WARNING Contact with live parts of electrical domestic installation can cause death due to electric shock. Mounting/removal may only be carried out when power is switched off. Front installation 3,5x13 BZ 2,9x16 Rack de montage de 19”...
