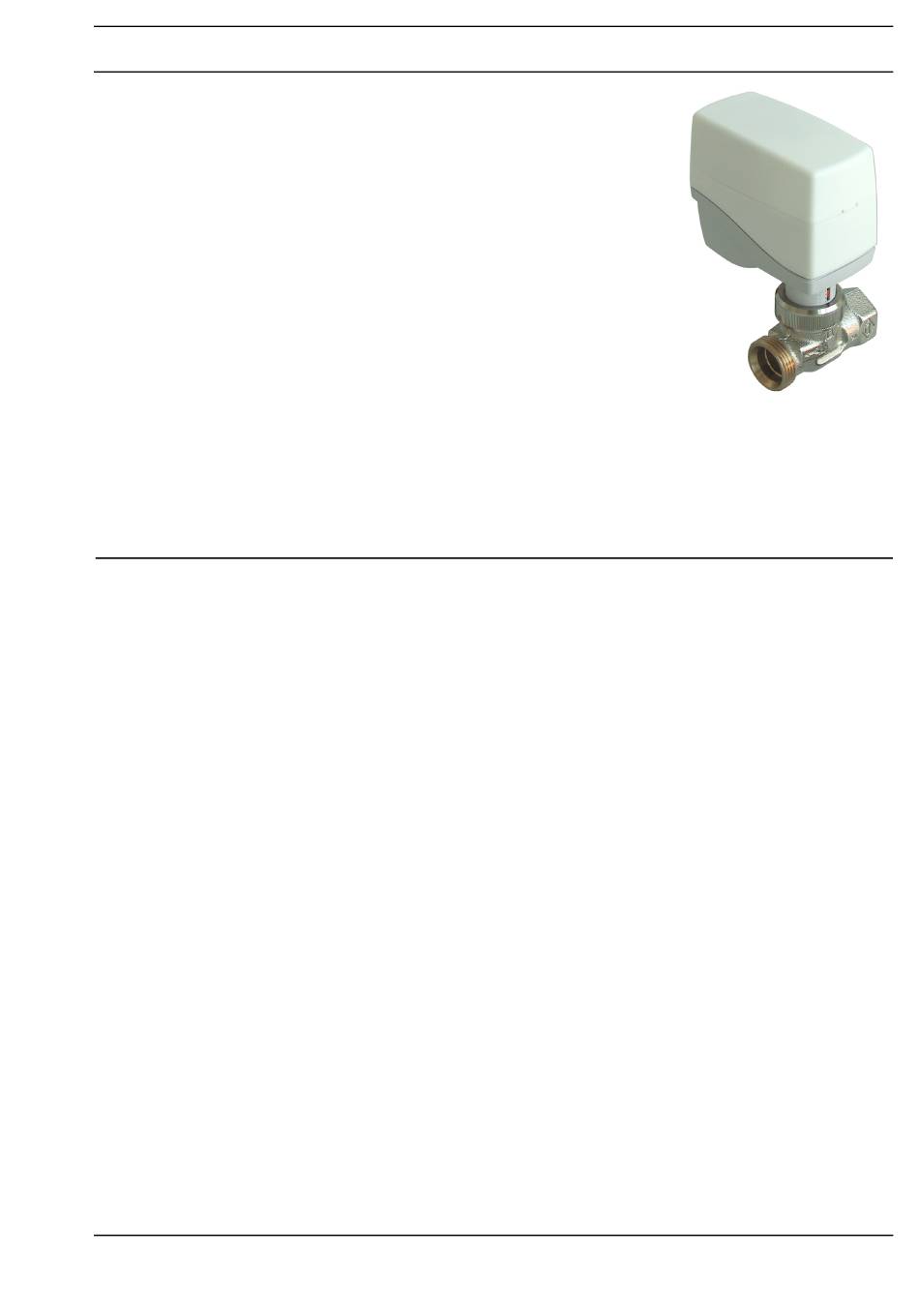

MD15-FTL-315 Wireless Small Actuator
Application
For thermostat valve bodies for direct mounting on commercially available
radiator valves for room-specific temperature control in heating systems.
The actuator is controlled wirelessly based on the non-proprietary EnOcean
wireless protocol.
The user manual of the RBW322-FTL-315 and the MD15-FTL-315 are valid
related closely. Follow the instructions and explanations in both user manuals.
Content
General Information ...............................................................................................................................................2
Information about the Manual ..............................................................................................................................2
Symbol Declaration..............................................................................................................................................3
Safety.....................................................................................................................................................................4
Equipment Description...........................................................................................................................................5
Operation Elements ...............................................................................................................................................5
Maintenance and Cleaning ....................................................................................................................................5
System Malfunctions..............................................................................................................................................6
Operating and Malfunctioning Messages ............................................................................................................6
Technical Specifications ........................................................................................................................................8
Wireless Interface ..............................................................................................................................................10
Contacting Kieback&Peter Representatives........................................................................................................14
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk - 保留未经通知而改动的权力
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 3.09-20.315-09-EN
MD15-FTL-315
Page
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD15-FTL-315 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kieback&Peter MD15-FTL-315

  • Page 1: Table Of Contents

    The actuator is controlled wirelessly based on the non-proprietary EnOcean wireless protocol. The user manual of the RBW322-FTL-315 and the MD15-FTL-315 are valid related closely. Follow the instructions and explanations in both user manuals. Content Page General Information ...............................2...
  • Page 2: General Information

    The manual must be passed along to any subsequent owner or user. NOTE This manual describes the specific settings and functions of the MD15-FTL-315. In addition to these instructions, the product description of the MD15-FTL-315 wireless partner must also be observed.
  • Page 3: Symbol Declaration

    Issue 2012-08-16 Datasheet 3.09-20.315-09-EN User Manual MD15-FTL-315 Symbol Declaration Safety Instructions Hazardous situations during installation, commissioning and operating the device are indicated by safety instructions. They are indicated by signal words which express the severity of the hazard. DANGER! Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 4: Safety

    Together with the MD15-FTL-315, the RBW322-FTL-315 constitutes a functional unit for easy room temperature control. The MD15-FTL-315 may only be used together with wireless partners that correspond to EnOcean Equipment Profiles EEP A5-20-01. This includes the RBW322-FTL-315. Modifications to and retrofitting of the device could result in unforeseeable dangers and are thus prohibited.
  • Page 5: Equipment Description

    User Manual MD15-FTL-315 Equipment Description Along with the RBW322-FTL-315 units, the MD15-FTL-315 constitutes a functional unit for room temperature control. Before both wireless partners can communicate with each other, the MD15-FTL-315 must be teached-in on the RBW322-FTL-315. This procedure only needs to be performed once. Generally, both wireless partners can be automatically synchronized with each other after a connection failure, e.g.
  • Page 6: System Malfunctions

    System Malfunctions The room control module provides information about the current status of the RBW322-FTL-315/ MD15-FTL-315 controller set and any occurring malfunctions. The messages are shown on the display. Therefore, observe the section "Operating and Malfunction Messages" in the chapter "System Malfunctions"...
  • Page 7 After all batteries have been inserted into the battery compartment, an initial- ization run is performed automatically. The status LED flashes during the installation run. ► Close the housing of the MD15-FTL-315 by snapping on the housing cover. Page 7 / 14...
  • Page 8: Technical Specifications

    Datasheet 3.09-20.315-09-EN Issue 2012-08-16 MD15-FTL-315 User Manual Technical Specifications Technical Data Nominal voltage Battery-operated, 3 alkaline AA batteries (LR6 1.5 V 3,400 mAh) Battery life Approx. 3 years (depending on frequency and method of operation) Measuring system Integrated digital temperature sensor; 32 °F to 104 °; ± 32.9 ° at 77 °F Interfaces technoLink®...
  • Page 9 Datasheet 3.09-20.315-09-EN User Manual MD15-FTL-315 Dimensions 3.35 1.85 M30x1,5 Type plate The MD15-FTL-315 type plate is located on the back of the device. SN: xxxxxx.yyy 3 x LR6/AA/Mignon 315 MHz FCC-ID: NY3MD15FtL IC: 10353A-MD15FtL MD15-FtL-315 MD15-FTL-315 type plate Serial number...
  • Page 10: Wireless Interface

    Datasheet 3.09-20.315-09-EN Issue 2012-08-16 MD15-FTL-315 User Manual Accessories and Spare Parts NOTE Contact your Kieback&Peter representative if you have any questions regarding accessories or spare parts. Batteries: 3 alkaline AA batteries (LR6 1.5 V 3.400 mAh) Special key to open the device...
  • Page 11 Issue 2012-08-16 Datasheet 3.09-20.315-09-EN User Manual MD15-FTL-315 Class A Digital Device or Peripheral The RBW322-FTL-315 is a digital device that is marketed for use in a commercial, industrial or business environment, exclusive of a device which is marketed for use by the general public or intended to be used in the home.
  • Page 12: Db_1.Bit

    Datasheet 3.09-20.315-09-EN Issue 2012-08-16 MD15-FTL-315 User Manual EnOcean Equipment Profiles EEP A5-20-01 (Battery Powered Actuator) DATA BYTES Transmit mode: Message from the actuator to the controller DB_3: Current Value value 0...100 %, linear n=0...100 DB_2.BIT_7: Service on DB_2.BIT_6 Energy input enabled (not applicable) DB_2.BIT_5...
  • Page 13: 1 Supported In Version 2.32 And Up

    Issue 2012-08-16 Datasheet 3.09-20.315-09-EN User Manual MD15-FTL-315 DB_1.BIT_2 Set point selection DB_3 0b0 set point 0...100 %, 0b1 temperature set point 0...40°C DB_1.BIT_1 Set point inverse DB_1.BIT_0 Select function 0b0 RCU 0b1 service on Supported in version 2.32 and up Not supported in version 2.32 an up...
  • Page 14: Contacting Kieback&Peter Representatives

    Datasheet 3.09-20.315-09-EN Issue 2012-08-16 MD15-FTL-315 User Manual Contacting Kieback&Peter Representatives Canadian Representative Canadian Radio Standards Consulting Inc. Kwai Lum 6038 Vineyard Drive, Ottawa, Ontario, K1C2M5 (+) 613-824 6438 (Office) Lumkwai@rogers.com US Representative Magnum Energy Solutions LLC 43 Village Way #209...
