Issue 2016-01-05
Product Description

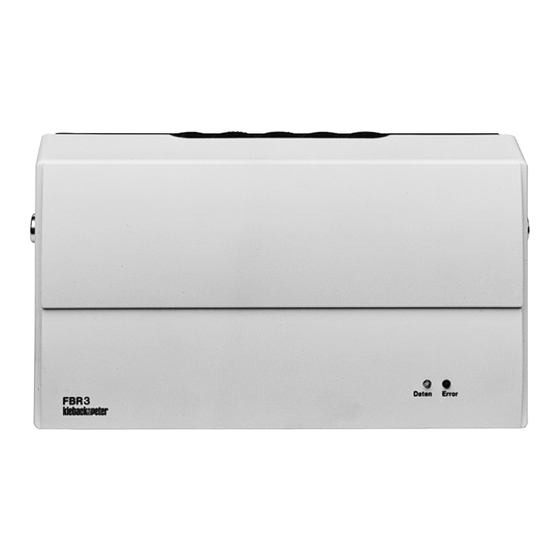

FBR3 Room Controller
Application
The FBR5 Rom Controller are used within the DDC3000
and DDC4000 automation systems for individual room
control.
With 2 continuous output signals DC 0 V to 10 V for
sequential control.
The fieldbus is used for data communication with the
DDC3xxx/DDC4xxx controller.
DDC software menus, such as optimize/heating; limiting
value and Y Set, can extend the basic closed loop control
function.
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories (not included in delivery) .................................................................................................................3
Dimensions ..........................................................................................................................................................4
Connection...........................................................................................................................................................4
Mounting and Installation.......................................................................................................................................5
Setting the Fieldbus Address.................................................................................................................................6
self-control program...............................................................................................................................................6
Bridging program ...................................................................................................................................................6
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 2.50-60.003-01-EN
FBR3
Page
A
Advertisement
Table of Contents
Related Manuals for Kieback&Peter FBR5
Summary of Contents for Kieback&Peter FBR5
- Page 1 Datasheet 2.50-60.003-01-EN Product Description FBR3 FBR3 Room Controller Application The FBR5 Rom Controller are used within the DDC3000 and DDC4000 automation systems for individual room control. With 2 continuous output signals DC 0 V to 10 V for sequential control.
- Page 2 Datasheet 2.50-60.003-01-EN Issue 2016-01-05 FBR3 Product Description Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "FBR3". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer.
- Page 3 Issue 2016-01-05 Datasheet 2.50-60.003-01-EN Product Description FBR3 Item FBR3 Fieldbus loop controller for individual room control with 2 continuous output signals DC 0 V to 10 V. Technical Data Nominal voltage DC 12 V ±20%; 1,6 W Inputs Room sensor with KP10 measuring system (2.73 V at 0 °C; TC = 10 mV/K) Remote adjuster for setpoint correction (10 k) 3 digital inputs for voltage-free contacts, configurable for program time extension, presence detector, window contact, fault message, operating...
- Page 4 Datasheet 2.50-60.003-01-EN Issue 2016-01-05 FBR3 Product Description Dimensions 39,0 205,0 15,0 Connection 12 V/ 2 mA ϑ KP10 230V AC 8(3)A 10KΩ V 1 Y CAN - 0 V AC/DC CAN + Y2 = 0..10 VDC 24 V AC Y1 = 0..10 VDC 12 V DC FBR3 V 1 Y...
- Page 5 Issue 2016-01-05 Datasheet 2.50-60.003-01-EN Product Description FBR3 Mounting and Installation WARNING Contact with live parts of electrical domestic installation can cause death due to electric shock. Mounting/removal may only be carried out when power is switched off. Wall mounting 01..63 3,5x 35 Flush mounting 01..63...
- Page 6 Datasheet 2.50-60.003-01-EN Issue 2016-01-05 FBR3 Product Description ■ Lines for the power supply and fieldbus should be laid together in one shielded cable, cable type at least 0.8 mm in diameter, with the wires twisted together in pairs. Here, one twisted pair of wires is to be used for the power supply and another for the fieldbus (see wiring diagram).
