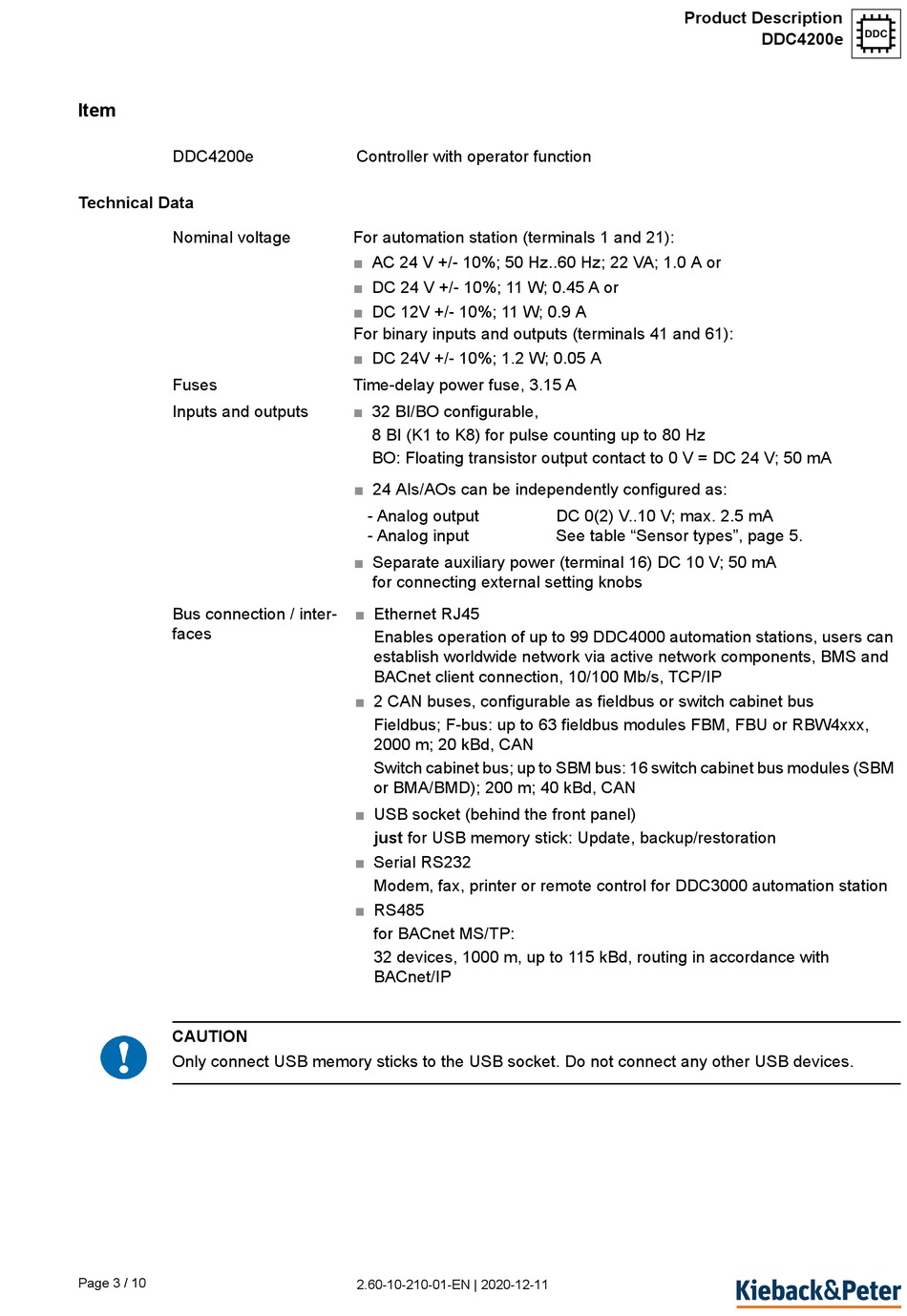

Item

DDC4200e

Technical Data

Nominal voltage
Fuses
Inputs and outputs
Bus connection / inter-
faces
CAUTION
!
Only connect USB memory sticks to the USB socket. Do not connect any other USB devices.
Page 3 / 10
Controller with operator function
For automation station (terminals 1 and 21):
■ AC 24 V +/- 10%; 50 Hz..60 Hz; 22 VA; 1.0 A or
■ DC 24 V +/- 10%; 11 W; 0.45 A or
■ DC 12V +/- 10%; 11 W; 0.9 A
For binary inputs and outputs (terminals 41 and 61):
■ DC 24V +/- 10%; 1.2 W; 0.05 A
Time-delay power fuse, 3.15 A
■ 32 BI/BO configurable,
8 BI (K1 to K8) for pulse counting up to 80 Hz
BO: Floating transistor output contact to 0 V = DC 24 V; 50 mA
■ 24 AIs/AOs can be independently configured as:
- Analog output
- Analog input
■ Separate auxiliary power (terminal 16) DC 10 V; 50 mA
for connecting external setting knobs
■ Ethernet RJ45
Enables operation of up to 99 DDC4000 automation stations, users can
establish worldwide network via active network components, BMS and
BACnet client connection, 10/100 Mb/s, TCP/IP
■ 2 CAN buses, configurable as fieldbus or switch cabinet bus
Fieldbus; F-bus: up to 63 fieldbus modules FBM, FBU or RBW4xxx,
2000 m; 20 kBd, CAN
Switch cabinet bus; up to SBM bus: 16 switch cabinet bus modules (SBM
or BMA/BMD); 200 m; 40 kBd, CAN
■ USB socket (behind the front panel)
just for USB memory stick: Update, backup/restoration
■ Serial RS232
Modem, fax, printer or remote control for DDC3000 automation station
■ RS485
for BACnet MS/TP:
32 devices, 1000 m, up to 115 kBd, routing in accordance with
BACnet/IP
2.60-10-210-01-EN | 2020-12-11
Product Description
DC 0(2) V..10 V; max. 2.5 mA
See table "Sensor types", page 5.
J
DDC4200e
