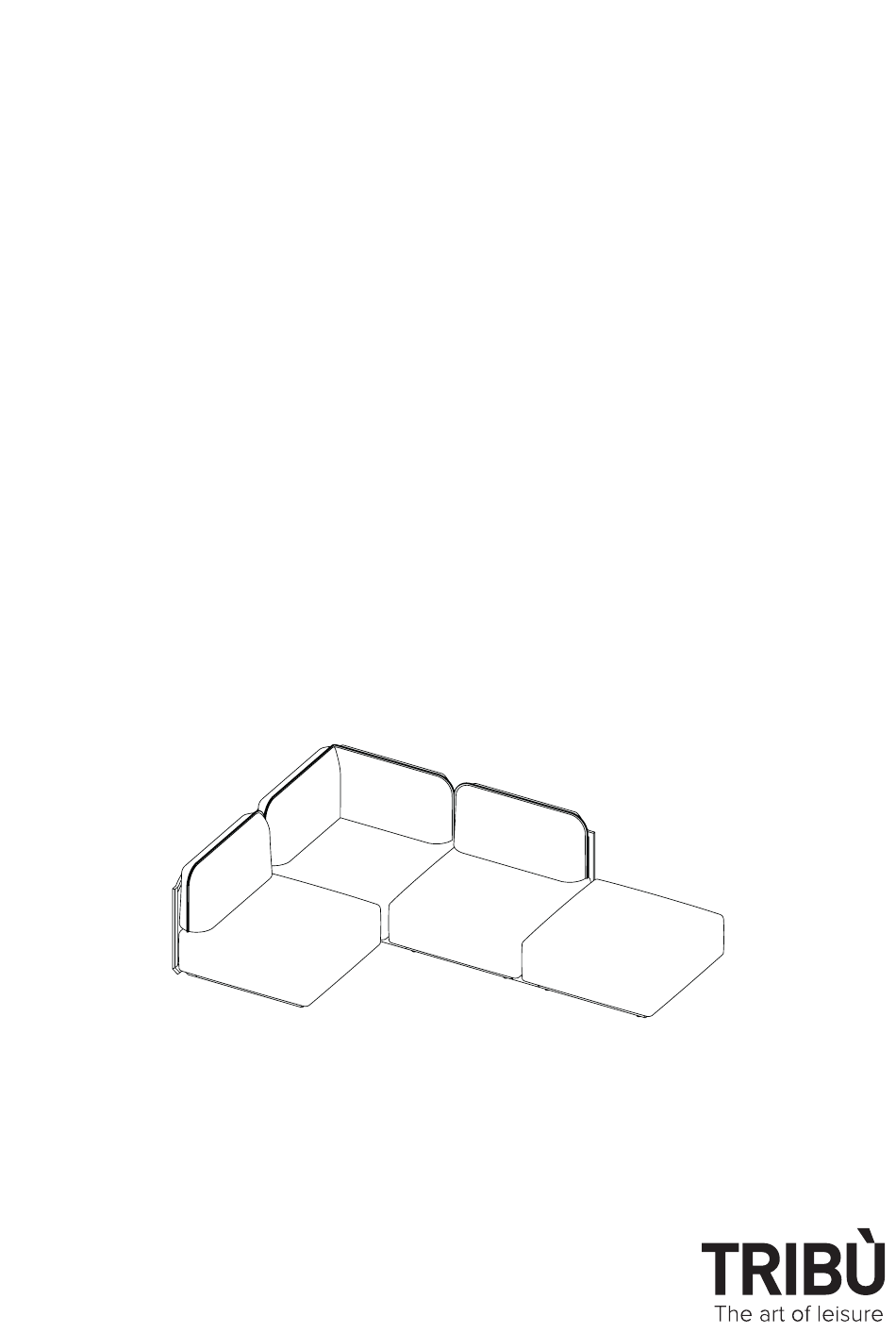

- Page 1 NOSOAK01 - 10-05-2021 BACKREST ADJUSTMENT KIT NODI SOFA...
- Page 3 It can not be used for corner backrests. After installing this adjustment kit the backrests will align better with other single backrests and/or corner backrests. If you have a Nodi sofa set we advise to adjust all single backrests. COMPONENTS METAL WASHER...
- Page 4 ASSEMBLY INSTRUCTIONS Remove the cushions from your sofa.
- Page 5 Remove the seat plate of the module that you want to adjust by unscrewing all COUNTERSUNK SCREWS. Unscrew the 4 FLATHEAD SCREWS that secure the backrest to the frame and carefully remove the backrest. Underneath each screw you will find a BUSHING and a WASHER which you won’t need anymore.
- Page 6 Insert the two HEIGHT ADJUSTMENTS, one into each cavity of the backrest. Reinstall the backrest using 4 x METAL WASHER and 4 x FLAT HEAD SCREW. Metal Washer Flat head screw...
- Page 7 Reinstall the seat plate by using 8 - 12 COUNTERSUNK SCREWS. Repeat step 2 - 6 if you want to adjust other backrests. If all backrests are adjusted you can put the cushions back.
