5
Attach the Back part to the seat part using 2 x small washer, 2 x
small nut and an adjustable spanner. Do not forget to fix both
threaded pins.
6
Use 5 x screw, 5 x small washer and an Allen key to connect the Back
part to the Seat part on the front side of the chair.
Tribù nv
Langendijkstraat 5a
3690 Zutendaal
BELGIUM
www.tribu.com
info@tribu.com
MOS02 – 26/10/2015

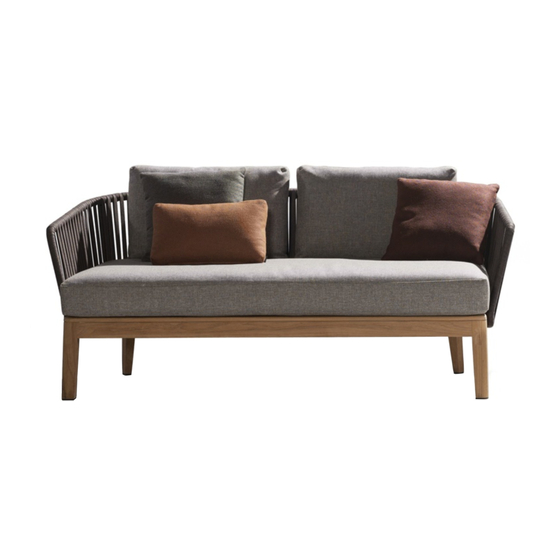

MOOD sofa 163 cm
06208
Advertisement
Table of Contents
Related Manuals for TRIBU MOOD 06208
Summary of Contents for TRIBU MOOD 06208
- Page 1 MOOD sofa 163 cm 06208 Use 5 x screw, 5 x small washer and an Allen key to connect the Back part to the Seat part on the front side of the chair. Tribù nv Langendijkstraat 5a 3690 Zutendaal BELGIUM www.tribu.com info@tribu.com...
- Page 2 Content Assembly Instructions Postion the seat upside down on a Assemble the front legs with 2 x large nut and Slide the Back part onto the seat part. The Back part has 2 guiding pins (A) that fit into a designated slot in the Seat part. The Back protective surface.
