Summary of Contents for ETIC IPL-M156

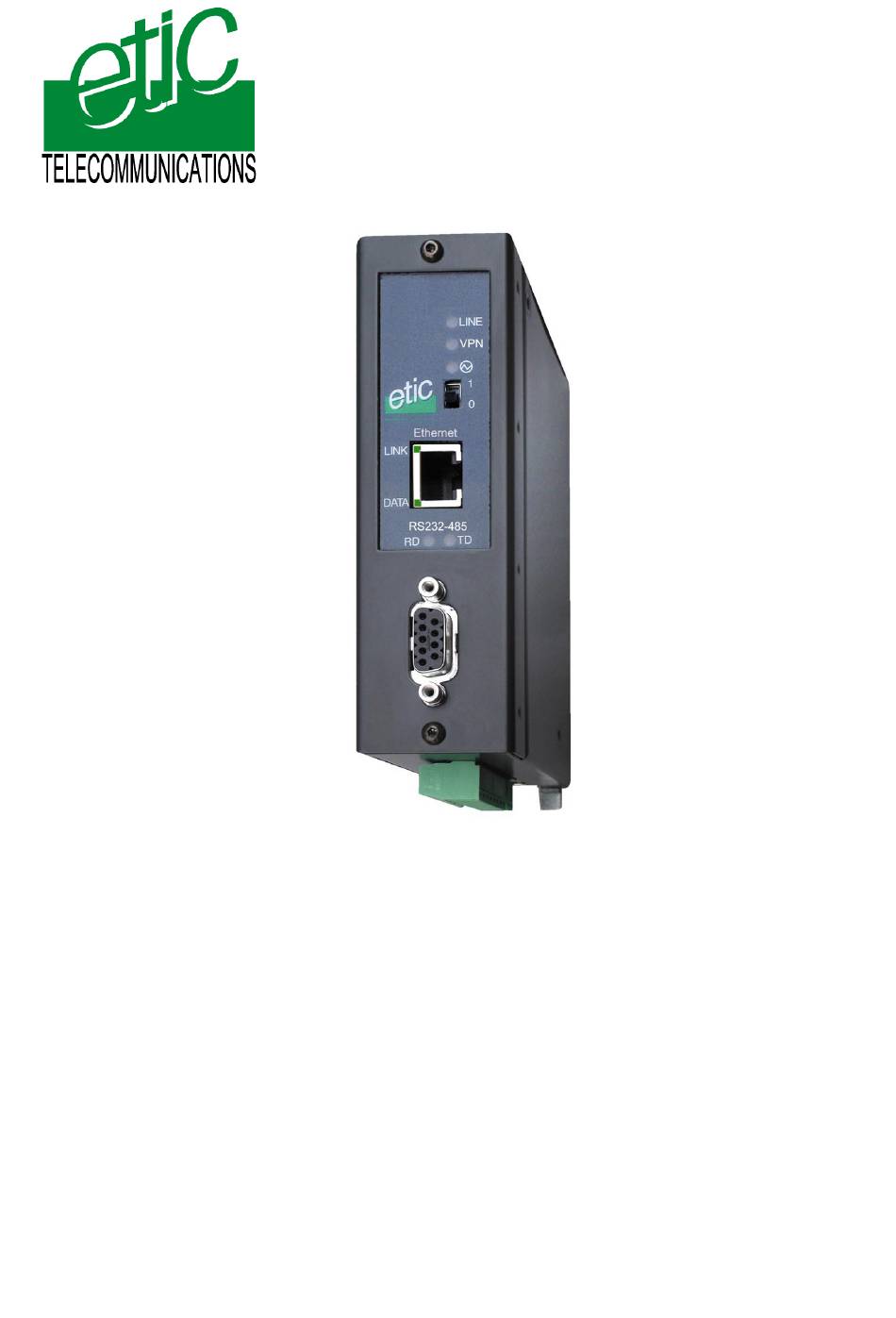

- Page 1 IPL-M156 : PSTN router IPL-I1128: ISDN router IPL-L134 : Dedicated line router IPL-RS232 : Serial interface router _________________ User manual Document reference : 9017109-01 _________________...
- Page 2 The IPL-M156 and IPL-I1128 and IPL-L134 routers are manufactured by ETIC TELECOMMUNICATIONS 13 Chemin du vieux chêne 38240 MEYLAN FRANCE TEL : + 33 4-76-04-20-00 FAX : + 33 4-76-04-20-01 E-mail : hotline@etictelecom.com web : www.etictelecom.com Page 2 User manual ref. 9017109-01...
-
Page 3: Table Of Contents
CONFIGURATION OVERVIEW......................... 21 CONNECTING A PC TO THE ETHERNET INTERFACE .......... 21 MODIFYING THE CONFIGURATION PARAMETERS THROUGH THE LAN ..22 WRONG IP ADDRESS OR PASSWORD..............22 ../.. Page 3 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... - Page 4 RAW TCP gateway ..................42 12.3 Multicast gateway..................44 ADVANCED FUNCTIONS..................46 13.1 Alarms ......................46 13.2 Configuring the web portal................48 13.3 Restricting access to the administration server ........49 ../.. Page 4 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
- Page 5 CONTENT MAINTENANCE DIAGNOSTIC ......................51 SAVING THE PARAMETERS FILE ................52 UPDATING THE FIRMWARE ..................52 APPENDIX 1 : HTML configuration server Page 5 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
- Page 6 CONTENT Page 6 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
-
Page 7: Overview
Raw TCP client and server, Telnet server, • • • • Multicast, Modbus client and server, Unitelway • • • • Html Configuration • • • • Option software IO Viewer Page 7 IPL-M156 / IPL-I1128 / IPL-L134 routerUser manual ref. 9017109-01... -
Page 8: Specifications
Source IP @ translation (NAT) Ip address Destination IP @ translation (DNAT) translation Port translation (Port forwarding) Domain name IP address assignment Fixed IP @ or DHCP client or DHCP server Page 8 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... - Page 9 RS232 1200 - 115200 kb/s parity N / E / O Modbus master and slave Raw client et server Telnet Serial to IP gateways Multicast UDP multicast unitelway Page 9 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
-
Page 10: Product Overview
OVERVIEW Product overview The IPL is designed to interconnect safely automated devices over the PSTN or ISDN or dedicated lines. PSTN network ISDN network Page 10 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... - Page 11 If the VPN is established between a remote user PC and an IPL router, the remote user can access to the devices connected to the router. Authentication can be carried out with a pre-shared key or with certificates. Page 11 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
- Page 12 GSM network and the Internet. EticFinder software The ETICFinder software is delivered with the product. It detects the ETIC products connected to an Ethernet interface and displays the MAC address and the iP address of each product. Page 12 User manual ref.
-
Page 13: Installation
INSTALLATION Product description IPL-M156 or IPL-I1128 or IPL-L134 Leds Function Lit : Remote connection set Blinking : Remote connection in progress Line / The number of blinks gives an indication of the signal level. Lit : One VPN at least has been established... -
Page 14: Connectors
Clear to send ⇒ ⇒ ⇒ ⇒ Ring indicator ⇒ ⇒ ⇒ ⇒ ISDN RJ45 connector IPL-I1128 Polarity Emission to ISDN Reception from ISDN Reception from ISDN Emission to ISDN Page 14 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... - Page 15 Telephone line wire 1 Telephone line wire 2 Nota bene : An RJ11 PSTN cable can be connected to the RJ45 connector of the IPL-M156 or IPL- L134. The 2 wires of the PSTN or dedicated line must be present on wires 3 and 4 of the RJ11.
-
Page 16: Dip-Switches
Ethernet interface The Ethernet interface is a 10 Mb/s interface. To connect a PC directly to the router, use the cross wired red cable provided with the product. Page 16 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... -
Page 17: Rs232 Interface
The product features one digital input ; it is not isolated. if the input is opened, an SNMP trap will be sent to the SNMP server is that function has been enabled. Page 17 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... -
Page 18: Pstn Line (Ipl-M156)
INSTALLATION PSTN line (IPL-M156) The IPL-M156 is designed to be connected to an analog telephone line. That line can be an analog public line (PSTN subscriber line) or an analog line connected to a company telephone switch PABX (also called extension line). -
Page 19: Isdn Line (Ipl-I1128)
The two telephone line wires are the wires number 4 and 5 located in the middle of the connector. An RJ11 telephone cable can be connected to the RJ45 connector. In the RJ11 connector, the telephone wires must be on pins 3 an 4 Page 19 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... - Page 20 INSTALLATION Page 20 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
-
Page 21: Overview
Ethernet cable. Step 4 : Launch the navigator Enter the IP @ of the IPL.. The Home page of the administration server is displayed Page 21 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... -
Page 22: Modifying The Configuration Parameters Through The Lan
Step 1 : Check the DIP switches SW1 is OFF and SW2 OFF to select DHCP / BOOTP operation. Step 2 : Launch ETIC FINDER to detect the IPL over the LAN. Click the product once detected. The Home page of the administration server is displayed. -
Page 23: Saving Configuration Modifications
If you wish, save the configuration file using the “Save restore“ menu. Assigning an IP address to the LAN interface Click « System » and then « IP protocol». Local network parameters : Page 23 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... -
Page 24: Modem Configuration
Select the “System” menu and then “Modem”. • • • • Check that the “Use default initialisation string” option is selected. • • • • Select the “Permanent link (Leased Line)” option Page 24 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... -
Page 25: Configuring Connections Between Routers
It cannot dial towards that remote router. If a connection is an outgoing and ingoing connection, the local IPL dials towards the remote router. It can also accept a call coming from that router. Page 25 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... - Page 26 “Idle time-out” parameter (5 s to 60 mn) : Set the time duration of the silence before the router will clear the call. “First packet time-out” parameter (5 s to 60 mn) : Page 26 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
- Page 27 PPP IP address” parameters : Enter the IP address assigned to the PPP interface. If no IP address is entered, the address of the Ethernet interface is assigned automatically. Page 27 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
-
Page 28: Dedicated Line Connection
The connection with a remote node can be an outgoing connection or an ingoing connection If the connection is declared as an outgoing connection in a router, it must be declared as an ingoing connection in the remote router. Page 28 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... - Page 29 “Node login” and “Node password” parameters : Enter the login and the password of the remote router. These login and password are checked by the router when a call is incoming. Page 29 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
- Page 30 “Router PPP IP address ” and “Remote router PPP IP address” parameters : Enter the IP address assigned to the PPP interface. If no IP address is entered, the address of the Ethernet interface is assigned automatically. Page 30 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
-
Page 31: Configuring Static Routes
Example : Network 4 192.168.40.0 Router 4 192.168.30.128 Network 2 192.168.20.0 Network 3 Router 2 192.168.30.0 192.168.10.1 Network 1 192.168.10.0 Router 3 192.168.30.1 PSTN-ISDN Dedicated line Router 1 192.168.10.128 Page 31 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... -
Page 32: Remote Users Connection
The IPL router registers a users list; 25 remote users can be stored in the users list. Attention : Coming from factory, a default user is registered; his login is admin and the password is also admin. Page 32 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... -
Page 33: Configuring The Users List
IP @ assigned to the router by the provider. (See OPERATION chapter). Firewall filter Select the filter to assign to the user to restrict his access rights. Page 33 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... -
Page 34: Restricting The Rights Of A Remote User
• “Drop all the IP frames not described by one of the rules”; • “Accept all the IP frames not described by one of the rules”. The first policy is generally the right one because it is cautious. Page 34 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... -
Page 35: Configuration
(also called TCP port). • Add other rules if necessary. • Click OK when the filter is complete ; the updated filters list is displayed. Page 35 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... - Page 36 CONFIGURATION Page 36 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
- Page 37 Among the users select a user to which you want to assign a filter ; and click modify ; the user window is displayed. • Assign a filter to the user ; click OK and save. Page 37 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
-
Page 38: Serial To Ip Gateway
To exchange serial data between a great number of serial and IP devices, through an IP network, using the multicast technology. Unitelway slave : To connect a serial unitelway master to an IP network. Page 38 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... -
Page 39: Modbus Gateway
Select the period at which the gateway will send request to the slaves PLC. Timeout waiting for the answer : Set up the timeout the gateway has to wait for the answer of the modbus slave answer. Local retry : Page 39 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... - Page 40 Set the time the gateway will wait before disconnecting the TCP link if no characters are detected. TCP port number : Set the port number the gateway has to use. Page 40 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
- Page 41 The modbus client gateway allows to transmit modbus requests from the serial modbus master device to any modbus slave device, more precisely called “ modbus server”, located on the IP network. Page 41 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
-
Page 42: Raw Tcp Gateway
Set up the delay the gateway will wait before declaring complete a string received from the asynchronous device. Once declared complete, the gateway will transmit the string to the IP network. Page 42 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... - Page 43 Set up the delay the gateway will wait before declaring complete a string received from the asynchronous device. Once declared complete, the gateway will transmit the string to the IP network. Page 43 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
-
Page 44: Multicast Gateway
Multicast gateway does not send an IP frame to each destination IP gateway. Serial data is encapsulated in a unique IP frame transmitted to a multicast address received by all the gateways or IP devices. Page 44 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... - Page 45 2/ The multicast gateway can be used through an Ethernet LAN; but it is not easy to send across routers. Page 45 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
-
Page 46: Advanced Functions
SNMP network management IP address Enter the IP address of the management platform SysName & SysLocation That fields allow to identify the source device. Example : Sysname : etic Syslocation : France Page 46 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... - Page 47 Select the time the input has to stay in its alarm state to be taken into account. Alarm destination Select the user to whom the email must be sent. Text to send Enter the email text. Page 47 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01...
-
Page 48: Configuring The Web Portal
Ip address assigned to the IPL router. In that case, the administration server, usually can be displayed at the same address but at the port number 8080 instead of 80 when the web portal page option is not selected. Page 48 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router... -
Page 49: Restricting Access To The Administration Server
2 OFF. Attention : When the micro-switch 1 is set ON, and the micro-switches 2 is set OFF, the factory IP address 192.168.0.128 is restored. Page 49 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... -
Page 51: Maintenance
• • • • IO control That screen displays the status of the digital input and output and allows to set ON or OFF the alarm digital output. Page 51 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... -
Page 52: Saving The Parameters File
An Ethernet cable or a switch The FTP server software which can be downloaded from the « firmware page » of the ETIC « download area » web server. Step 2 : Download the release of the firmware from our download... - Page 53 Step 4 : Update the firmware Launch the web browser Enter the IP address of the ETIC product ; the home page of the ETIC configuration server is displayed. Select the "System" menu and then " firmware Update". In the field "IP address of the TFTP server", enter the IP address of your PC.
-
Page 55: Appendix 1 : Html Configuration Server
To restrict access to the administration server Administration To restrict access to devices of the LAN Firewall To restrict access to the Internet To set the VPNs parameters and register certificates Page 55 IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01... - Page 56 To display the table of routes To ping a machine Ping IO control To display the IOs status Resume To display the connections About To display the firmware and hardware identification Page 56 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
- Page 58 13, Chemin du Vieux Chêne 38240 Meylan France Tel : 33 4 76 04 20 00 Fax : 33 4 76 04 20 01 E-mail : contact@etictelecom.com Web : www.etictelecom.com...
