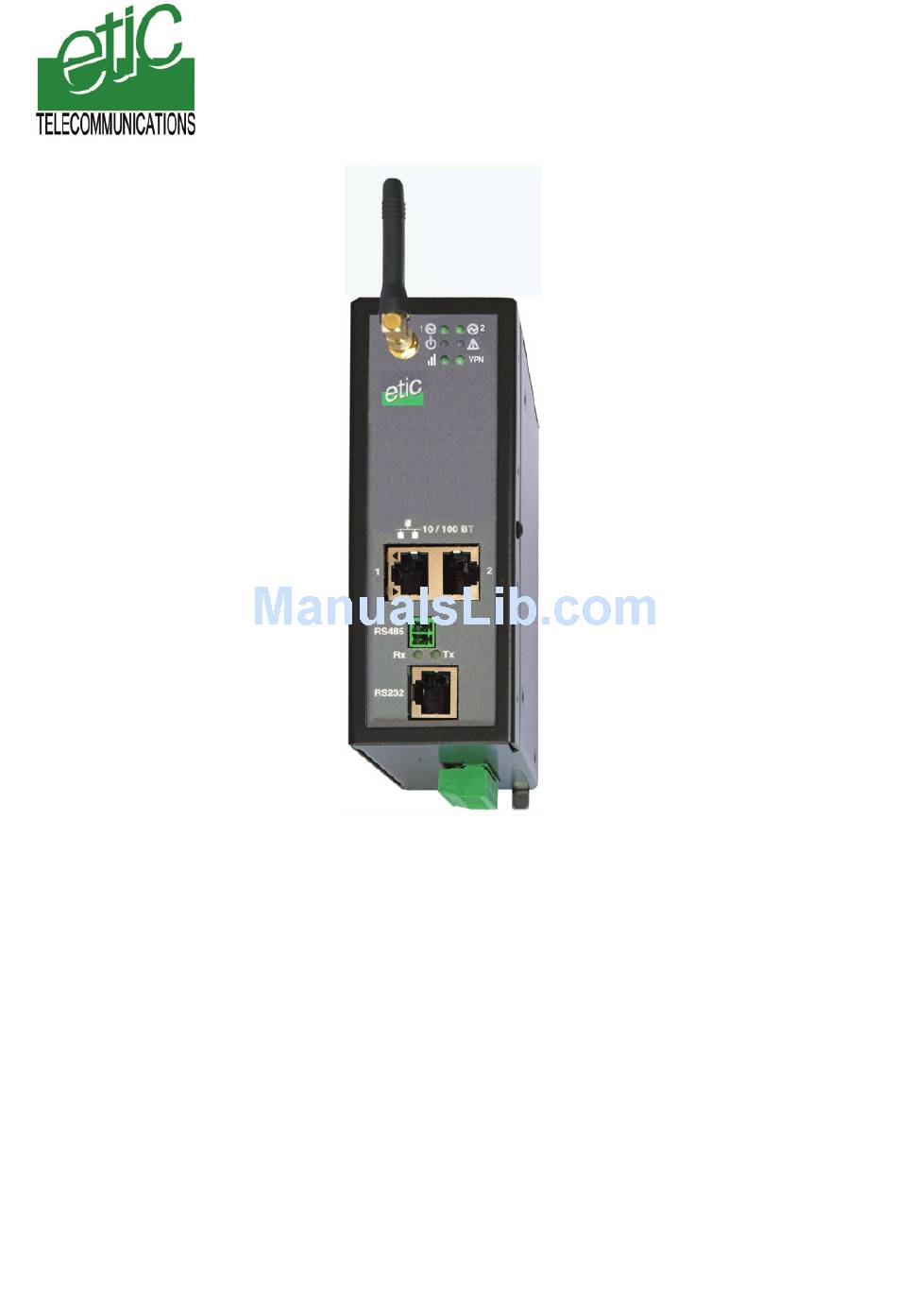

- Page 1 IPL-3G UMTS-GPRS-EDGE router ________________ INSTALLATION MANUAL Document reference : 9019609-01 ________________...
-
Page 2: Table Of Contents
CONTENT SAFETY & CONFORMITY SAFETY RECOMMENDATIONS................ 3 CERTICATE OF CONFORMITY................. 4 PRODUCT DESCRIPTION PRODUCT CHARACTERISTICS ............... 5 DELIVERY CONTENT AND ACCESSORIES ............ 6 PRODUCT OVERVIEW ..................7 DIMENSIONS ..................... 8 CONNECTORS....................9 LED INDICATORS.................... 12 DIP SWITCHES ....................14 FACTORY DEFAULT PUSH-BUTTON ............14 MOUNTING THE PRODUCT ON A DIN RAIL OR REMOVING IT.... -
Page 3: Safety & Conformity
SAFETY & CONFORMITY Safety recommendations The IPL-3G is a low power radio transmission and reception device. It conforms to rules imposed to UMTS or GSM-GPRS-EDGE terminals. Check that using such a device is authorized at the location where you wish to install it. -
Page 4: Certicate Of Conformity
SAFETY & CONFORMITY CERTICATE OF CONFORMITY The manufacturer, ETIC Telecom company – 13 chemin du vieux chêne – 38240 Meylan – France Hereby declares that the listed products Type of device : UMTS & GSM - GPRS – EDGE router... -
Page 5: Product Description
PRODUCT DESCRIPTION PRODUCT CHARACTERISTICS IPL-3G-G-….. router UMTS frequency 850 1900 / 2100 MHz GSM-GPRS frequency 850 / 900 / 1800 / 1900 MHz Min. supply voltage VDC Max. supply voltage Ethernet 10-100 BT RS232 RS485 - 2 wires IPL-3G-E-….. router UMTS frequency 900 / 2100 MHz GSM-GPRS frequency... -
Page 6: Delivery Content And Accessories
The product itself is delivered with a CD including the user manual in English and the eticfinder software tool with which you can discover the IP address of any product manufactured by ETIC TELECOM and connected to an Ethernet network. Accessories to order separately reference 90 °... -
Page 7: Product Overview
The IPL-3G provides to authorized users a remote access to the devices connected either using a fixed IP address or the DynDNS service or the M2Me_Connect service provided by ETIC TELECOM. The product includes an up-to-date RS to IP gateway, enabling to connect serial devices safely to the 3G network and the Internet. -
Page 8: Dimensions
PRODUCT DESCRIPTION Dimensions Page 8 IPL-3G UMTS router... -
Page 9: Connectors
PRODUCT DESCRIPTION Connectors X = G or E (see the product identification table on page 5). IPL-3G-X-1220 IPL-3G-X-1230 IPL-3G-X-1230 IPL-3G UMTS router Page 9... - Page 10 PRODUCT DESCRIPTION 8 positions screw terminal : Supply voltage and digital input / output Position Name Description IPL-3G-X-1220 or IPL-3G-X-1220-B : 10 to 30 VDC Power 1 + All other models : 10 to 60 VDC Power 1 - Power 2 + IPL-3G-X-1220 or IPL-3G-X-1220-B : 10 to 30 VDC All other models : 10 to 60 VDC Power 2 -...
- Page 11 PRODUCT DESCRIPTION RS232 RJ45 connector port 1 (To connect to a DCE to the RS232 port) Position Circuit Function DTR - 108 Data terminal ready TD - 103 Data Emission RD - 104 Data Reception DSR - 107 Data set ready SG - 102 Ground Not used...
-
Page 12: Led Indicators
PRODUCT DESCRIPTION Led indicators Indicator Status Description All models After power-on, and until the connection to the 3G network, the reception signal strength is indicated by the number of flashes. Flashing green See the table below. After power-on Line / Remark : The diagnostic menu reports the precise value of the reception signal. - Page 13 PRODUCT DESCRIPTION RF reception signal strength indicator Description Status RF Reception dBm (Diagnostic menu) -50 to - 80 3 flashes Good reception 2 flashes Sufficient reception The level of the reception signal is -81 to –90 acceptable. However, some error may occur and the data rate might be lower.
-
Page 14: Dip Switches
PRODUCT DESCRIPTION DIP switches DIP switches SW 1 SW 2 Management The current IP@ of the product is the stored IP @ The active IP@ of the product is the factory IP@ : 192.168.0.128 No login and password are required to access to the html server The active IP@ is provided by the BOOTP or DHCP server. -
Page 15: Mounting The Product On A Din Rail Or Removing It
PRODUCT DESCRIPTION Mounting the product on a DIN rail or removing it Mounting the unit on the DIN rail This unit should be mounted on 35 mm DIN-rail, horizontally mounted. Removing the unit from the DIN rail IPL-3G UMTS router Page 15... -
Page 16: Cooling
PRODUCT DESCRIPTION Cooling To avoid obstructing the airflow around the unit, the spacing must be at least 25 mm above and below, and 10 mm left and right. RS232 interface The RS232 data rate can be tuned from 1200 to 115200 b/s with parity (even / odd) or no parity. -
Page 17: Rs485 Interface
PRODUCT DESCRIPTION RS485 interface The RS485 serial interface is provided on the front panel 2 pins screw-block. Polarisation resistors 1 Kohm bus polarisation resistors are included inside the product. B(+) RS485 A(-) RS485 line adaptation For a several meters long connection over the RS485 local interface, it is not necessary to adapt the RS485 line. -
Page 18: Digital Input And Output
PRODUCT DESCRIPTION Digital input and output IPL router Digital output : Max. voltage : 48 VDC Max. current : 500 mA Digital output Digital input Digital input : Maximum voltage : 20 VDC I max = 0,5 A V < 48 VDC I <... -
Page 19: Getting Started
GETTING STARTED Connecting the antenna If the cabinet in which the router has to be installed is made of metal, the antenna has to be installed outside the cabinet; for instance on its top. The antenna must be ordered separately; the models below are available : •... -
Page 20: Installing The Sim Card
GETTING STARTED Installing the SIM card Before installing the SIM card into the router, its PIN code be cleared. The PIN code can be cleared using a usual telephone or a smart phone. Step 1 : Install the SIM card •... -
Page 21: Connecting The Pc To The Html Server
GETTING STARTED Connecting the PC to the Html server First set up or Set up modifications : For the first configuration, PC has to be connected directly to the Ethernet LAN interface of the IPL-3G router. Modifications can be carried out from the Internet using a port forwarding rule, or a remote user PPTP or TLS or L2TP/ IPSec connection or a VPN connection. - Page 22 GETTING STARTED Step1 : Set up the PC connection Select the Windows Start button and Control panel • Double click the network connection icon. • Double click the Network Icon The local area connection status dialog box is displayed. • Click the Properties button. The local area connection properties dialog box is displayed.
-
Page 23: Setting Up The Umts Connection
GETTING STARTED Setting up the UMTS connection • Select the configuration menu, and then WAN interface, and Modem. Select the enable checkbox. Enter the APN string. • Select the configuration menu, and then WAN interface, and Connection. Enter the Login and the password provided by the UMTS provider. If the IPL-3G router must connect to the Internet, let the three checkbox selected : “Obtain an IP address automatically”, “Obtain DNS servers automatically”, “Activate network address translation (NAT)”. - Page 24 The IPL-3G has been designed and is manufactured by ETIC TELECOM 13 Chemin du vieux chêne 38240 MEYLAN FRANCE TEL : + 33 4-76-04-20-05 FAX : + 33 4-76-04-20-01 E-mail : hotline@etictelecom.com Web : www.etictelecom.com...
