ETIC IPL-E User Manual

Hide thumbs Also See for IPL-E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual

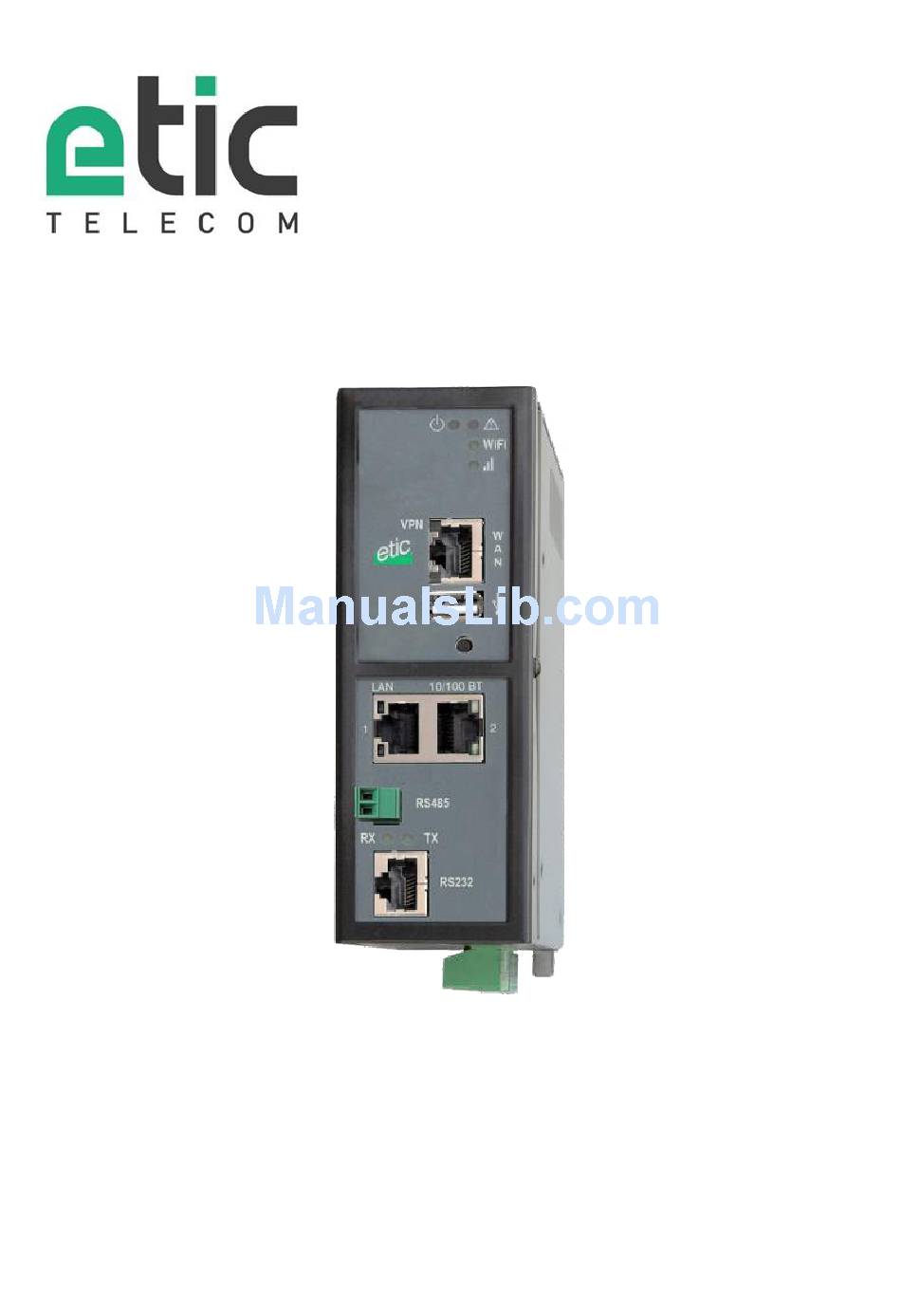

IPL-E
Router Firewall
_________________
USER GUIDE
DOC_DEV_IPL-E_User guide_A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPL-E and is the answer not in the manual?

Questions and answers

Related Manuals for ETIC IPL-E

Summary of Contents for ETIC IPL-E

  • Page 1 IPL-E Router Firewall _________________ USER GUIDE DOC_DEV_IPL-E_User guide_A...
  • Page 3 The IPL-E router is manufactured by ETIC TELECOM 13 Chemin du vieux chêne 38240 MEYLAN FRANCE TEL : + 33 4-76-04-20-00 Hotline : + 33 4-76-04-20-05 FAX : + 33 4-76-04-20-01 E-mail : hotline@etictelecom.com web : www.etictelecom.com...

  • Page 5: Table Of Contents

    Supply voltage ....................24 Digital input and output ................. 25 RS232 ......................25 RS485 connection (IPL-E-220 or IPL-EW-220) ..........25 RS422 isolated interface (IPL-E-260 or IPL-EW-260) ........27 RS485 isolated interface (IPL-E-261 or IPL-EW-261) ........28 Page 5 Router Firewall IPL-E...
  • Page 6 DIAGNOSTIC ........................34 Diagnostic ..................... 34 Logs ......................34 Network status ..................35 Serial gateways status ................36 « Ping » tool ....................36 « WiFi » scanner tool .................. 36 Firmware update .................... 37 Page 6 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 7: Overview

    OVERVIEW Certificate of conformity The manufacturer, ETIC Telecom – 13 chemin du vieux chêne – 38240 Meylan – France, Hereby declares that the listed products Type of device : Ethernet interfaces IP router Reference : IPL-E conforms to the Council Directive 1999/5/EC related to radio and telecommunication terminal equipment.

  • Page 8: Products Identification

    SNMP • • • • • • • • • • DHCP server on the LAN inteface Digital input for alarm email • • • • • HTTPS / HTML / SSH configuration Page 8 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...
  • Page 9 • DHCP server on the LAN inteface Digital input for alarm email • • • • • HTTPS / HTML / SSH configuration Option Référence Service de connexion M2Me_Connect M2Me pack initial Page 9 Router Firewall IPL-E User Guide 9021209-01...

  • Page 10: Data-Sheet

    PPTP / L2TP-IPSec / Open VPN / HTTPS Connection Login & password Certificate X509 M2Me VPN Compliant with the M2Me_Secure VPN client (option) Compliant with the M2Me_Connect mediation service Alarms 1 input : emails or SM (cellular models) Page 10 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...
  • Page 11 Static routes – RIP V2 Source IP @ translation (NAT) IP address Destination IP @ translation (DNAT) translation Port forwarding DHCP LAN interface : Fixed IP @ or DHCP client or DHCP server Page 11 Router Firewall IPL-E User Guide 9021209-01...

  • Page 12: Product Overview

    IP traffic.  4.1 Applications That features in the same product make the IPL-E a top level solution for remote SCADA systems and remote maintenance through the Internet. Remote SCADA system Remote access server...

  • Page 13: Functions

    The solutions include static routes, RIP protocol and address translation (NAT, DNAT) and port forwarding. IPSec & OpenVPN tunnels The IPL-E features IPSec and OpenVPN tunnels to provide a high level of security and also compatibility with existing devices. Remote access server for PCs, tablets and smartphones The IPL-E router can also behave like a remote access server.

  • Page 14: Router Interfaces & Organisation

    OVERVIEW 4.3 Router interfaces & organisation The IPL-E router provides two IP interfaces : The Ethernet WAN interface to connect the router to an Intranet or a company network and the LAN interface to connect the machine. WAN interface : The main WAN interface is the RJ45 WAN connector.

  • Page 15: Installation

    1 hour delay. During 10 seconds 5 flashes A remote user is authorised to connect remotely to the router administration server within a 10 mn delay without entering the login r password 1.3 Connectors Page 15 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...
  • Page 16 TD - 103 Data Emission RD - 104 Data Reception DSR - 107 Data set ready SG - 102 Ground Inutilisé CTS - 106 Clear to send RTS - 105 Request to send Page 16 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...
  • Page 17 RTS - 105 Request to send CTS - 106 Clear to send Out = Signal provided by the router. 2 positions RS485 screw block Position Signal Fonction RS485 polarity A RS485 polarity B Page 17 Router Firewall IPL-E User Guide 9021209-01...
  • Page 18 SW 1 SW 2 The two 470 Ohm polarisation R. are enabled The two 470 Ohm polarisation R. are disabled The 120 Ohm termination R. is enabled The 120 Ohm termination R. is enabled Page 18 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 19: Ipl-E-400 Or Ipl-Ew-400 (Wifi Option)

    INSTALLATION 1.4 IPL-E-400 or IPL-EW-400 (WiFi option) IPL-E-400 IPL-EW-400 LED INDICATORS IPL-E-400 or IPL-EW-400 Designation Function Green The unit is ready Operation Flashing red Hardware default or unit power-up or firmware update in progress No VPN connection in progress Ethernet...

  • Page 20: Ipl-E-220 Or Ipl-Ew-220 (Wifi Option)

    INSTALLATION 1.5 IPL-E-220 or IPL-EW-220 (WiFi option) IPL-E-220 IPL-EW-220 LED INDICATORS IPL-E-400 or IPL-EW-400 Designation Function Green The unit is ready Operation Flashing red Hardware default or unit power-up or firmware update in progress No VPN connection in progress Ethernet...

  • Page 21: Ipl-E-230 Or Ipl-Ew-230 (Wifi Option)

    INSTALLATION 1.6 IPL-E-230 or IPL-EW-230 (WiFi option) IPL-E-230 IPL-EW-230 LED INDICATORS IPL-E-400 or IPL-EW-400 Designation Function Green The unit is ready Operation Flashing red Hardware default or unit power-up or firmware update in progress No VPN connection in progress Ethernet...

  • Page 22: Ipl-E-260 Or Ipl-Ew-260 (Wifi Option)

    INSTALLATION 1.7 IPL-E-260 or IPL-EW-260 (WiFi option) IPL-E-260 IPL-EW-260 LED INDICATORS IPL-E-400 or IPL-EW-400 Designation Function Green The unit is ready Operation Flashing red Hardware default or unit power-up or firmware update in progress No VPN connection in progress Ethernet...

  • Page 23: Ipl-E-261 Or Ipl-Ew-261 (Wifi Option)

    INSTALLATION 1.8 IPL-E-261 or IPL-EW-261 (WiFi option) IPL-E-261 IPL-EW-261 LED INDICATORS IPL-E-400 or IPL-EW-400 Designation Function Green The unit is ready Operation Flashing red Hardware default or unit power-up or firmware update in progress No VPN connection in progress Ethernet...

  • Page 24: Mounting The Product On A Din Rail

    Removing the unit from the DIN rail Cooling To avoid obstructing the airflow around the unit, the spacing must be at least 25 mm above and below, and 10 mm left and right. Supply voltage Page 24 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 25: Digital Input And Output

    To connect a DCE to the router CAB593 SubD 9 female To connect a DTE to the router CAB609 Wires To connect a device providing a specific connector RS485 connection (IPL-E-220 or IPL-EW-220) Page 25 Router Firewall IPL-E User Guide 9021209-01...
  • Page 26 19200 b/s, it is necessary to connect one 120 Ohm matching resistor at each end of the line and two 390 Ohm polarisation resistors at one of the two extremities of the line. Page 26 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 27: Rs422 Isolated Interface (Ipl-E-260 Or Ipl-Ew-260)

    INSTALLATION RS422 isolated interface (IPL-E-260 or IPL-EW-260) The RS422 interface is isolated. When two devices or more are connected to the RS422 interface of the IPL router, the IPL router must be the only device to transmit data on the TX+/TX- line towards all the other devices.

  • Page 28: Rs485 Isolated Interface (Ipl-E-261 Or Ipl-Ew-261)

    INSTALLATION RS485 isolated interface (IPL-E-261 or IPL-EW-261) The RS485 (3 wires : A- / B+ plus the common voltage wire) interface is isolated. The polarisation and termination resistors can be selected with DIP switches. The polarisation résistors must be enabled by one device of the bus.

  • Page 29: Preparing The Setup

    Step 2 : Connect the PC directly to the LAN interface of the router. Step 3 : Launch the HTML browser : http://192.168.0.128 Protecting the access to the administration web server  Select Set-up > Security > Administration rights.  Enter an administration identifier and password. Page 29 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 30: Https Set-Up Modifications Through The Wan Interface

     Press the rear panel push button and, switch-on the power supply.  Keep the push button pressed until the operation led turns red. Remark : The curent configuration is cleared and the factory IP address 192.168.0.128 is restored. Page 30 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 31: Saving Or Restoring A Set Of Parameters

    In a second step, any set stored inside the router and displayed with the Configurations table can be saved as an editable file stored outside the ETIC router. Inversely, a saved file can be loaded to the product Configurations table and then, if necessary, declared as the active set of parameters.

  • Page 32: Configuration Steps

     Remote users connections, the user list and the access rights setup  Serial or USB gateway setup  Firewall setup For detail about the configuration, refer to the IPL routers setup manual refernce 90 234 09. Page 32 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 34: Diagnostic

    These logs registers the detail of the VPN connections Advanced logs That logs registers details about the following events : ADSL events M2Me DHCP VRRP Telnet gateway Alarm emails The filter checkbox allow to display particular classes of events. Page 34 Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A...

  • Page 35: Network Status

    To display the VPN connections page,  Select The Diagnostic > Network status> VPN (IPSec or OpenVPN) menu. This page displays the table of the Open VPN or IPSec VPNs currently connected. Page 35 Router Firewall IPL-E User Guide 9021209-01...

  • Page 36: Serial Gateways Status

    The Wifi scanner displays the main information about each WiFi network : MAC address of the access point, SSID, reception level. Remark : The WiFi interface of the ETIC router needs to be registered as a WiFi client interface. Page 36...

  • Page 37: Firmware Update

    Firmware update The firmware update can be carried-out locally or remotely. If the firmware update operation do not succeed, for instance if the connection fails, the ETIC router restarts with the current firmware. Once the firmware update has been carried-out, the ETIC router restores the previous current set of parameters.
  • Page 38 ETIC TELECOM 13 chemin du vieux Chêne 38240 Meylan France contact@etictelecom.com...
