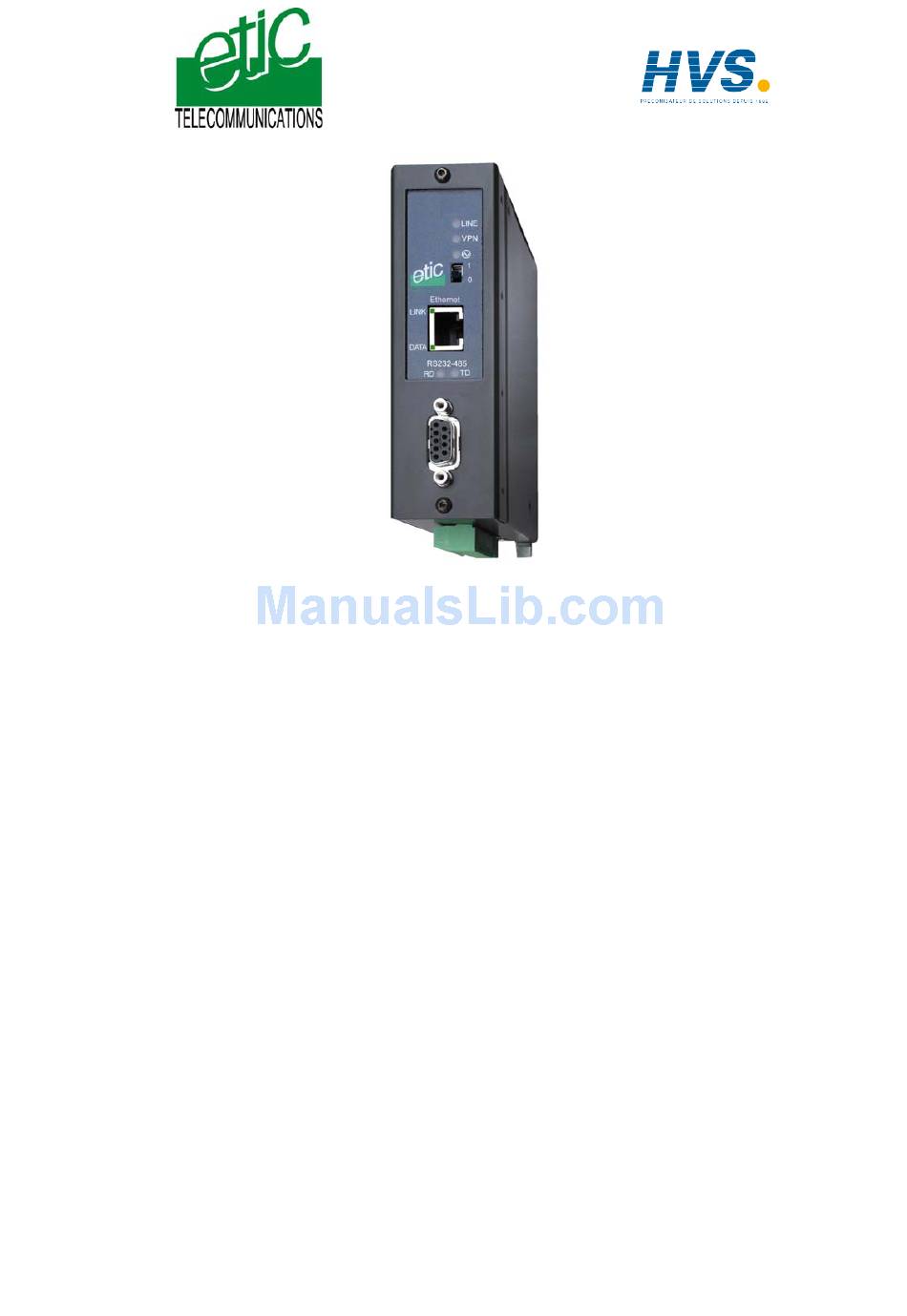

ETIC IPL-I1128 User Manual

Pstn router, isdn router, dedicated line router
Hide thumbs Also See for IPL-I1128:
Table of Contents

Advertisement

Quick Links

Download this manual
IPL-M156 : PSTN router
IPL-I1128: ISDN router
IPL-L134 : Dedicated line router
_________________
User manual
Document reference : 9017109-01
_________________
Distribué par :
Contact :
hvssystem@hvssystem.com
Tél : 0326824929
Fax : 0326851908
Siège social :
2 rue René Laennec
51500 Taissy
France
www.hvssystem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPL-I1128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETIC IPL-I1128

Summary of Contents for ETIC IPL-I1128

  • Page 1 Contact : hvssystem@hvssystem.com Tél : 0326824929 Fax : 0326851908 Siège social : 2 rue René Laennec 51500 Taissy France www.hvssystem.com IPL-M156 : PSTN router IPL-I1128: ISDN router IPL-L134 : Dedicated line router _________________ User manual Document reference : 9017109-01 _________________...
  • Page 2 The IPL-M156 and IPL-I1128 and IPL-L134 routers are manufactured by ETIC TELECOMMUNICATIONS 13 Chemin du vieux chêne 38240 MEYLAN FRANCE TEL : + 33 4-76-04-20-00 FAX : + 33 4-76-04-20-01 E-mail : hotline@etictelecom.com web : www.etictelecom.com User manual ref. 9017109-01...

  • Page 3: Table Of Contents

    CONFIGURATION OVERVIEW ........................ 20 CONNECTING A PC TO THE ETHERNET INTERFACE.......... 20 MODIFYING THE CONFIGURATION PARAMETERS THROUGH THE LAN ..21 WRONG IP ADDRESS OR PASSWORD..............21 ../.. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 3...
  • Page 4 Multicast gateway ..................43 ADVANCED FUNCTIONS ..................45 13.1 Alarms ......................45 13.2 Configuring the web portal ................. 47 13.3 Restricting access to the administration server ........48 ../.. Page 4 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router...
  • Page 5 CONTENT MAINTENANCE DIAGNOSTIC ......................49 SAVING THE PARAMETERS FILE................50 UPDATING THE FIRMWARE..................50 APPENDIX 1 : HTML configuration server IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 5...

  • Page 6: Overview

    Raw TCP client and server, Telnet server, • • • Multicast, Modbus client and server, Unitelway Html Configuration • • • Option software IO Viewer • • • IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 6...

  • Page 7: Specifications

    Source IP @ translation (NAT) Ip address Destination IP @ translation (DNAT) translation Port translation (Port forwarding) Domain name IP address assignment Fixed IP @ or DHCP client or DHCP server IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 7...
  • Page 8 RS232 1200 - 115200 kb/s parity N / E / O Modbus master and slave Raw client et server Telnet Serial to IP gateways Multicast UDP multicast unitelway User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 8...

  • Page 9: Product Overview

    OVERVIEW Product overview The IPL is designed to interconnect safely automated devices over the PSTN or ISDN or dedicated lines. PSTN network ISDN network IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 9...
  • Page 10 If the VPN is established between a remote user PC and an IPL router, the remote user can access to the devices connected to the router. Authentication can be carried out with a pre-shared key or with certificates. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 10...
  • Page 11 GSM network and the Internet. EticFinder software The ETICFinder software is delivered with the product. It detects the ETIC products connected to an Ethernet interface and displays the MAC address and the iP address of each product. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref.

  • Page 13: Installation

    LINK Data activity DATA Bytes transmitted to the RS232 (from the IPL) Bytes received from the RS232 (to the IPL) Lit : Operation Blinking : hardware defect Connectors IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 13...
  • Page 14 Request to send ⇒ CTS 106 Clear to send ⇒ Ring indicator ISDN RJ45 connector IPL-I1128 Polarit Emission to ISDN Reception from ISDN Reception from ISDN Emission to ISDN User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 14...
  • Page 15 An RJ11 PSTN cable can be connected to the RJ45 connector of the IPL-M156 or IPL- L134. The 2 wires of the PSTN or dedicated line must be present on wires 3 and 4 of the RJ11. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 15...

  • Page 16: Dip-Switches

    Ethernet interface The Ethernet interface is a 10 Mb/s interface. To connect a PC directly to the router, use the cross wired red cable provided with the product. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 16...

  • Page 17: Rs232 Interface

    The product features one digital input ; it is not isolated. if the input is opened, an SNMP trap will be sent to the SNMP server is that function has been enabled. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 17...

  • Page 18: Pstn Line (Ipl-M156)

    Important nota : The type of public lines connecting the company PABX to the public network does not matter; it can be PSTN but also ISDN, for instance. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 18...

  • Page 19: Isdn Line (Ipl-I1128)

    INSTALLATION ISDN line (IPL-I1128) The IPL-I1128 is designed to be connected to a ISDN BRI interface (EURO-ISDN compliant). It manages only one B channel providing 64 kb/s data rate. 10 Dedicated line (IPL-L134) The IPL-L134 is designed to be connected to a two wire dedicated line.

  • Page 20: Configuration

    Ethernet cable. Step 4 : Launch the navigator Enter the IP @ of the IPL.. The Home page of the administration server is displayed IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 20...

  • Page 21: Modifying The Configuration Parameters Through The Lan

    Step 1 : Check the DIP switches SW1 is OFF and SW2 OFF to select DHCP / BOOTP operation. Step 2 : Launch ETIC FINDER to detect the IPL over the LAN. Click the product once detected. The Home page of the administration server is displayed.

  • Page 22: Configuration

    If you wish, save the configuration file using the “Save restore“ menu. Assigning an IP address to the LAN interface Click « System » and then « IP protocol». User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 22...

  • Page 23: Modem Configuration

    Check that the “Use default initialisation string” option is selected. • Check that the “Permanent link (Leased Line)” option is not selected. Dedicated line modem (IPL-L134) • Select the “System” menu and then “Modem”. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 23...

  • Page 24: Configuring Connections Between Routers

    It cannot dial towards that remote router. If a connection is an outgoing and ingoing connection, the local IPL dials towards the remote router. It can also accept a call coming from that router. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 24...
  • Page 25 “Idle time-out” parameter (5 s to 60 mn) : Set the time duration of the silence before the router will clear the call. “First packet time-out” parameter (5 s to 60 mn) : IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 25...
  • Page 26 PPP IP address” parameters : Enter the IP address assigned to the PPP interface. If no IP address is entered, the address of the Ethernet interface is assigned automatically. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 26...

  • Page 27: Dedicated Line Connection

    If the connection is declared as an outgoing connection in a router, it must be declared as an ingoing connection in the remote router. The table below explains the parameters to configure in both cases : IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 27...
  • Page 28 “Node login” and “Node password” parameters : Enter the login and the password of the remote router. These login and password are checked by the router when a call is incoming. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 28...
  • Page 29 “Router PPP IP address ” and “Remote router PPP IP address” parameters : Enter the IP address assigned to the PPP interface. If no IP address is entered, the address of the Ethernet interface is assigned automatically. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 29...

  • Page 30: Configuring Static Routes

    Example : Network 4 192.168.40.0 Router 4 192.168.30.128 Network 2 192.168.20.0 Network 3 Router 2 192.168.30.0 192.168.10.1 Network 1 192.168.10.0 Router 3 192.168.30.1 PSTN-ISDN Dedicated line Router 1 192.168.10.128 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 30...

  • Page 31: Remote Users Connection

    The IPL router registers a users list; 25 remote users can be stored in the users list. Attention : Coming from factory, a default user is registered; his login is admin and the password is also admin. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 31...

  • Page 32: Configuring The Users List

    IP @ assigned to the router by the provider. (See OPERATION chapter). Firewall filter Select the filter to assign to the user to restrict his access rights. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 32...

  • Page 33: Restricting The Rights Of A Remote User

    • “Drop all the IP frames not described by one of the rules”; • “Accept all the IP frames not described by one of the rules”. The first policy is generally the right one because it is cautious. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 33...

  • Page 34: Configuration

    (also called TCP port). • Add other rules if necessary. • Click OK when the filter is complete ; the updated filters list is displayed. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 34...
  • Page 35 CONFIGURATION IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 35...
  • Page 36 Among the users select a user to which you want to assign a filter ; and click modify ; the user window is displayed. • Assign a filter to the user ; click OK and save. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 36...

  • Page 37: Serial To Ip Gateway

    To exchange serial data between a great number of serial and IP devices, through an IP network, using the multicast technology. Unitelway slave : To connect a serial unitelway master to an IP network. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 37...

  • Page 38: Modbus Gateway

    Select the period at which the gateway will send request to the slaves PLC. Timeout waiting for the answer : Set up the timeout the gateway has to wait for the answer of the modbus slave answer. Local retry : User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 38...
  • Page 39 Set the time the gateway will wait before disconnecting the TCP link if no characters are detected. TCP port number : Set the port number the gateway has to use. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 39...
  • Page 40 The modbus client gateway allows to transmit modbus requests from the serial modbus master device to any modbus slave device, more precisely called “ modbus server”, located on the IP network. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 40...

  • Page 41: Raw Tcp Gateway

    Set up the delay the gateway will wait before declaring complete a string received from the asynchronous device. Once declared complete, the gateway will transmit the string to the IP network. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 41...
  • Page 42 Set up the delay the gateway will wait before declaring complete a string received from the asynchronous device. Once declared complete, the gateway will transmit the string to the IP network. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 42...

  • Page 43: Multicast Gateway

    Multicast gateway does not send an IP frame to each destination IP gateway. Serial data is encapsulated in a unique IP frame transmitted to a multicast address received by all the gateways or IP devices. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 43...
  • Page 44 The source address for multicast datagrams is always the unicast source address. 2/ The multicast gateway can be used through an Ethernet LAN; but it is not easy to send across routers. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 44...

  • Page 45: Advanced Functions

    SNMP network management IP address Enter the IP address of the management platform SysName & SysLocation That fields allow to identify the source device. Example : Sysname : etic Syslocation : France IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 45...
  • Page 46 Select the time the input has to stay in its alarm state to be taken into account. Alarm destination Select the user to whom the email must be sent. Text to send Enter the email text. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 46...

  • Page 47: Configuring The Web Portal

    Ip address assigned to the IPL router. In that case, the administration server, usually can be displayed at the same address but at the port number 8080 instead of 80 when the web portal page option is not selected. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 47...

  • Page 48: Restricting Access To The Administration Server

    2 OFF. Attention : When the micro-switch 1 is set ON, and the micro-switches 2 is set OFF, the factory IP address 192.168.0.128 is restored. User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 48...

  • Page 49: Diagnostic

    That screen enables to send a ping frame to an IP address. • IO control That screen displays the status of the digital input and output and allows to set ON or OFF the alarm digital output. IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 49...

  • Page 50: Saving The Parameters File

    An Ethernet cable or a switch The FTP server software which can be downloaded from the « firmware page » of the ETIC « download area » web server. Step 2 : Download the release of the firmware from our download...
  • Page 51 Step 4 : Update the firmware Launch the web browser Enter the IP address of the ETIC product ; the home page of the ETIC configuration server is displayed. Select the "System" menu and then " firmware Update". In the field "IP address of the TFTP server", enter the IP address of your PC.
  • Page 53 To restrict access to the administration server Administration To restrict access to devices of the LAN Firewall To restrict access to the Internet To set the VPNs parameters and register certificates IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 53...
  • Page 54 Table of routes To ping a machine Ping IO control To display the IOs status Resume To display the connections To display the firmware and hardware identification About User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router Page 54...
  • Page 56 Distribué par : Contact : hvssystem@hvssystem.com Tél : 0326824929 Fax : 0326851908 Siège social : 2 rue René Laennec 51500 Taissy France www.hvssystem.com 13, Chemin du Vieux Chêne 38240 Meylan France Tel : 33 4 76 04 20 00 Fax : 33 4 76 04 20 01 E-mail : contact@etictelecom.com Web : www.etictelecom.com...
