IPL
Router - Firewall
_________________
USER GUIDE
_________________
DOC_DEV_IPL_User Guide_C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPL-CW-2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ETIC IPL-CW-2 Series

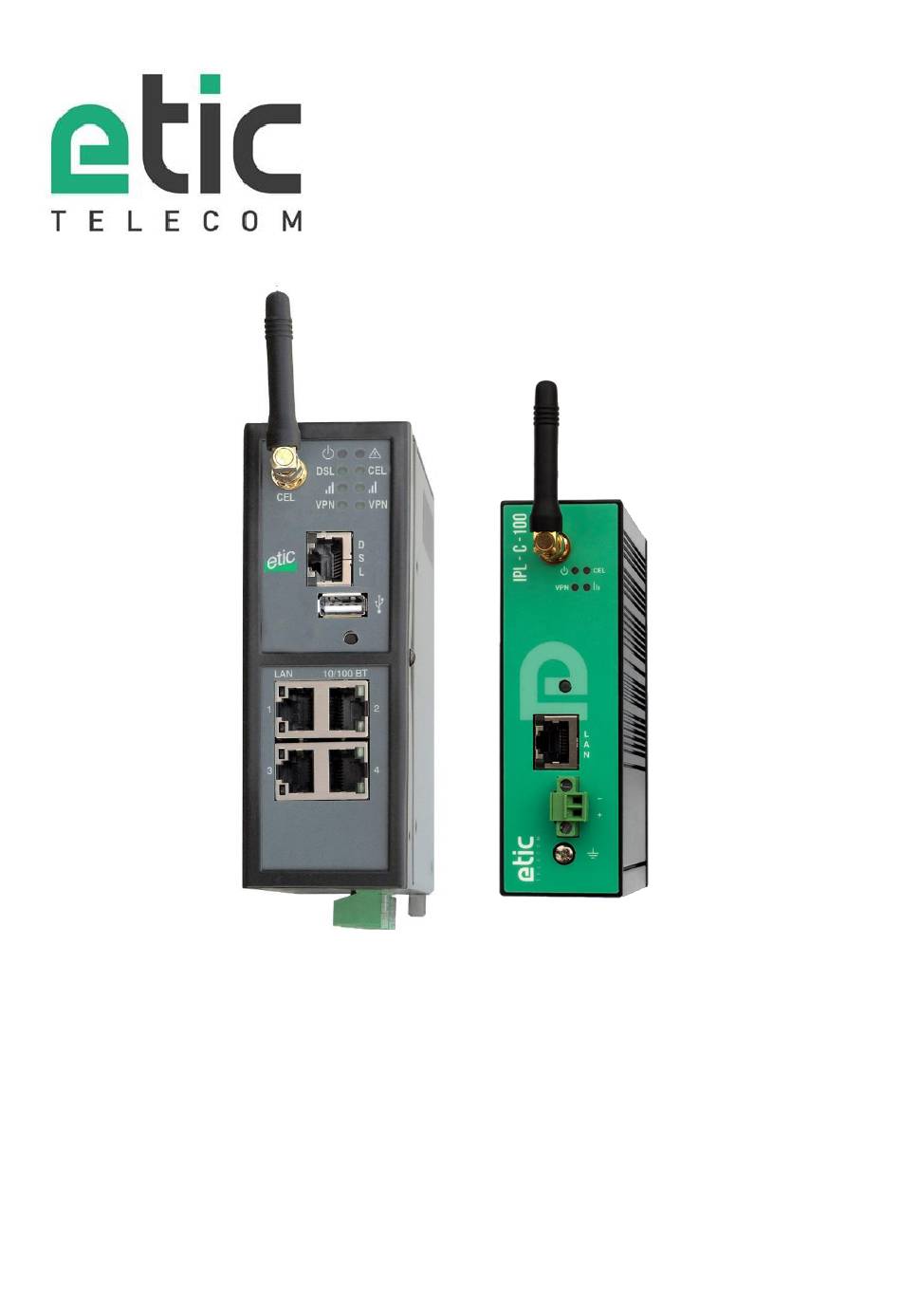

  • Page 1 Router - Firewall _________________ USER GUIDE _________________ DOC_DEV_IPL_User Guide_C...
  • Page 2 The IPL Industrial Router family is manufactured by ETIC TELECOM 13 Chemin du vieux chêne 38240 MEYLAN FRANCE TEL : + (33) (0)4-76-04-20-05 E-mail : hotline@etictelecom.com web : www.etictelecom.com Page 2 DOC_DEV_IPL_User Guide_C...
  • Page 3 UE DECLARATION OF CONFORMITY The manufacturer, ETIC Telecom – 13 chemin du vieux chêne – 38240 Meylan – France, Hereby declares under sole responsibility that the listed devices conform to the Radio Equipment Directive (RED) 2014/53/UE, the Restriction of the use of certain Hazardous Substances (RoHS) Directive 2011/65/UE.
  • Page 4 Caution: ETIC Telecom has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS OVERVIEW ............................. 7 Purpose of this manual ............................ 7 Products Identification ............................. 7 Specifications..............................9 Product overview ............................12 Applications ............................12 IPL functions ............................14 INSTALLATION ........................... 17 Description ..............................17 Dimensions ............................17 Connectors ............................18 Push-buttons ............................
  • Page 7: Overview

    OVERVIEW OVERVIEW Purpose of this manual The present user guide describes the features and the installation of the IPL Industrial Router family. In this document, these products are named « IPL ». Products Identification This family of Industrial Router consists of these models: IPL-C-100, IPL-E-100, IPL-EW-100 IPL-E-400, IPL-E-2XX, IPL-EW-400, IPL-EW-2XX, IPL-A-400, IPL-A-2XX, IPL-AW-400, IPL-AW-2XX,...
  • Page 8 OVERVIEW Models with serial interface code: RS232 RS485 RS422 RS485 isolated isolated In the remainder of this document the term IPL-X is used indifferently for IPL-C, IPL-E, IPL-EW, IPL-A, IPL-AW and IPL-CW. Page 8 DOC_DEV_IPL_User Guide_C...
  • Page 9: Specifications

    OVERVIEW Specifications General characteristics IPL-X-100: 120 x 37 x 88 mm (h,w,d) Dimensions Other IPL: 135 x 47 x 115 mm (h,w,d) Max 0.65 kg Weight Metallic Casing IPL- X-100: IP41 – IEC60529 Other IPL: IP20 – IEC60529 DIN rail mounting Non-operating: -40°/ + 85°C Temperature Operating: -20°/ +70°C...
  • Page 10 Address translation (DNAT, SNAT, NAT 1:1) IP@ assignment WAN interface: DHCP client or fixed IP LAN interface: DHCP server WAN interface: compatible with DYNDNS, No-IP or ETIC DNS LAN interface: relay & server VRRP RFC 3768 protocol Redundancy Multi WAN for backup on some IPL models...
  • Page 11 RS485 : 2 points Phoenix connector 1 port USB host PPP client Misc. SNMP Supported MIBs: RFC1213-MIB (MIB-2) ADSL-LINE-MIB ETIC-TELECOM-MIB-1 SNMP traps Web server Configuration Save and restore configurations Management Reset product to return to factory configuration Page 11 DOC_DEV_IPL_User Guide_C...
  • Page 12: Product Overview

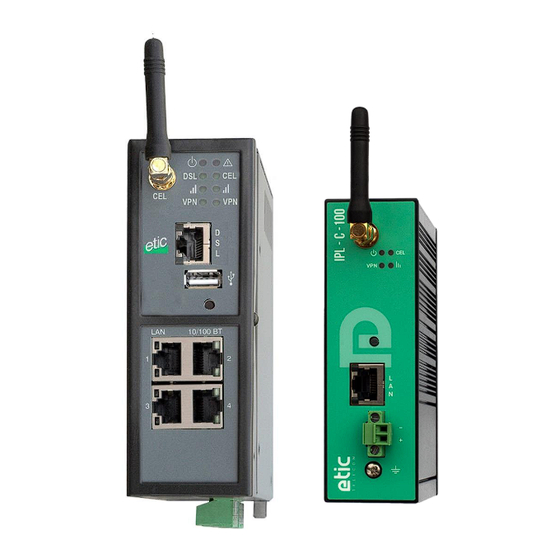

    OVERVIEW Product overview The IPL is both a router, a firewall and a remote access server. It is designed to connect industrial machines on an intranet or the Internet with a high level of security. It provides depending on model : IPL-E : A WAN Ethernet interface IPL-A : An ADSL modem IPL-C : A 3G/4G cellular modem...
  • Page 13 OVERVIEW High availability SCADA system with an IPL-DAC. Remote access server for remote operation A remote user can connect to any device in the system using a PC, tablet or a smartphone. His access rights may be limited according to his identity.
  • Page 14: Ipl Functions

    OVERVIEW IPL functions IP router The IPL-C provides powerful, flexible and comprehensive solutions to route IP packets from one network to other networks : Static routes, to reach nested networks, Network address translation d‘adresse (NAT, DNAT, port forwarding), Routing protocol (RIP), Domain name management DNS et DynDNS.
  • Page 15 Configuration The IPL is configured using an HTML browser (HTTP or HTTPS). EticFinder The ETICFinder software can easily detect all ETIC branded products connected to an Ethernet network to display their MAC address and their IP address. Serial gateway Optionally, the IPL provides 1 or 2 serial RS232, RS485, RS422 interfaces.
  • Page 17: Installation

    INSTALLATION INSTALLATION Description Dimensions All models except IPL-X-100 IPL-X-100 88 mm 35 mm Din rail axis Page 17 DOC_DEV_IPL_User Guide_C...
  • Page 18: Connectors

    INSTALLATION Connectors IPL-E-400 IPL-EW-400 IPL-A-400 IPL-AW-400 Page 18 DOC_DEV_IPL_User Guide_C...
  • Page 19 INSTALLATION IPL-C-400 IPL-CW-400 Page 19 DOC_DEV_IPL_User Guide_C...
  • Page 20 INSTALLATION IPL-DEC-400 IPL-DAC-400 Cellulaire ant. Ethernet WAN Push button B1 Auxiliary ant. Ethernet Reset push button on the rear pannel 4 pos. screw block 1 digital input 1 digital output Ground terminal Double 2 pos. Screw block Sup. voltage IPL-DAE-400 Page 20 DOC_DEV_IPL_User Guide_C...
  • Page 21 INSTALLATION Serial interfaces IPL-X-220 IPL-X-230 Ethernet Ethernet RS485 (2 wires) RS232 RS232 RS232 IPL-X-260 IPL-X-261 Ethernet Ethernet RS485 isolated RS422 isolated (3 wires) (4 wires) DIP switches DIP switches Page 21 DOC_DEV_IPL_User Guide_C...
  • Page 22 INSTALLATION IPL-E-100 IPL-EW-100 Wi-Fi Ethernet WAN Ethernet WAN Push button B1 Push button B1 Ethernet LAN Ethernet LAN 2 pos. screw block 2 pos. screw block Power supply Power supply Reset push button Reset push button on the rear pannel on the rear pannel Ground terminal Ground terminal...
  • Page 23 INSTALLATION All models except IPL-X-100 Ground terminal Description Symbol FASTON male lug 6.35 mm Ground terminal Description Symbol M4 screw terminal All models except IPL-X-100 2 positions screw terminal: Supply voltage 1 Position 1 at back – Protected against reverse polarity Position Signal Function...
  • Page 24 INSTALLATION Antenna connectors Antenna Network Type Observation Cellular SMA female 3G et 4G Cellular SMA female To improve the 4G transmission data rate, 2 antennas can be connected (RAS-EC-400 -LE and RAS-EC-220-LE only) Wi-Fi Wi-Fi RP-SMA female Reverse polarity connector compliant with Wi-Fi antennas. IPL-A, IPL-DAC, IPL-DAE ADSL RJ45 connector Position...
  • Page 25 INSTALLATION IPL-X-220 et IPL-X-230 RJ45 connector : RS232 To connect a DCE Position Signal Direction Function RJ45 DTR - 108 Data terminal ready TD - 103 Data Emission RD - 104 Data Reception DSR - 107 Data set ready SG - 102 Ground Not used CTS - 106...
  • Page 26: Push-Buttons

    INSTALLATION Push-buttons Rear panel push-button Pressing the PB Function During operation Flashing red Temporary return to the factory configuration. (IP address 192.168.0.128) The current configuration is not lost. During power-up Flashing red Return to the factory configuration. The current configuration is deleted except if it has been saved into a file.
  • Page 27: Led Indicators

    INSTALLATION LED indicators LED indicators Depending on models Function Description Operation Power off Steady green The unit is ready Slow blinking green The unit is busy Steady red Startup (30s) – Hardware or software failure or SIM card missing or memory flash drive missing Fast blinking red Firmware download in progress Application...
  • Page 28: Safety Instructions

    INSTALLATION Safety instructions The product shall be installed in a fire electrical resistant cabinet by a qualified operator. The product shall be connected only to equipment that complies with the IEC60950-1 or IEC62368-1 standards and that meets the following classifications: •...
  • Page 29: Din Rail Mounting

    INSTALLATION DIN rail mounting Mounting the unit on the 35 mm horizontal DIN rail Removing the unit from the DIN rail Cooling The product is designed to be mounted on a 35mm DIN rail. To avoid obstructing the airflow around the unit, the spacing must be at least 25 mm above and below, and 10 mm left and right.
  • Page 30: Power Supply

    INSTALLATION Power supply All models except IPL-X-100 : These products provide a dual power inputs allowing a redundancy power supply. The supply voltage must be regulated and strictly between 10 and 60 Volt DC (nominal: 12 – 48 VDC). At power up the inrush current can reach 20 A for 100 µs. IPL-X-100 : These products provide a single power input.
  • Page 31: Rs422 Isolated Serial Connection (Ipl-X-260)

    INSTALLATION RS422 isolated serial connection (IPL-X-260) The polarization and termination resistors can be selected with DIP switches. The termination resistor must be enabled when the product is located at the extremity of the RS422 bus. The polarization resistors must be enabled by one device of the bus.
  • Page 32: Rs485 Isolated Serial Connection (Ipl-X-261)

    INSTALLATION RS485 isolated serial connection (IPL-X-261) The polarization and termination resistors can be selected with DIP switches. The termination resistor must be enabled when the product is located at the extremity of the RS485 bus. The polarization resistors must be enabled by one device of the bus.
  • Page 33: Digital Input And Output

    INSTALLATION Digital input and output To check that the input and the output are IPL router correctly wired : Digital output In the menu, select Digital input isolated Diagnostics > Hardware > Input/Output Non isolated polarized The status of the input is displayed and the output can be switched ON or OFF.
  • Page 34: Connecting The Ipl To The Cellular Network

    INSTALLATION IP address : The IP address assigned by the ISP to the ADSL interface of the IPL can be a fixed or a dynamic public IP address. If it is dynamic, it changes frequently; for instance at each ADSL connection. It is why, the router which owns a dynamic IP address can only initiate the communication (initiate a VPN for instance) towards a router owning a fixed IP address.
  • Page 35: Cellular Antenna

    INSTALLATION 13.2 Cellular antenna The antenna shall not be installed inside metal cases. The antenna is supplied separately. Use only an approved antenna. We provide a complete catalog of cellular antennas. 13.3 Coaxial cable If necessary, the antenna can be connected to the IPL through a coaxial cable. The signal attenuation in a usual coaxial cable is 0.2 to 0.4 dB / m, that is to say 2 to 4 dB for a 10 meters long cable.
  • Page 36: Installing The Sim Card

    INSTALLATION 13.5 Installing the SIM card All cellular IPL models except IPL-C-100, These models provide two SIM card holders. If you use only one SIM card, use the SIM card holder Nr 1 (at left on the pictures). Installing the SIM card: •...
  • Page 37: Controlling The Conformance Of The Connection

    INSTALLATION 13.6 Controlling the conformance of the connection After installing and setting up the IPL, control the conformance of the connection: Reception level The reception level must be better than -90 dBm (two flashes of the reception level led indicator). See the table below.
  • Page 39: Preparing The Setup

    PREPARING THE SETUP PREPARING THE SETUP Connecting a PC for configuration Overview The IPL is configured using a PC with an HTML browser. No additional software is required. Online help: For most pages of the administration server an help page is available by clicking located at the top right of the page.
  • Page 40: First Configuration

    PREPARING THE SETUP First configuration Step 1: Create or modify the PC TCP/IP connection Assign to the PC an IP address different but consistent with the factory IP address of the IPL. For the first configuration, assign for instance 192.168.0.1 to the PC. Step 2: Connect the PC to the IPL Connect the PC directly to the IPL with any Ethernet cable (straight or cross-wired);...
  • Page 41: Access To The Administration Server Through The Wan Interface

    PREPARING THE SETUP Access to the administration server through the WAN interface To allow the access to the administration server through the WAN interface: • In the menu, choose Setup > Security > Administration rights. • Enter the username and the password. •...
  • Page 42: Temporary Return To The Factory Settings

    EticFinder can be used. This software detects all ETIC branded products on a local network. After starting the software, click on the "Search" button, and when the product list is displayed, double-click on the product address to access the html server.
  • Page 43: Protecting The Access To The Administration Server

    PREPARING THE SETUP Protecting the access to the administration server • In the menu, choose Setup > Security > Administration rights • Enter a user name and password to protect the administration server. • Tick the Password protect the web site access checkbox If the username and password to access the administration server are lost, you have to temporarily return to...
  • Page 44 13, Chemin du Vieux Chêne 38240 Meylan - France Tel : +33 (0)4 76 04 20 00 contact@etictelecom.com www.etictelecom.com...
