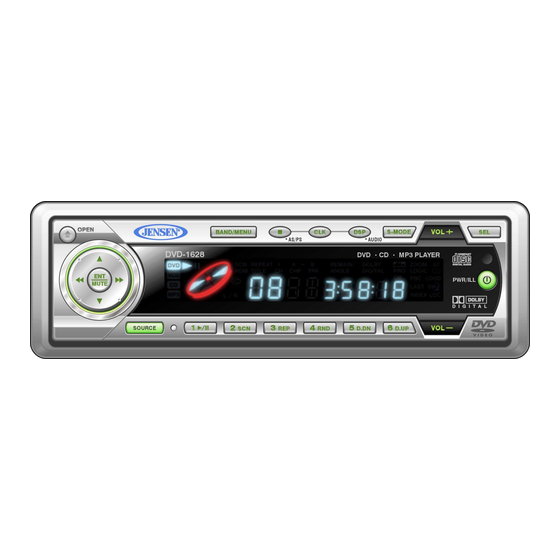

Jensen DV1628 Owner's Manual
  1. Manuals
  2. Brands
  3. Jensen Manuals
  4. Car Stereo System
  5. DV1628
  6. Owner's manual

Jensen DV1628 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Thank you!
Thank you for choosing a JENSEN product. We ve tried to make the
instructions in this owner s manual clear and easy to follow. If you take a few
minutes to look through it, you ll learn how to use all of the features of your
new JENSEN AM/FM/CD/DVD player for maximum enjoyment.
Installation...........................................................................................1
Troubleshooting..................................................................................3
Operation .............................................................................................4
Specifications......................................................................................16
Warranty.............................................................................................17
DV1628
Owner's Manual

Installation:

Getting Started.
It is a good idea to read all of the instructions before you begin the
installation.
Tools and supplies needed:
•
Flat and Phillips screwdrivers
•
Wire cutters and strippers
•
Tools to remove existing radio
•
Electrical tape
•
Crimping tool
•
Volt meter/ Test light
•
Crimp connections
•
Speaker Requirements: Only connect speakers rated in the load
impedance range of 4 Ohms. Speakers with a load impedance less
than 4 Ohms could damage the unit
1. Prepare:
•
Disconnect battery. Before you begin always disconnect the
battery s negative terminal

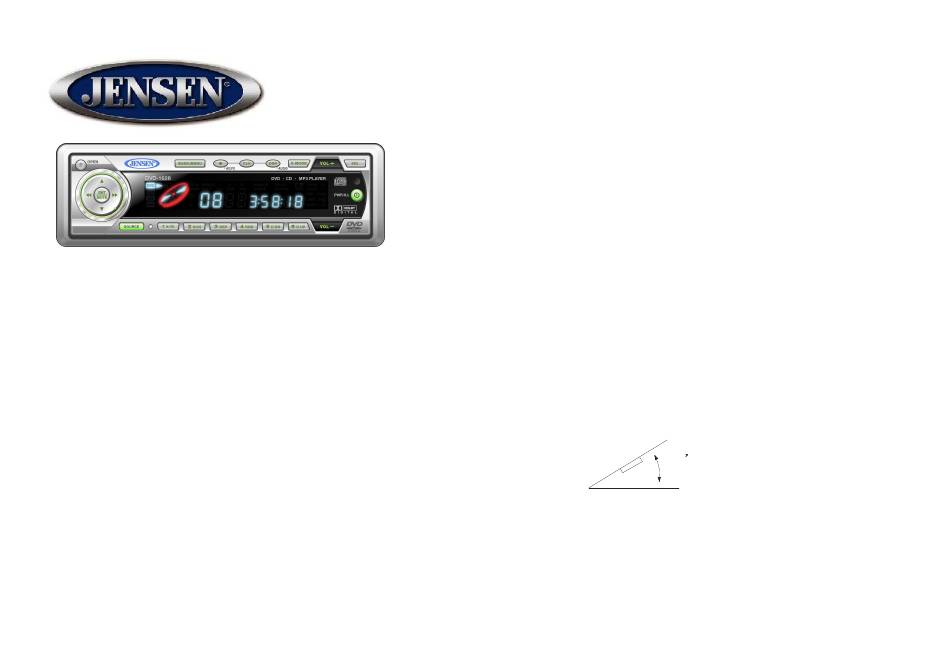

2. Mounting angle:
•
Do not exceed a 30¡ mounting angle. Improper operation of the
unit could occur if the mounting angle is exceeded.
3. Removal of factory radio or DV1628:
1
3 0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DV1628 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jensen DV1628

Summary of Contents for Jensen DV1628

  • Page 1: Table Of Contents

    • Speaker Requirements: Only connect speakers rated in the load Thank you for choosing a JENSEN product. We ve tried to make the impedance range of 4 Ohms. Speakers with a load impedance less instructions in this owner s manual clear and easy to follow. If you take a few...
  • Page 2 • Use factory radio or DV1628 removal tools to remove the radio from the DIN opening. ANTENNA FIGURE1 EXTERNAL MUTE KEY IN SUB OUT (VARIABLE PRE-AMP) LEFT STEREO OUT (FIXED PRE-AMP) RIGHT STEREO OUT (FIXED PRE-AMP) VIDEO IN LEFT STEREO IN AUX IN 4.

  • Page 3: Troubleshooting

    Troubleshooting: ERROR CORRECTIVE PROBLEM CAUSE DISPLAY ACTION Check power CDP and CDC Does not No power to connection with operate, Yellow wire, ERR1 appears Mechanism Multi-meter. Check Press Reset button. display does No power to on display Error fuse for continuity not light.

  • Page 4: Operation

    Source: Operation: Press the source button to toggle between Radio, CD/DVD, CDC/DVDC, and Aux mode. (NOTE: CDC/DVDC mode is active only if a changer is 1. Front Panel / Remote Control connected. This source will be skipped if a changer is not •...
  • Page 5 toggle between EQ settings, each press will toggle from Flat, Classic, Pop, Rock, to off. Angle: Allows the viewer to view the DVD at different angles if the DVD is recorded with this feature. Press the angle button while the DVD is Stopped. Then to adjust the brightness and contrast press the levels.
  • Page 6 • Front Panel removal: 2. MP3 Compatible: Press the open button #3. This unit supports the following MP3 CD formats: Press the middle release button and pull the panel straight • out. Joliet • Romeo • ISO9660 3. Smart Mode function: The Smart Mode feature allows the user to listen to two different audio sources at the same time.
  • Page 7 General Setup Cont.: Initial Setup: TV Display: Press the Setup #18 button to enter the Setup mode. Selects the appropriate TV aspect ratio, 4:3 or 16:9 SETUP MENU MAIN PAGE • Normal / PS Pan and Scan for 4:3 aspect ratio. If selected while using GENERAL SETUP a 16:9 TV, the left and right edges will be cut off.
  • Page 8 PIC Mode: Angle Mark: -- GENERAL PAGE -- -- GENERAL PAGE -- TV DISPLAY TV DISPLAY TV TYPE TV TYPE PIC MODE AUTO PIC MODE ANGLE MARK FILM ANGLE MARK OSD LANG VIDEO OSD LANG CAPTIONS SMART CAPTIONS SSMART MAIN PAGE MAIN PAGE •...
  • Page 9 OSD Language Setup: Speaker Setup: -- GENERAL PAGE -- SETUP MENU MAIN PAGE ENGLISH TV DISPLAY GENERAL SETUP FRENCH TV TYPE SPEAKER SETUP GERMAN PIC MODE AUDIO SETUP ANGLE MARK PREFERENCES OSD LANG CAPTIONS SPANISH EXIT SETUP MAIN PAGE Down Mix: Selects the Language that the OSD will be displayed in.
  • Page 10 Speaker selection: DOWNMIX DOWNMIX CENTER CENTER REAR 15MS REAR SUBWOOFER SUBWOOFER CNTR DELAY CNTR DELAY REAR DELAY REAR DELAY TEST TONE TEST TONE BASS BASS MAIN PAGE MAIN PAGE Highlight the desired speaker selection then the ON / OFF Selection to turn the desired speaker ON or OFF. Individual speaker DOWNMIX selection is active only in Downmix mode.
  • Page 11 AUDIO SETUP: -- DOLBY DIGITAL SETUP -- DOWNMIX SPDIF CENTER OP MODE DUAL MONO REAR D R C SUBWOOFER LPCM OUTPUT CNTR DELAY MAIN PAGE REAR DELAY TEST TONE BASS SPDIF - Turns the SPDIF optical output Off and On MAIN PAGE -- DOLBY DIGITAL SETUP -- SPDIF...
  • Page 12 -- DOLBY DIGITAL SETUP -- -- DOLBY DIGITAL SETUP -- SPDIF FULL SPDIF OP MODE OP MODE 6 / 8 DUAL MONO DUAL MONO STEREO D R C D R C CH1 MONO 4 / 8 LPCM OUTPUT LPCM OUTPUT CH2 MONO 2 / 8 MIX - MONO...
  • Page 13 -- PREFERENCES PAGE -- AUDIO Language Setup screens: SUBTITLE ENGLISH DISC MENU FRENCH -- PREFERENCES PAGE -- LOCALE SPANISH AUDIO ENGLISH PARENTAL JAPANESE SUBTITLE FRENCH PASSWORD CHINESE DISC MENU SPANISH SMART NAV GERMAN LOCALE CHINESE DEFAULTS ITALIAN PARENTAL JAPANESE MAIN PAGE PASSWORD GERMAN SMART NAV...
  • Page 14 Setting a new password — Select change and press enter. Type in the old Parental Controls: password and press enter. The factory default password is 3308. Type in a -- PREFERENCES PAGE -- new 4 digit password. Smart NAV: LANGUAGE SUBTITLE -- PREFERENCES PAGE -- DISC MENU...
  • Page 15 Default Table: WIDE TV DISPLAY MULTI TV TYPE AUTO PIC MODE GENERAL SETUP ANGLE MARK OSD LANGUAGE ENGLISH CAPTION SPEAKER SETUP DOWNMIX SPDIF LINE MODE OP MODE DUAL MONO STEREO AUDIO SETUP LPCM 96K LPCM OUTPUT ENGLISH AUDIO SUBTITLE ENGLISH DISC MENU ENGLISH LOCALE...

  • Page 16: Specifications

    GENERAL SPECIFICATIONS: Frequency coverage : 522 to 1620 KHz (Europe Version) : 530 to 1710KHz (USA Version) Power Supply Requirements : DC 12 Volts, Negative Ground : 450 KHz Chassis Dimensiions(mm) : 178(W) x 160(D) x 50(H) Sensitivity (S/N = 20 dB) : <35 dBu Tone Controls - Bass (at 100 HZ)

  • Page 17: Warranty

    WARRANTY This warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY 90 DAY / 12 MONTH LIMITED OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WARRANTY. ANY ACTION FOR BREECH OF ANY WARRANTY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT...
  • Page 18 www.asaelectronics.com 88-V1621-13...
