7
8
5 Nm
Mounting Height
max: 15 m
Cx. S = 0.057 m
2
Instruction for Installation and Utilization of
EN
G314PJ45
G314PJ45
Ø42 mm
Ø42 mm
Cat. No.
W
(kg)
M314MU3LED6730-S
7.4
M314MU3LED6740-S
7.4
M314MU4LED7730-S
7.4
M314MU4LED7740-S
7.4
M314MU4LED9730-S
7.7
M314MU4LED9740-S
7.7
1- For proper utilization of this product and safety, it is mandatory to closely
comply with the directions and notes in this instruction and guide.
2- Earth connection as provided is mandatory.
3- Do not directly touch or impact LED module.
4- Do not stare at LED light source.
5- The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person. Always switch
off the power prior to installa-tion, maintenance or repair activities.
No. Minutes:
CM-94-452
Doc. No.
W-CM011/01
Execution Date:

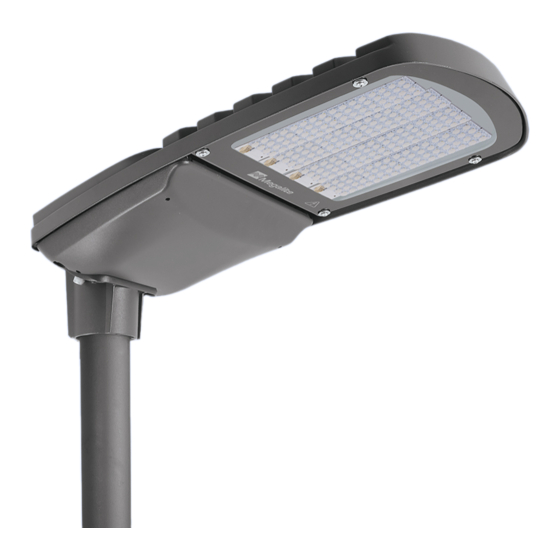

HELIUS M
407
Ø42/48/60
05/09/2015
Tracking Code: 1400-2460
Advertisement
Table of Contents
Related Manuals for MegaLite HELIUS M
Summary of Contents for MegaLite HELIUS M
- Page 1 HELIUS M Instruction for Installation and Utilization of G314PJ45 G314PJ45 Ø42 mm Ø42 mm 5 Nm Mounting Height max: 15 m Cat. No. (kg) M314MU3LED6730-S Cx. S = 0.057 m M314MU3LED6740-S M314MU4LED7730-S Ø42/48/60 M314MU4LED7740-S M314MU4LED9730-S M314MU4LED9740-S 1- For proper utilization of this product and safety, it is mandatory to closely comply with the directions and notes in this instruction and guide.
- Page 2 Open the luminaire door: Horizontal pole mounting: 10 Nm 10 Nm Up to ±15 degrees angle adjustment, Bubble level feature to precisely align luminaire with horizontal plane Vertical pole mounting: 10 Nm 10 Nm Up to ±15 degrees angle adjustment Electrical connections: 7 mm max.120 mm...
