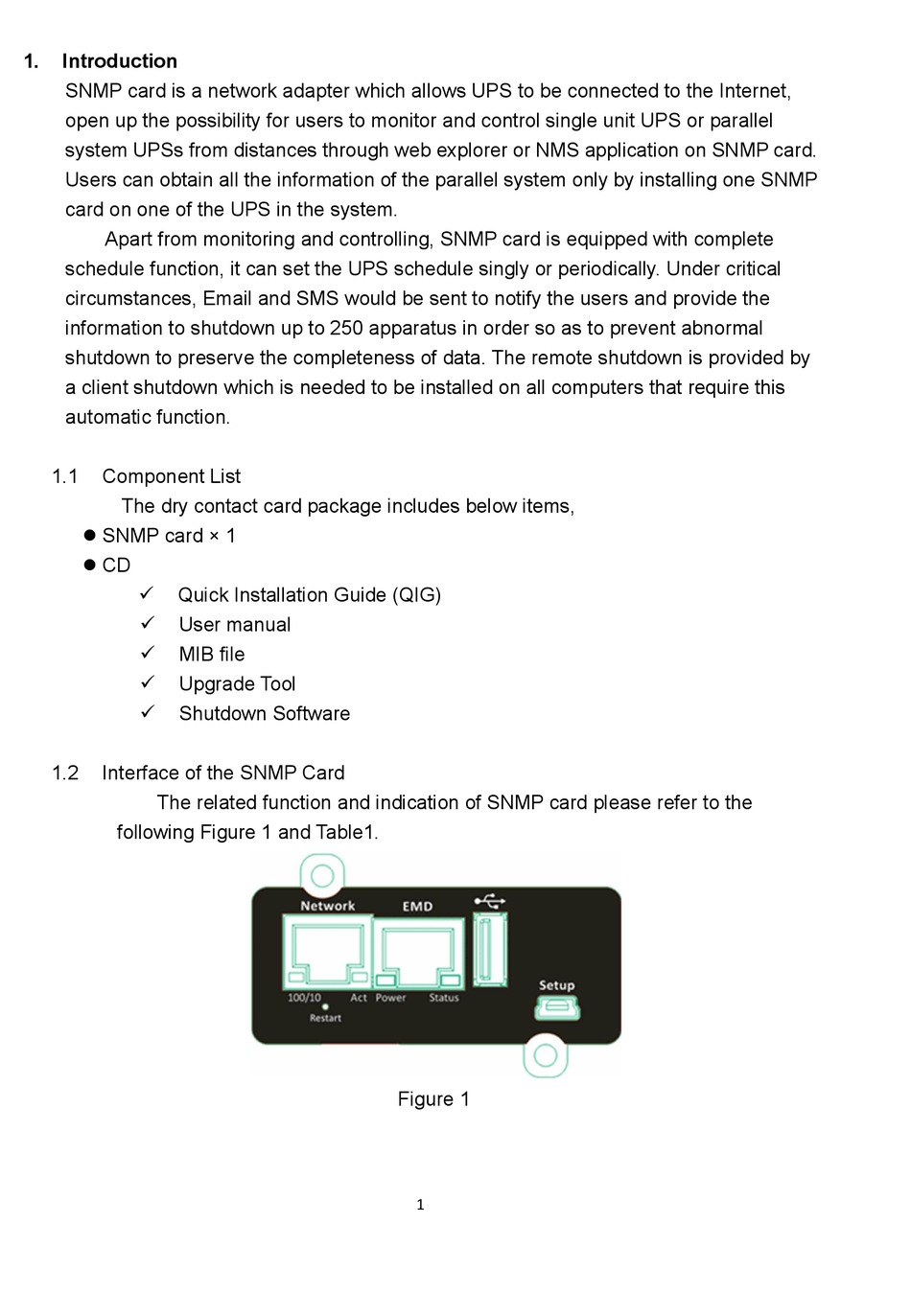

1.

Introduction

SNMP card is a network adapter which allows UPS to be connected to the Internet,
open up the possibility for users to monitor and control single unit UPS or parallel
system UPSs from distances through web explorer or NMS application on SNMP card.
Users can obtain all the information of the parallel system only by installing one SNMP
card on one of the UPS in the system.
Apart from monitoring and controlling, SNMP card is equipped with complete
schedule function, it can set the UPS schedule singly or periodically. Under critical
circumstances, Email and SMS would be sent to notify the users and provide the
information to shutdown up to 250 apparatus in order so as to prevent abnormal
shutdown to preserve the completeness of data. The remote shutdown is provided by
a client shutdown which is needed to be installed on all computers that require this
automatic function.
1.1

Component List

The dry contact card package includes below items,
 SNMP card × 1
 CD
 Quick Installation Guide (QIG)




1.2

Interface of the SNMP Card

The related function and indication of SNMP card please refer to the
following Figure 1 and Table1.
User manual
MIB file
Upgrade Tool
Shutdown Software
Figure 1
1
