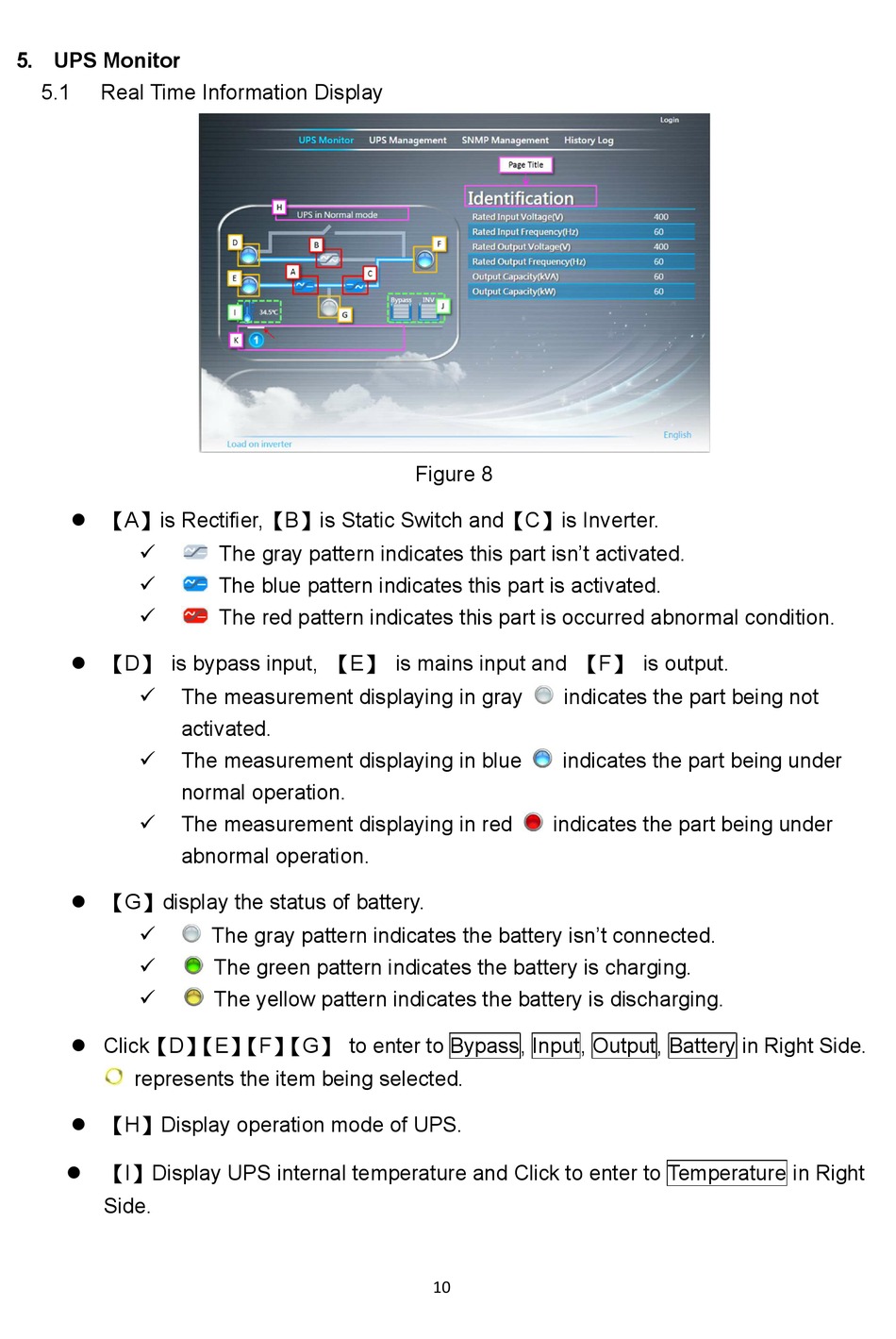

5. UPS Monitor

5.1

Real Time Information Display

 【A】is Rectifier,【B】is Static Switch and【C】is Inverter.



 【D】 is bypass input, 【E】 is mains input and 【F】 is output.
 The measurement displaying in gray
activated.
The measurement displaying in blue

normal operation.
 The measurement displaying in red
abnormal operation.
 【G】display the status of battery.



 Click【D】 【E】 【F】 【G】 to enter to Bypass, Input, Output, Battery in Right Side.
represents the item being selected.
 【H】Display operation mode of UPS.
 【I】Display UPS internal temperature and Click to enter to Temperature in Right
Side.
The gray pattern indicates this part isn't activated.
The blue pattern indicates this part is activated.
The red pattern indicates this part is occurred abnormal condition.
The gray pattern indicates the battery isn't connected.
The green pattern indicates the battery is charging.
The yellow pattern indicates the battery is discharging.
Figure 8
indicates the part being not
indicates the part being under
indicates the part being under
