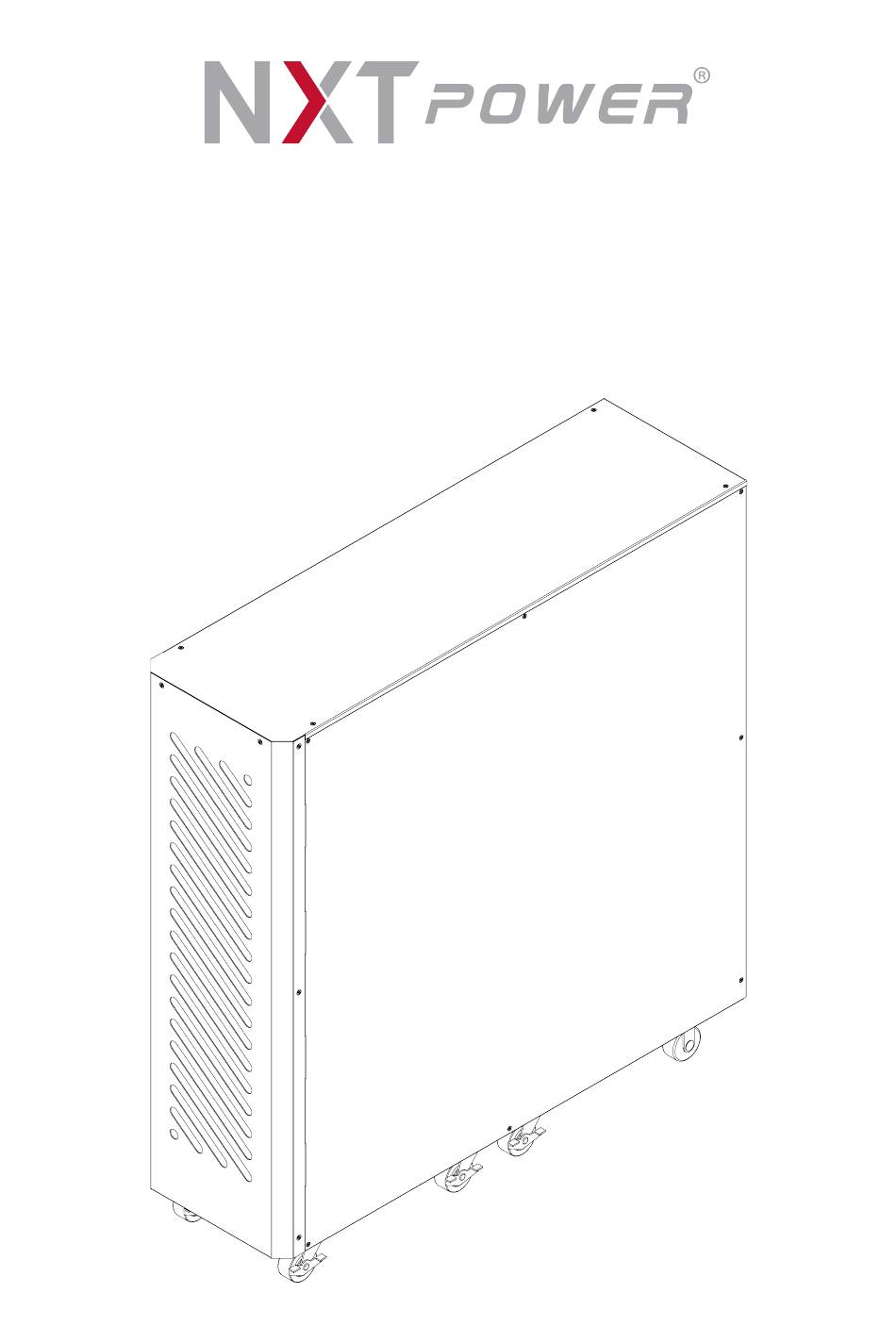

  • Page 1 Vanguard Three Phase 10-40KVA UPS Battery Cabinet Installation and Operation Manual...
  • Page 2: Table Of Contents

    Table of Contents 1. Important Safety ....................... 2 2. Introduction to the Rear View ................. 3 2.1 Rear View Descriptions ..................3 3. Installation and Operation ..................4 3.1 Unpacking ......................4 3.2 Standard Package includes ................5 3.3 Battery Quantity ....................5 3.4 Selecting Installation Position ................
  • Page 3: Important Safety

    1. Important Safety SAVE THESE INSTRUCTIONS This manual contains important safety instructions. Read all safety, installation and operating instructions before installing the Battery Bank. This manual contains important instructions that should be followed during installation and maintenance of the battery bank and batteries. An Important Notice ...
  • Page 4: Introduction To The Rear View

    2. Introduction to the Rear View 2.1 Rear View Descriptions Fuse holder To UPS Battery Terminals...
  • Page 5: Installation And Operation

    3. Installation and Operation Note: The packing condition and the external surfaces of the cardboard should be inspected carefully before installation. Retain the packing material for future use. 3.1 Unpacking 3.1.1 Remove the Kronos battery bank out of the PE foam. 3.1.2 Remove the packing materials.
  • Page 6: Standard Package Includes

    3.2 Standard Package includes The Kronos battery bank if shipped without the internal batteries installed, follow the procedures outlines below. IF THE BANK IS SHIPPED WITH BATTERIES, SKIP THIS SECTION ANDPROCEED TO 3.8  User Manual  Accessories Kits as below: Battery Fixed Support :...
  • Page 7: Selecting Installation Position

    3.4 Selecting Installation Position It is necessary to select a proper environment to install the battery bank. In order to minimize the possibility of damage to the battery bank and extend the life of the batteries. Please follow the instructions below: 3.4.1 Keep at least 20cm(8 inches) clearance from the rear panel of the battery bank from the wall or other obstructions.
  • Page 8: Installing The Battery

    3.6 Installing The Battery STEP1 : Remove the right/left side panel. STEP2 : To install battery in the battery bank. (Please refer to Appendix). STEP3 : Install the battery guardrail. STEP4 : Using nylon rivet to fix mylar film. STEP5 : Connect Anderson terminal. STEP6 :...
  • Page 9 STEP4 STEP5 STEP6 STEP7 STEP8 Batt+ Batt- Batt+ Batt-...
  • Page 10: Battery Replacement

    3.7 Battery Replacement STEP1 : Disconnect the fuse holder. STEP2 : Remove the right/left side panel. STEP3 : Disconnect Anderson terminal. STEP4 : Remove the battery guardrail. STEP5 : Disconnect battery cable and take the battery out of the battery bank. STEP1 STEP2 STEP3...
  • Page 11: Wiring Of Kronos Ups And Battery Bank

    3.8 Wiring of Kronos UPS and Battery Bank UPS Capacity 10KVA Recommended Cable Size 6AWG/ 16 mm UPS Capacity 15KVA 20KVA Recommended Cable Size 2AWG/30 mm 1/0AWG/ 50 mm...
  • Page 12: Storage Instructions

    3.9 Storage Instructions For extended storage in a moderate climate(-15 to +30 °C / +5 to +86 °F), the batteries should be charged for 12 hours every 6 months by connecting a DC charger rated for the correct DC voltage. Verify the VDC indicated on the rear of the battery bank. Repeat this every 3 months under high temperature (+30 to +45 °C / +86 to +113 °F) environment.
  • Page 13: Appendix

    4. Appendix  Battery Bank Descriptions Battery bank has 5 shelves. For 7AH/9AH, 10 batteries can be placed in one shelf. as below: 7AH/9AH configuration  Connection Cable to Battery The internal wiring diagram, as below: Cable# Description 5040 Positive battery cable 6092 Negative battery cable 5810...
  • Page 14 Battery (7AH/9AH) 18pcs 216V*5strings Battery Bank Right Side Battery Bank Rear Side Battery Bank Left Side Wire marking: 5040 Wire marking: 6092 Wire marking: 5810 Wire marking: Fixed Support 6398 Wire marking: Wire marking:0544 5040 Wire marking: 6092 Wire marking: 5810 Wire marking: Fixed Support...
  • Page 16 192321752084004...
