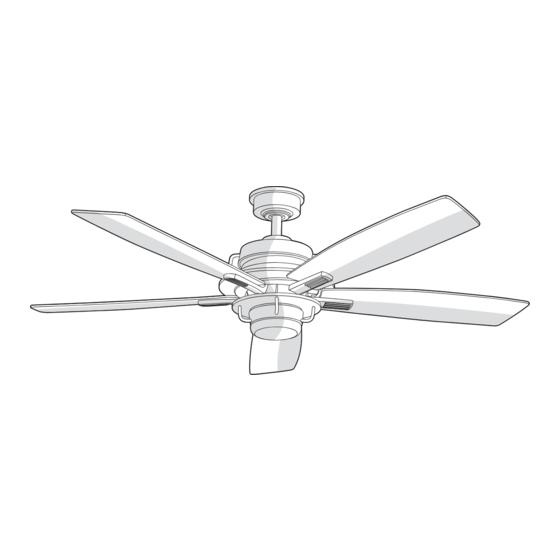

56 in. ceiling fan

Advertisement

Quick Links

Item #734 721
Model #AM472-GM
USE AND CARE GUIDE
MONTPELIER 56 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 734 721 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection 734 721

  • Page 1 USE AND CARE GUIDE MONTPELIER 56 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Setting the Code on the Transmitter ........Safety Information ............Learning Process ..............Operating Your Fan and Remote Control ....... Warranty ................. Reverse Switch Operating Instructions ........Pre-installation .............. Care and Cleaning ............Specifications ................
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting bracket screw with lock washer (preassembled) Blade attachment screw and fiber washer (not to scale) Clevis pin (preassembled) Cotter pin (preassembled) Cross pin (preassembled)
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade arm Canopy Light kit mounting plate Hanger ball/downrod assembly 21 watt LED Light kit Coupling cover Glass shade Decorative frame...
  • Page 7: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°...
  • Page 8: Assembly

    Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (EE) and clevis pin (DD), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (HH) from the motor collar. □ Remove the two non-slotted mounting bracket screws (BB) from the canopy (C), and loosen the slotted □...
  • Page 9: Hanging The Fan

    Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D).
  • Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White WARNING: To avoid possible electrical shock, be sure conductor electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
  • Page 11 Assembly — Hanging the Fan (continued) Installing the canopy WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place. WARNING: The locking slots of the canopy (C) are provided only as an aid to mounting.
  • Page 12: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Attaching the blades Fastening the blade to the blade arms assemblies to the motor □ Attach the blades (H) to the blade arms (I) using the WARNING: To reduce the risk of personal injury, do not three blade attachment screws and fiber washers bend the blade arms (I) while installing, balancing the blades (CC).
  • Page 13: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and glass shade □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (JJ) from the mounting ring (TT) and loosen power by turning off the circuit breaker or removing the fuse the other two screws.
  • Page 14 Assembly — Installing the Light Kit (continued) Installing the fan without the light kit (optional) □ Remove the decorative cover mounting plate (MM) from the decorative cover by removing the three decorative cover screws (UU) and keep these screws. □ Remove one of the three light kit mounting plate screws (JJ) from the mounting ring (TT) and loosen the other two screws.
  • Page 15: Operation

    Operation SETTING THE CODE ON THE TRANSMITTER NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used battery properly and keep the battery out of the reach of children. NOTE: The switch marked ON/DIM controls the dimming function of the lights.
  • Page 16: Operating Your Fan And Remote Control

    Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL button. - Press and release the button to turn the fan on or off. □ Press and hold the button for 5 seconds to enter the learning function. □ Fan on. The fan memory function will resume the speed set on the fan prior to the power being turned off. The LED bar will display the current settings for 5 seconds after the button is released.
  • Page 17: Reverse Switch Operating Instructions

    Operation (continued) Timer □ Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer Fan reverse button (Must be pushed when the fan is in operation) □...
  • Page 18: Care And Cleaning

    Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □...
  • Page 19 Troubleshooting (continued) Problem Problem Solution Solution □ Do not connect the fan with wall mounted variable speed control(s). The remote control is not working. □ Make sure the frequency switches are set correctly. □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts).
  • Page 20: Service Parts

    Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting bracket screw with lock washer Canopy (preassembled) Hanger ball/downrod assembly Blade attachment screw and fiber washer Coupling cover Clevis pin (preassembled) Decorative frame Cotter pin (preassembled) Fan motor assembly...
  • Page 21 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. AM472GM0001-Y...
