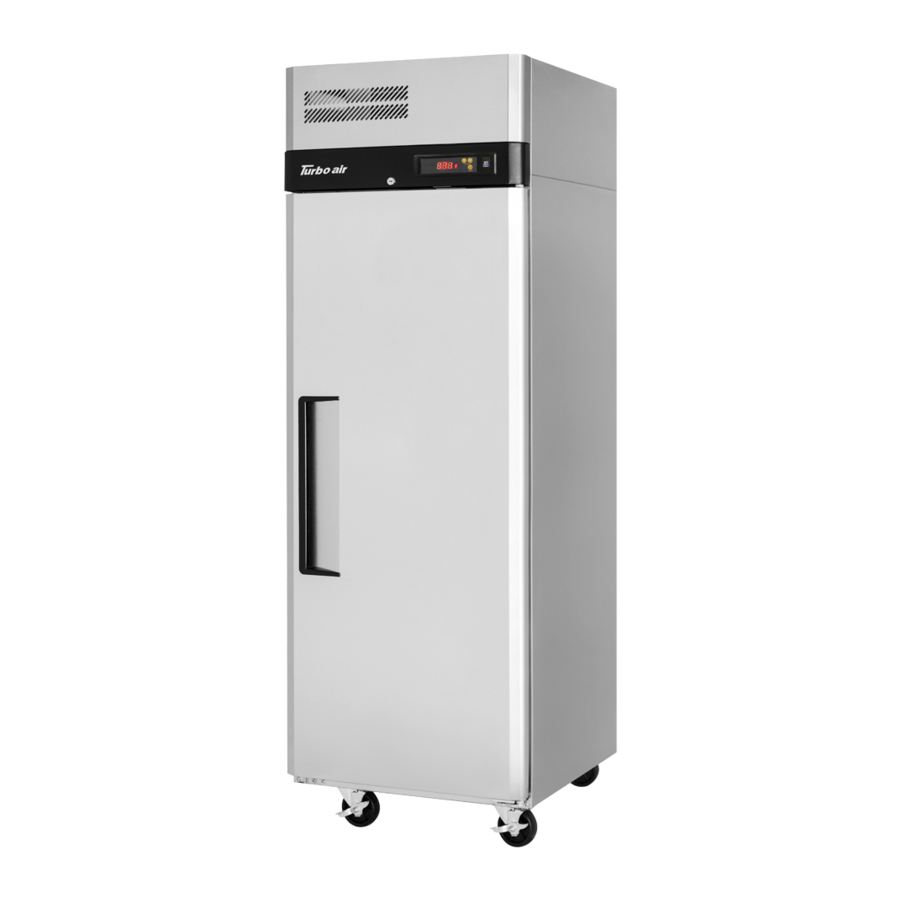

Turbo Air M3 Series, M3H24-1, M3H47-2, M3H24-1-G, M3H47-2-G, M3H24-1-TS Manual
Also See for M3 Series:
- Installation and operation manual (28 pages) ,
- Service manual (6 pages) ,
- Installation and operation manual (20 pages)
Advertisement
Table of Contents
Contents
Turbo Air M3 Series, M3H24-1, M3H47-2, M3H24-1-G, M3H47-2-G, M3H24-1-TS Manual
Parts List
Cabinet Parts
Door Parts
Program Number Setting
M3 Heated Cabinet Models
- When the M3 heated cabinet is plugged in, the display panel will show its program number and an unit of temperature.
The default factory setting for M3 SOLID door heated cabinet is:- Program number: H1
- Unit of temperature: °F
The default factory setting for M3 GLASS door heated cabinet is: - Program number: H2
- Unit of temperature: °F
- If the program number is set correctly, '°F' shows up on the display next to the inner temperature. If not, both '°C' and '°F' will show up. In this case, please check and correct your program number.
Universal Tray Slides
- M3H models have preinstalled TS (Universal Tray Slide) Models Available
1 Section Models
| M3H24-1-TS |
| M3H24-1-G-TS |
2 Section Models
| M3H47-2-TS |
| M3H47-2-G-TS |
1 Section Models
| Part Code | Part Name | Quantity |
| T24H139090 | POST TRAY SLIDE UNIVERSAL_M3H24-TS | 4 |
| T24H139080 | TRAY SLIDE UNIVERSAL_M3H | 5 Pairs |
2 Section Models
| Part Code | Part Name | Quantity |
| T47H139160 | POST M TRAY SLIDE UNIVERSAL_SPLIT-M3H | 4 |
| T47H139220 | POST TRAY SLIDE UNIVERSAL_M3H47-TS | 4 |
| T24H139080 | TRAY SLIDE UNIVERSAL_M3H | 10 Pairs |
