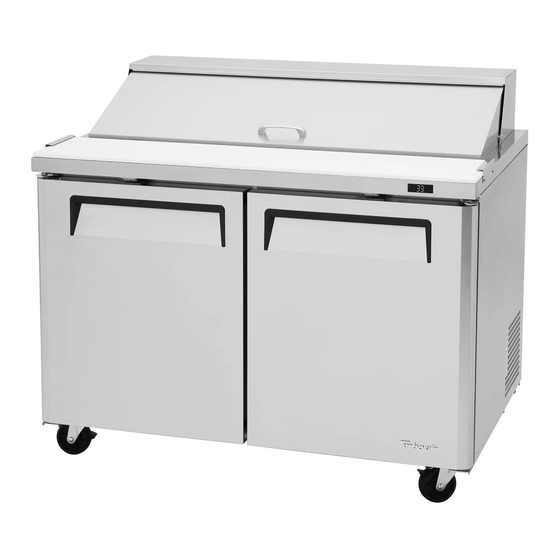

Turbo Air M3 Series Installation And Operation Manual

Food prep tables sandwich/salad/mega top units
Hide thumbs Also See for M3 Series:
Table of Contents

Advertisement

Quick Links

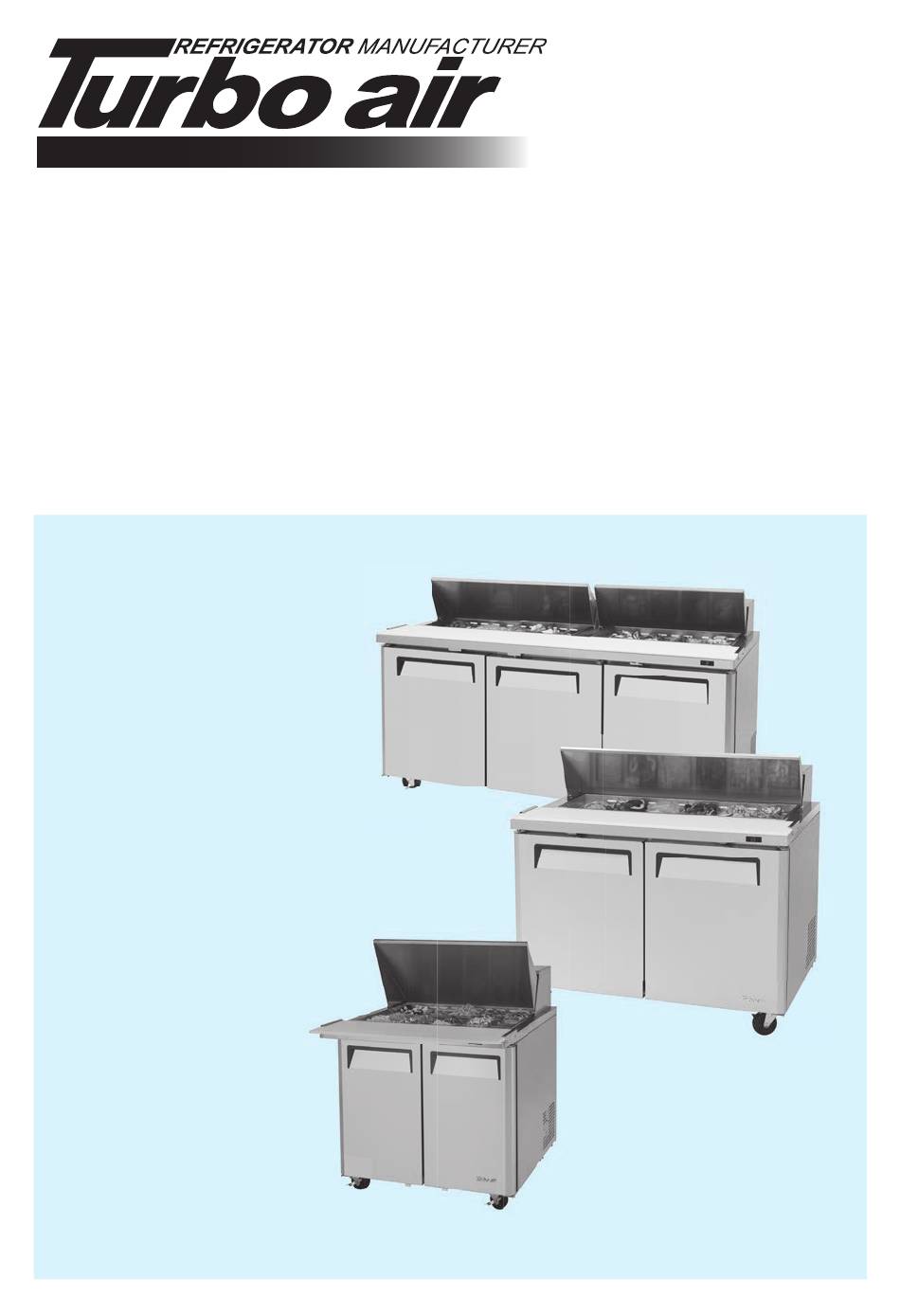

Turbo Air Speeds up the Pace of Innovation
M3 Series Food Prep Tables
Sandwich/Salad/Mega Top Units
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
SANDWICH/SALAD UNITS
MST-28-N
MST-36-N6
MST-48-N
MST-60-N
MST-72-N
MEGA TOP UNITS
MST-28-12-N
MST-36-15-N6
MST-48-18-N
MST-60-24-N
MST-72-30-N
www.turboairinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Turbo Air M3 Series

Summary of Contents for Turbo Air M3 Series

  • Page 1 Turbo Air Speeds up the Pace of Innovation M3 Series Food Prep Tables Sandwich/Salad/Mega Top Units Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment. SANDWICH/SALAD UNITS MST-28-N MST-36-N6 MST-48-N MST-60-N MST-72-N...

  • Page 2: Table Of Contents

    CONTENTS PAGE NOTICE FOR HYDROCARBON REFRIGERATION UNITS IMPORTANT SAFETY INFORMATION SPECIFICATIONS / SERIAL NUMBER NOTICE TO CUSTOMER INSTALLATION INSTALLATION OF CASTER AND CASTER BRAKE INSTALLATION OF DRAIN PAN HOW TO CLEAN THE PAN SUPPORTER CLEANING / CAUTION BASIC OPERATION FIELD REVERSIBLE DOOR HINGE INSTRUCTIONS 17-20 TROUBLESHOOTING STAINLESS STEEL EQUIPMENT CARE &...

  • Page 3: Notice

    NOTICE • This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of this equipment and the hazards involved by a person responsible for their safety. •...

  • Page 4: For Hydrocarbon Refrigeration Units

    FOR HYDROCARBON REFRIGERATION UNITS WARNING This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These hydrocarbon refrigerants are highly environmentally compatible but also are flammable and combustible. Please read this manual thoroughly before installing and operating the unit. Please take cautious measures to avoid risk of fire or explosion. PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK REFRIGERATION TYPE AND VOLUME.
  • Page 5 FOR HYDROCARBON REFRIGERATION UNITS WARNING • Handle the unit with care in order to avoid any serious damage to the refrigeration system. • The refrigerant tubing, condenser, and evaporator coils are prone to damage while handling, moving, installing, and cleaning the unit, which may lead to fire or even explosion.

  • Page 6: Important Safety Information

    IMPORTANT SAFETY INFORMATION SAFETY PRECAUTIONS To avoid any risk of fire, explosion, electric shock, personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions (After reading these owner’s manual instructions, please keep the manual booklet in a safe place for reference.
  • Page 7 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE WARNING • Do not install the unit in a damp place where it could be splashed with water. Incorrect insulation of the electrical parts may cause fire or electric shock. • Do not plug several appliances into the same sockets. This could cause fire due to overheating.
  • Page 8 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE CAUTION • There is a risk of death from suffocation if a child puts the packing materials on his or her head. • Do not store any articles on top of the appliance. Articles may fall while opening or closing the door, and could cause personal injury or material damage.
  • Page 9 IMPORTANT SAFETY INFORMATION PROPER DISPOSAL OF OLD APPLIANCE For environmental purposes, refrigeration appliances must be properly disposed. This applies to your old appliance, and at the end of its service life, for your new appliance as well. WARNING Before disposing of old appliances, make them inoperable. Remove plug from mains, severe the power cable, and remove or destroy any snap or latch closures.

  • Page 10: Specifications / Serial Number

    SPECIFICATIONS Sandwich / Salad Units MODEL COMP H.P V/Hz RERIGERANT AMPS WEIGHT MST-28-N 115V/60Hz R-290 181 lbs. MST-36-N6 115V/60Hz R-600a 205 lbs. MST-48-N 115V/60Hz R-290 225 lbs. MST-60-N 115V/60Hz R-290 308 lbs. MST-72-N 115V/60Hz R-290 325 lbs. Mega Top Sandwich / Salad Units MODEL COMP H.P V/Hz...

  • Page 11: Notice To Customer

    Insufficient space causes vibration noise, inefficient refrigeration, damage to the refrigeration system, and the waste of electricity (Turbo Air recommends that the rear of the unit should be no less than 5 inches from the wall).

  • Page 12: Installation Of Caster And Caster Brake

    INSTALLATION OF CASTER AND CASTER BRAKE 1) Screw the caster (rear side) and the caster brakes (front side) by using caster wrench. 2) Use the caster shims to level the cabinet, if necessary, by inserting them to stems of the casters. Door(L) Door(R) Cabinet...

  • Page 13: Installation Of Drain Pan

    INSTALLATION OF DRAIN PAN 1) During damp seasons, it may cause the drain pan to overflow. Remove the drain pan, discard the weter and place it back like drawing below. 2) When installing the drain pan in the compressor mounted base, slightly lift vaporizing pipe to place the pan.

  • Page 14: How To Clean The Pan Supporter

    HOW TO CLEAN THE PAN SUPPORTER Guide Pan Pan Support Model MST-28-N, MST-36-N6, MST-48-N, MST-60-N, MST-72-N MST-28-12-N, MST-36-15-N6, MST-48-18-N MST-60-24-N, MST-72-30-N...

  • Page 15: Cleaning / Caution

    CLEANING Before cleaning, unplug the unit and disconnect the power. Wipe and clean the inside and outside of appliance with a damp cloth. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water and soap. - Do not use an abrasive cleaner because it will scratch the surface.

  • Page 16: Basic Operation

    BASIC OPERATION 1. Plug unit into the correct outlet. The power switch is located on the back side of the unit. Flip the power switch ON. Display panel should light up if these steps are followed correctly. 2. The default temperature (“Set Point”) is set to 37°F (for Refrigerators). 3.

  • Page 17: Field Reversible Door Hinge Instructions

    FIELD REVERSIBLE DOOR HINGE INSTRUCTIONS (For MST-28-N, MST-28-12-N only) 1. MAIN COMPONENTS Bottom hinge hinge 1) Door 2) Top hinge / bottom hinge 3) Spring bar 4) Door bushing Unit cover cap 5) M5 bolt / M6 bolt 6) Unit cover cap...
  • Page 18 FIELD REVERSIBLE DOOR HINGE INSTRUCTIONS (For MST-28-N, MST-28-12-N only) 2. CHANGE REVERSIBLE DOOR 1) Unscrew the top hinge. 2) Remove the top hinge from the unit. 3) Lift the door upwards to remove it from 4) Unscrew the screws located on the the unit bottom right hand hinge.
  • Page 19 FIELD REVERSIBLE DOOR HINGE INSTRUCTIONS (For MST-28-N, MST-28-12-N only) 7) Remove the door bushing from the 8) The spring bar is located on the right top right hand side of the door. hand side of the door. Remove it by pulling it upwards away from the door.
  • Page 20 FIELD REVERSIBLE DOOR HINGE INSTRUCTIONS (For MST-28-N, MST-28-12-N only) 13) Insert the door bushing (from Step 6) 14) Install the door back into the unit and into the bottom left hand side of the screw the top hinge to secure the door door.

  • Page 21: Troubleshooting

    TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS • Thermostat set too cold. • Turn the thermostat setting Cooler is freezing to a higher temperature food. position The unit does not • There is a power connection • Check the power cord and refrigerate at all. failure problem.

  • Page 22: Stainless Steel Equipment Care & Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to occur.
  • Page 23 STAINLESS STEEL EQUIPMENT CARE AND CLEANING 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.

  • Page 24: Warranty Information

    Air and upon proper installation* (indoor building only) and start-up in accordance with the instruction packet supplied with each Turbo air unit. Turbo Air s obligation under this warranty is limited to a period of three (3) years from the date of original installation or thirty nine (39) months after shipment date from Turbo Air, whichever occurs first.
  • Page 25 WARRANTY INFORMATION What is Not Covered by This Warranty... Turbo Air’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
  • Page 26 NOTE...

  • Page 27: Warranty Registeration Card

    Address: (Street / Unit #) (City) (State) (Zip Code) hereby inform and certify to Turbo Air Inc. (Manufacturer) that the product model (Owner’s Name) and serial number mentioned above was purchased on from (Date of Purchase) (Name of the Dealer) Turbo Air Inc.
  • Page 28 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
