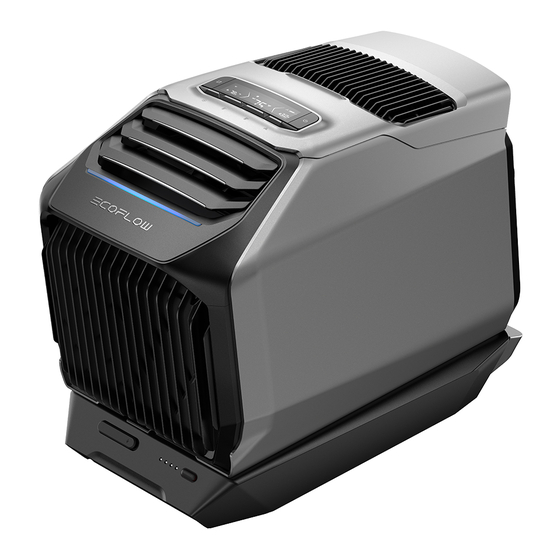

EcoFlow Wave 2 User Manual
Hide thumbs
Also See for Wave 2:
- User manual ,
- Troubleshooting manual (3 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for EcoFlow Wave 2
Summary of Contents for EcoFlow Wave 2
- Page 1 EcoFlow Wave 2 User Manual V1.0...
- Page 2 Once you use this product, it is deemed that you understand, approve and accept all the terms and content in this document. EcoFlow is not liable for any loss caused by the user's failure to use the product in compliance with the Disclaimer and Safety Instructions.
-
Page 3: Table Of Contents
Contents Specifications Safety Instructions Grounding Guide EcoFlow App What's in the Box Product Details Overview Light Effect Control Buttons Getting Started How to Install How to Power-on How to Drain How to Clean Care and Maintenance... -
Page 4: Specifications
Specifications Cooling/Heating Specifications Model EFKT210 Cooling Capacity/Heating Capacity 1500/1800W (5100/6100BTU) Temperature Setting Range 16°C-30°C (60°F-86°F) Refrigerant R290 (130g) Air Flow Volume 290m³/h Cooling/Heating Rated Input (AC) 550W/600W (AU: 580W/600W)* Cooling/Heating Rated Input (DC) 495W/540W (AU: 520W/540W)* Maximum Cooling/Heating Power 700W Input Specifications AC Input 100-240V~50/60Hz, 820W max... -
Page 5: Safety Instructions
Frequency range: US: 2412-2462MHz (20M)/2422-2452MHz (40M) EU/UK/CH/AU/ZA: 2412-2472MHz (20M)/2422-2462MHz (40M) Wi-Fi BR: 2400-2483.5MHz Maximum output power: US: 0.071W EU/UK/CH/AU/ZA: 16.54dBm BR: 0.339W Frequency range: US/EU/UK/CH/AU/ZA: 2402-2480MHz BR: 2400-2483.5MHz Maximum output power: Bluetooth US: 0.005W EU/UK/CH/AU/ZA: 0.02dBm BR: 0.147W *The parameters may vary due to local testing conditions. Safety Instructions 1. - Page 6 >0.5 m. 17. Do not use unofficial components or accessories since they will void your warranty. If they need to be replaced, please purchase them through the official EcoFlow distribution channels. 18. Please keep the product out of the reach of pets. Children should not operate this product without supervision.
-
Page 7: Grounding Guide
Do not modify the plug delivered with the product without authorization. If the plug cannot be used normally, please consult a qualified electrical engineer. EcoFlow App Control, monitor and customize your EcoFlow Wave 2 from afar with the EcoFlow app. -
Page 8: What's In The Box
What's in the Box Safety Instructions, Quick Wave 2 Start Guide & Warranty Card Exhaust duct Exhaust duct Exhaust duct Winder adapter cover A adapter cover B adapter cover C 150mm(5.9 in) 127mm(5 in) 376mm(14.8 in) Drain pipe Window vent board... -
Page 9: Product Details
Product Details Overview 1. LCD 6. AC charging cable 2. Control buttons 7. Add-on battery socket (XT150) 3. Front air outlet fan blade 8. Solar/car charging socket (XT60) 4. Ambient light 9. Charging port cover 5. Front air inlet filter 10. -
Page 10: Lcd
Introduction to Indicator Lights Pulsating blue Cooling status Pulsating orange Heating status Pulsating white Fan status Solid red Error alarm Flashing white Firmware update 1. Wi-Fi/Bluetooth 7. Timer (Supported in app settings only) 2. Water level indicator 8. Remaining charge/discharge time 3. -
Page 11: Control Buttons
Power button Press Power-on/Standby. If Wave 2 is idle for 5 minutes, the LCD and ambient light will turn off automatically (The power standby time can be set in the app). Press any button to wake them up. Press and hold Press and hold it for 3 seconds to shutdown. -
Page 12: Getting Started
When using the cooling or heating function, please make sure you've installed the exhaust duct and adapter cover to Wave 2, otherwise it will affect the air conditioner's working efficiency. It is recommended that the space is within 20m³ for better working performance. - Page 13 DIY Window Vent Board A window vent board is included with Wave 2. The board is pre-cut based on the diameters of the exhaust ducts. You can apply it to your truck, RV or home windows, fill the gap between the board and the window, and vent the exhaust air through the ducts.
- Page 14 Outdoor Use When the interior space is small or noise avoidance is required, Wave 2 can be placed outdoors and deliver cooling or heating through the front air outlet.
-
Page 15: How To Power-On
Battery pack The EcoFlow Wave 2 add-on battery or EcoFlow portable power stations (DELTA and DELTA 2 series are recommended) can be used to supply power to Wave 2. These products and cables can be purchased on official EcoFlow channels. - Page 16 When charging using the car charging port, turn on the engine first to avoid a failure to start if the car battery is too low. Wave 2 supports 12V/24V car charging and a maximum charging current of 8A. Make sure that the car charging port and charging cable are securely connected to the cigarette lighter.
-
Page 17: How To Drain
LCD for more information. When it cannot collect anymore water, Wave 2 will shut down automatically (switch to fan function if it is currently in cooling mode.). Do not shake or move the air conditioner to avoid water leakage. -
Page 18: How To Clean
How to Clean The air inlet may get blocked with large dust particles and impurities in the air during outdoor use. Regularly remove the front and rear air inlet filters, clean them with a damp cloth using a mild detergent, dry them in the air, and then reassemble them. Rear Rear Front...
