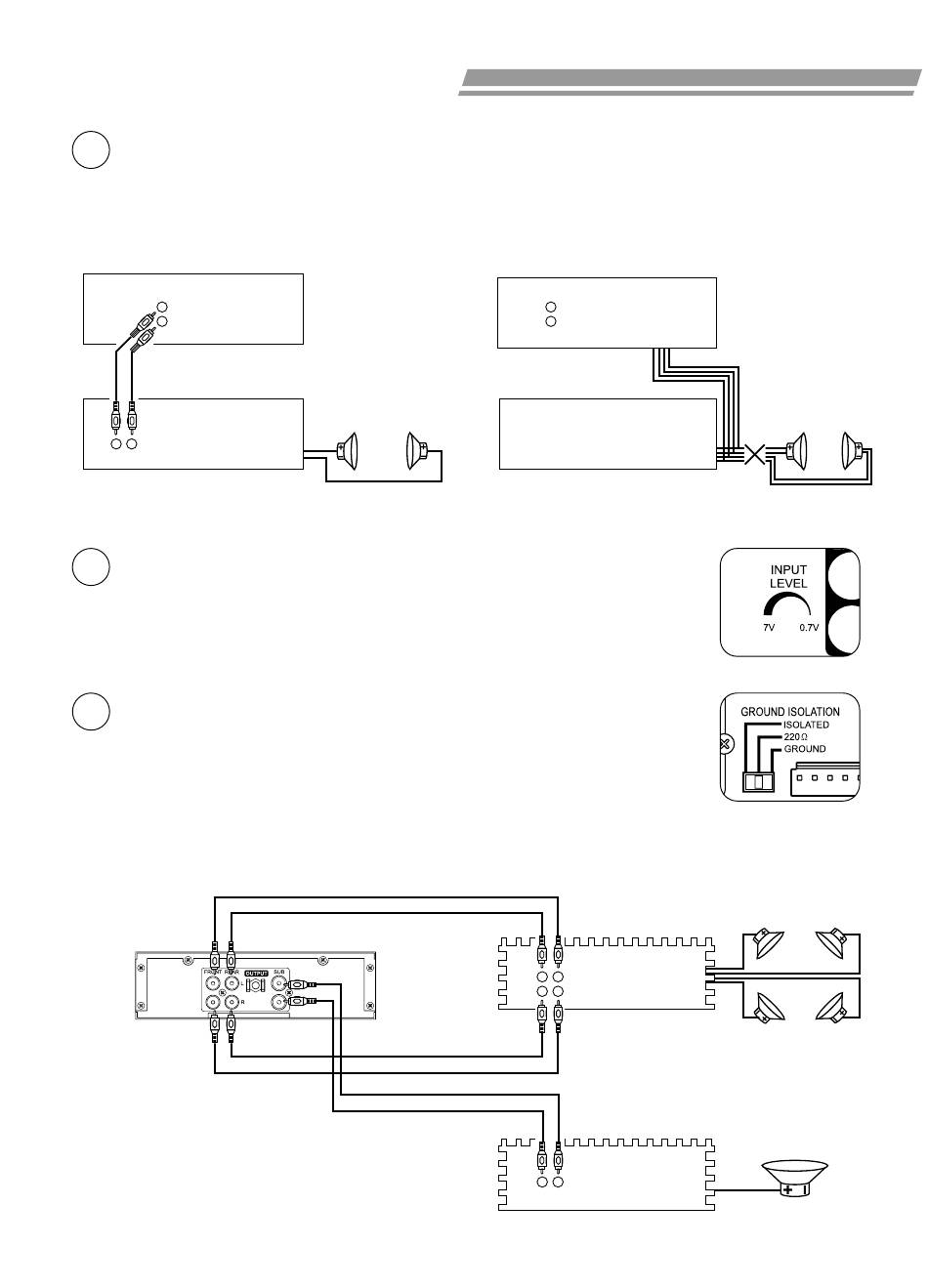

ELECTRONIC CONNECTIONS
If your head player provides
2
RCA type line out, connect
them to this unit's Line In
socket.
Li ne in
CD/Casset te
Li ne out
Note: Do not use this unit's low level and high level input together.
Adjust the INPUT LEVEL to meet your source unit's
3
output level. Turn clockwise when your head player has a
normal level output; turn counter-clockwise if your head
player has high level preamp output.
Occasionally alternator noise may appear because the
4
source unit and amplifier may use different grounding. To
help in this situation, you may select the GROUND
ISOLATION switch to a proper position.
3
Connection to Subwoofer and externa l amplifier
Note: No low-pass filter is required for the subwoofer amplifier.
-4-
EQ
speake rs
if any
pl ayer
If your head player does not provide RCA
type line out, then disconnect the head
player's speaker leads, connect them to
this unit's High Level Input leads.
Li ne in
EQ
High Level Input
CD/Casset te
pl ayer
Am pl ifier
Li ne in
Am pl ifier
Li ne in
Fr ont spe ake rs
Rear spe ake rs
Subwoofer
