ELECTRONIC CONNECTIONS

1

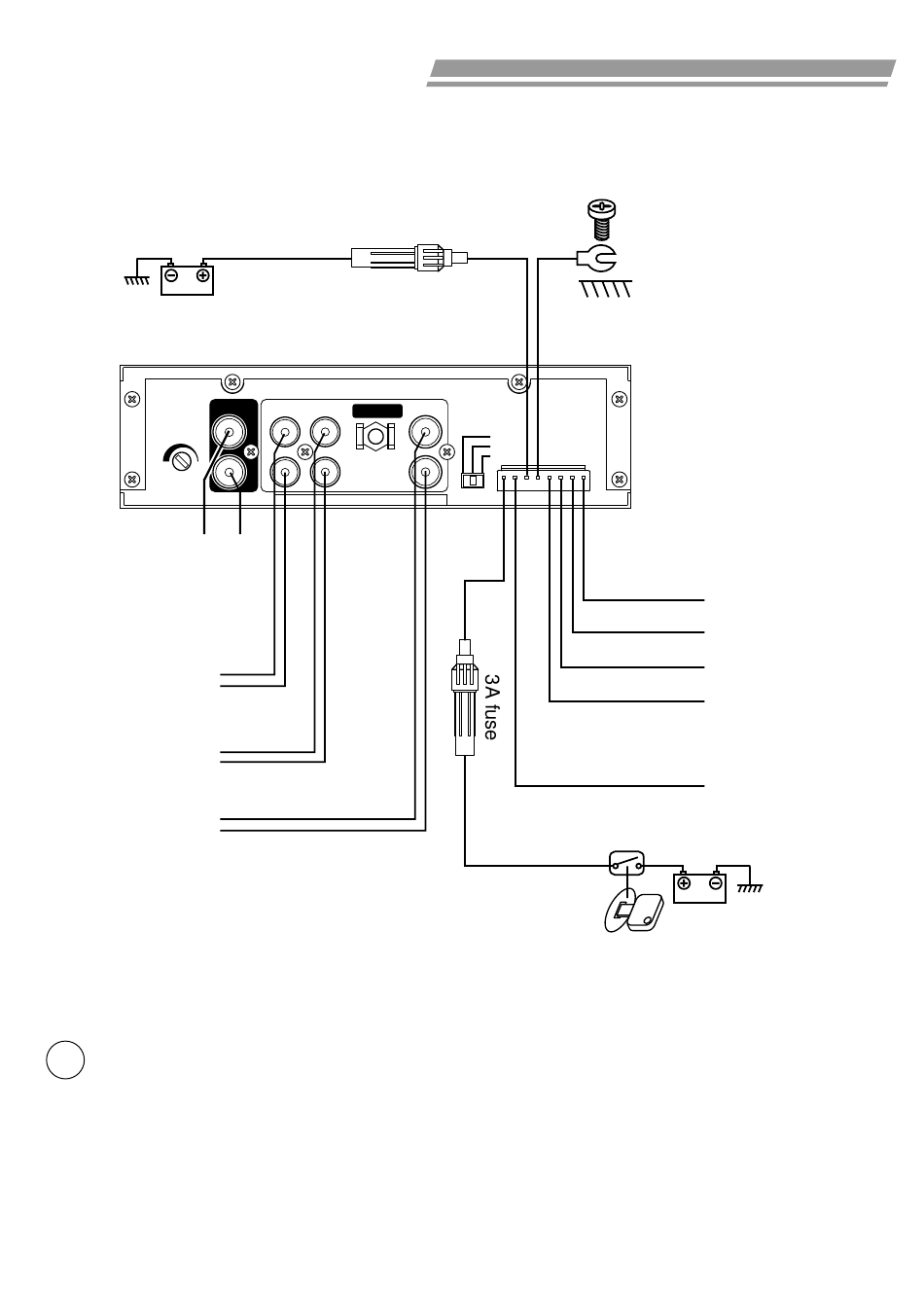

Typical Connections
To the positive terminal of the car battery
(bypassing the ignition switch)
INPUT
LEVEL
7V 0.7V
Left
Lin e in
RCA
Low le vel Input
Lin e out
(Front)
Lin e out
(Rear)
Sub-
Woofer
out
2
Connection to your CD/Cassette player
Connect this unit's Remote On lead to your head player's remote lead if any
1
(such as auto antenna lead), so this unit's power can be controlled through
the head player. If there is no suitable lead from your audio source
equipment, connect to the car ignition switch controlled power wire
(Accessory terminal).
Note: For some models of head players, the auto antenna lead only works in
radio receiving mode.
3A fuse
LINE IN FRONT REAR
OUTPUT
L L
R R
Rig ht
Left
Rig ht
Left
Rig ht
Left
Rig ht
To the car ignition switch
controlled power wire
(Accessory terminal)
Yell ow Bla ck
SUB
GROUND ISOLATION
ISOLATED
Ω
220
GROUND
Red
To metallic body or
chassis of the car
Hig h Level Input
Yell ow
Left +
Yell ow/Bla ck
Left -
Orange
Rig ht +
Orange/Bla ck
Rig ht -
Vio le t
Remote On
