Alderon Industries Oil Alert VA02 Operation, Maintenance And Installation Manual

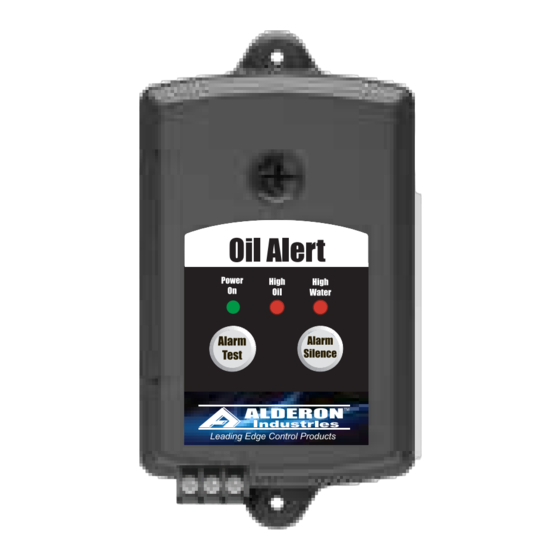

Oil Alert Remote Alarm
TM
Alarm Panel Model VA02 Operation, Maintenance
and Installation Manual

Introduction

Before proceeding with the installation or operation of the Oil Alert Remote Alarm, read all instructions
thoroughly, as well as complying with all Federal, State and Local Codes, Regulations and Practices. The
Oil Alert Remote Alarm must be installed by qualified personnel familiar with all applicable local electrical
and mechanical codes. Refer to the National Electrical Code (NFPA 70). Failure to properly install and test
this product can result in personal injury or equipment malfunction.

Safety Guidelines

1. DO NOT USE WITH FLAMMABLE OR EXPLOSIVE FLUIDS SUCH AS GASOLINE, FUEL OIL, KEROSENE, ETC.
DO NOT USE IN EXPLOSIVE ATMOSPHERES.
2. REMOTE ALARM MUST BE MOUNTED INDOORS. FOR OUTDOOR APPLICATIONS CONSULT FACTORY.

Description of Operation

The OIL ALERT REMOTE ALARM is powered by 120 VAC coming from standard wall outlets and is transformed to 9
VDC. Installing a 9 Volt battery provides battery back-up.
The Oil Alert Remote Alarm activates on High Oil or HIgh Water from the control panel. Seperate dry contacts for High Oil
and High Water can be connectd to an Auto Dialer, a BAS (building automation system) or SCADA system.

Tools, Supplies and Requirements for Installation (Not Included)

#1. Phillips screw driver
#2. (Qty 2) #6 self tapping screws
#3. Access to 120 VAC power receptacle
#4. Optional \ plastic anchor if mounting to sheet rock
#5. Optional 9V battery (used for battery back up if power goes out)
#6. Optional Wire stripper (used if you need to strip wire to connect to a BAS or SCADA system)
#7. Optional needle nose pliers if using aux contacts
Alarm Systems Control Panels
PO Box 827 Hawley, MN 56549
Float Switches Leak Detection Systems
(218) 483-3034 Fax (218) 483-3036
Float
P/N
www.alderonind.com
Page 1 of 4
