Alderon Industries Versa'larm VA02B Operation, Maintenance And Installation Manual

Versa'larm

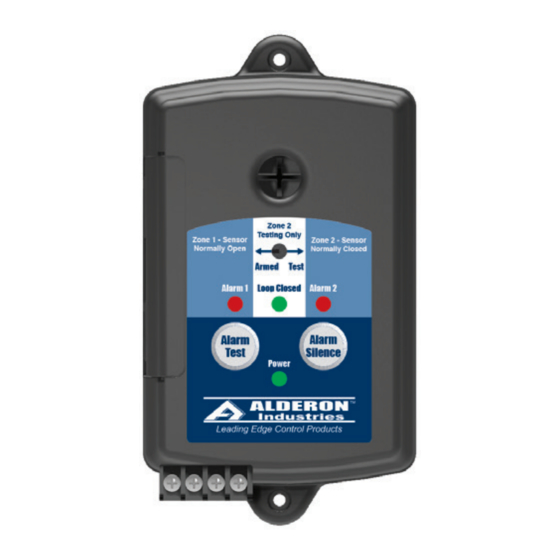

2-Zone Alarm - Model VA02B
Normally Open / Normally Closed
Operation, Maintenance and Installation Manual
Introduction of Installation

Safety Guidelines

1. DISCONNECT ALL ELECTRICAL SERVICE BEFORE INSTALLING OR WORKING ON THE PRODUCT.
2. DO NOT USE WITH FLAMMABLE OR EXPLOSIVE FLUIDS SUCH AS GASOLINE, FUEL OIL, KEROSENE, ETC.
DO NOT USE IN EXPLOSIVE ATMOSPHERES.
3. ALARM PANEL MUST BE MOUNTED INDOORS. FOR OUTDOOR APPLICATIONS CONSULT FACTORY.

Description of Operation

The 2-Zone Normally Open / Normally Closed Versa'larm™ alarm panel is powered by 120 VAC coming from standard wall
outlets and is transformed to 9-11.1 VDC. Installing a 9 Volt battery provides battery backup during power outages. The
power LED (green) will illuminate when powered. The Normally Open / Normally Closed Versa'larm™ is a multipurpose
alarm panel where a normally open switch (Zone 1 signaling device) such as a float switch, water sensor, sump probe
sensor, or any normally open "dry contact" can be wired to the alarm panel and a normally closed switch (Zone 2 signaling
device) such as a temperature or security switch is wired in series to the alarm panel.
The alarm panel buzzer will annunciate, alarm LED(s) (red) will illuminate, and the built in auxiliary contacts will be activated
when either Zone 1 or Zone 2 senors "change state" (normally open close or normally closed open). The auxiliary contacts
can be used to connect to an Alderon Industries Auto Dialer, an existing alarm security system, or building automation
system (BAS).
Pressing the "Alarm Silence" pushbutton will silence the buzzer and the alarm LED(s) (red) for the specific zone(s) will
remain on. When the alarm condition is cleared (sensor(s) reverting to normal condition), the system automatically resets
itself for the next alarm cycle.
Tools, Supplies and Requirements for Installation - Not Included
1. Phillips screw driver
2. (Qty 2) #6 self tapping screws
3. Access to 120 VAC power receptacle
4. Optional - Plastic anchors (#8; Qty 2) if mounting to sheet rock
5. Optional - 9V battery (used for battery backup during power outages)
6. Optional - Wire stripper (used if you need to strip wire to connect to a BAS or SCADA system)
7. Optional - Needle nose pliers if using auxiliary contacts
Alarm Systems Control Panels
Alderon Industries - Hawley, MN | 218.483.3034 | info@alderonind.com | alderonind.com
™
Before proceeding with the installation or operation of the product, read all
instructions thoroughly, as well as complying with all federal, state and local
codes, regulations, and practices. The product must be installed by qualified
personnel familiar with all applicable local electrical and mechanical codes.
Refer to the National Electrical Code (NFPA 70). Failure to properly install and
test this product can result in personal injury or equipment malfunction.
Float Switches Leak Detection Systems Page 1 of 4
