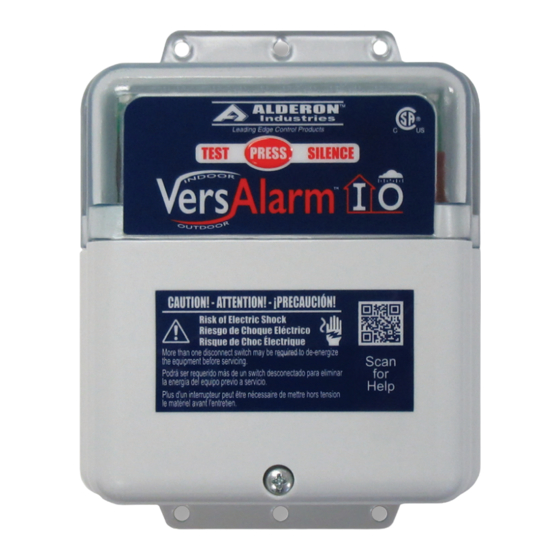

- Page 1 VersAlarm ™ Indoor/Outdoor Alarm Panel USER GUIDE MODEL NUMBER: VLIO-0001...
-
Page 2: Table Of Contents
USER GUIDE | VersAlarm™ I/O Contents Introduction ................................. 3 Safety Guidelines ..............................3 Included with Alarm ..............................4 Features ................................. 5 Installation .................................. 6 Wall Mounting Enclosure............................ 6, 7 Wiring ..................................7, 8 Testing the Alarm ..............................9 General Operation ..............................10 Sump Pit Monitoring ............................. -
Page 3: Introduction
4. DO NOT use this product with or near flammable liquids. 5. DO NOT install this product in locations classified as hazardous or in explosive atmospheres as defined by any applicable electrical safety code. Alderon Industries™ - Leading Edge Control Products | 3... -
Page 4: Included With Alarm
(6) WaterSpotter™ Probe Sensor The WaterSpotter™ probe sensor can be used for monitoring one specific level in a tank or liquid container. (7) Power Cable A male, 120VAC, 6-foot power cable can be installed. 4 | Alderon Industries™ - Leading Edge Control Products... -
Page 5: Features
During an alarm condition, it will silence the buzzer and the red LEDs will stop flashing and remain solid. (5) Sensor Input - One set of sensor terminals are included that can be used to connect a variety of sensors. Alderon Industries™ - Leading Edge Control Products | 5... -
Page 6: Installation
Note: Seal all conduits to prevent moisture and gases from entering the enclosure per local codes. CAUTION: Nonmetallic enclosure does not provide proper grounding between conduit connections. Use grounding bushings and jumper wires. 6 | Alderon Industries™ - Leading Edge Control Products... -
Page 7: Wiring
(N) is installed in terminal 6. WAGO 4) NEVER leave ground wire exposed inside the panel, use provided Wago connector for ground termination. See step 2 for installing wire into Wago connector. Alderon Industries™ - Leading Edge Control Products | 7... - Page 8 (3A). Then slide the bottom piece directly upward (3B) until it meets the top of the enclosure so the screw hole is lined up. Replace the screw at the bottom of the enclosure. 8 | Alderon Industries™ - Leading Edge Control Products...
-
Page 9: Testing The Alarm
The silence condition will clear when the sensor is deactivated and the alarm will auto reset for the next alarm cycle. STEP 4: TEST WEEKLY To ensure the product is functioning properly, test once a week. Alderon Industries™ - Leading Edge Control Products | 9... -
Page 10: General Operation
The silence condition will reset when the probe sensor deactivates. If the alarm is in silence mode for longer than 24 hours, the alarm will reactivate. VersAlarm™ I/O WaterSpotter™ House to Yard Probe Sensor 10 | Alderon Industries™ - Leading Edge Control Products... -
Page 11: Septic Tank Monitoring
VersAlarm™ I/O Septic Alarm VersAlarm™ I/O Float Drain Field TIME HEAT START 13:27 Pump Cycle: WASH Switch Alderon Industries™ - Leading Edge Control Products | 11... -
Page 12: Flood Monitoring
If the alarm is in silence mode for longer than 24 hours, the alarm will reactivate. VersAlarm™ I/O 5:05 REGENERATION MENU ENTER TIME HEAT START 13:27 Cycle: WASH WaterSpotter™ Flood Sensor WaterSpotter™ Flood Sensor House to Septic 12 | Alderon Industries™ - Leading Edge Control Products... -
Page 13: Alarm Auxiliary With Auto Dialer
The silence condition will reset when the probe sensor deactivates. If the alarm is in silence mode for longer than 24 hours, the alarm will reactivate. VersAlarm™ I/O Auto Dialer WaterSpotter™ House to Yard Probe Sensor Alderon Industries™ - Leading Edge Control Products | 13... -
Page 14: Troubleshooting
The auxiliary contacts are not activating If the alarm is not activated, then the Test the alarm and the auxiliary contacts auxiliary contacts should also be off should work while the alarm is activated 14 | Alderon Industries™ - Leading Edge Control Products... -
Page 15: Specifications
Caution: changes/ modifications not approved by Alderon Industries could void the user’s authority to operate the equipment. Alderon Industries™ - Leading Edge Control Products | 15... -
Page 16: Warranty Information
Three-Year Limited Warranty - Standard Products LIMITED WARRANTY: Subject to the conditions of this Three-Year Limited Warranty, Alderon Industries, LLC (“Alderon”) warrants to the original user or consumer of an Alderon product (the “Product”) that, for a period of three (3) years from the date of manufacture, the Product will be free from defects in materials and workmanship under normal use and service, and provided the Product is installed, operated and maintained in accordance with instructions supplied by Alderon. - Page 17 VersAlarm™ I/O | USER GUIDE This page intentionally left blank Alderon Industries™ - Leading Edge Control Products | 17...
- Page 18 USER GUIDE | VersAlarm™ I/O This page intentionally left blank 18 | Alderon Industries™ - Leading Edge Control Products...
- Page 19 VersAlarm™ I/O | USER GUIDE This page intentionally left blank Alderon Industries™ - Leading Edge Control Products | 19...
-
Page 20: Company Information
UG00001_Rev04_VLIO-0001_VersAlarm IO | September 20, 2022 6:03 PM Company Location: 151 16th Street South, Hawley, MN 56549 Mailing Address: PO Box 827, Hawley, MN 56549 Main Office Phone: 218.483.3034 Website: alderonind.com General Inquiry Email: info@alderonind.com Submit New Orders: orders@alderonind.com...
