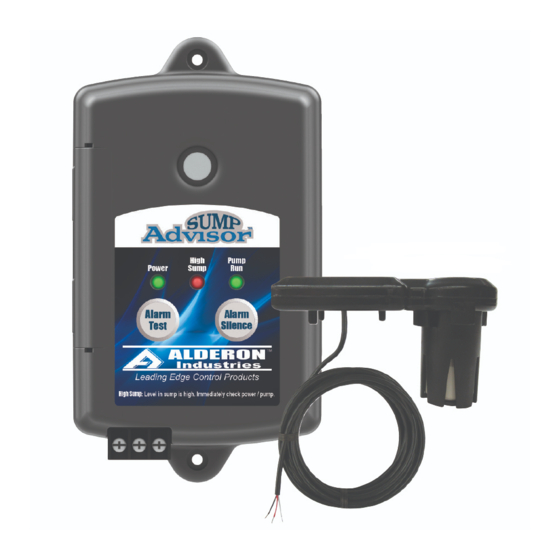

- Page 1 Sump Advisor 2-Zone Alarm and Sensor ™ Rated Type 1, Indoor Alarm Panel (use with Alderon™ VertiMAC™ series) USER GUIDE PART NUMBERS: 2000514 2000558 2000559 2000560 2000561 Alderon Industries™ Pat. No. 10,794,379...
-
Page 2: Table Of Contents
Sump Advisor™ 2-Zone Alarm and Sensor - USER GUIDE Contents Introduction ................................. 3 Safety Guidelines ..............................3 Product Included ..............................4 Features ................................. 5 Installation of Sump Advisor™ Alarm Panel ....................... 6 9VDC Battery Backup ............................6, 7 Mounting Alarm Panel ............................8 Wiring Auxiliary Dry Contacts .......................... -
Page 3: Introduction
4. DO NOT use this product with or near flammable liquids. 5. DO NOT install this product in locations classified as hazardous or in explosive atmospheres as defined by any applicable electrical safety code. Alderon Industries™ - Leading Edge Control Products | 3... -
Page 4: Product Included
Sump Advisor™ alarm panel to monitor high level alarm status. When the contacts close on the alarm panel, it activates the input of the auto dialer sending a voice message to programmed number(s). (120VAC Piggyback Plug Model Shown) 4 | Alderon Industries™ - Leading Edge Control Products... -
Page 5: Features
(normally open) are rated 24VDC/24VAC, 50/60 Hz, and bottom of the sensor housing which secures the float basket in 100mA maximum. place. (9) Battery Backup - Install a 9VDC battery (not included) for battery backup during power outages. Alderon Industries™ - Leading Edge Control Products | 5... -
Page 6: Installation Of Sump Advisor™ Alarm Panel
Install the 9VDC battery matching the terminals of the wire connector on the alarm panel to the terminals on top of the battery. Place the battery inside the top panel compartment to secure and ensure proper operation of the backup power feature. 6 | Alderon Industries™ - Leading Edge Control Products... -
Page 7: 9Vdc Battery Backup
After the alarm panel battery backup power feature has been tested and determined to be working properly, replace the access cover if the auxiliary dry contacts are not used. If connecting wires to the auxiliary dry contacts, leave the access cover off until step 1 on page 9 is completed. Alderon Industries™ - Leading Edge Control Products | 7... -
Page 8: Mounting Alarm Panel
(not included) if necessary. Place alarm panel in the mounting location, adjust until the pilot holes are lined up with the enclosure and fasten screws to secure the alarm panel in place. 8 | Alderon Industries™ - Leading Edge Control Products... -
Page 9: Wiring Auxiliary Dry Contacts
After the access cover has been removed from the alarm panel, use a needle nose pliers (not included) to remove the desired break away tab(s) from the access cover. Lightly pull and twist off tab(s). Alderon Industries™ - Leading Edge Control Products | 9... -
Page 10: Installation Of Sump Advisor™ Sensor
VertiMAC™ pump switch. Connect white wire to terminal W, red wire to terminal R, and black wire to terminal B. TERMINAL BLOCK CONNECTIONS: Sensor Wire Alarm Panel Terminal White W = Common R = High Level Alarm Black B = Pump Run 10 | Alderon Industries™ - Leading Edge Control Products... -
Page 11: Installation Of Vertimac™ Pump Switch (Sold Separately)
Placing the rubber grommet at the bottom of the rod could cause the grommet and float to separate from the actuator rod. (Pump Activated) (Pump Activated) Minimum (1.5″) Pump Differential (Pump Deactivated) Maximum (6.0″) Pump Differential (Pump Deactivated) Alderon Industries™ - Leading Edge Control Products | 11... -
Page 12: Mounting Pump Switch
Note: Make sure the pipe clamp is positioned as shown in the diagram when installing so excess portion of the clamp exits the fastener away from the pump switch. (120VAC Piggyback Plug Model Shown) 12 | Alderon Industries™ - Leading Edge Control Products... - Page 13 Do not connect power to the pump switch until the installation of both the Sump Advisor™ sensor and Sump Advisor™ alarm panel are completed. (120VAC Piggyback Plug Model Shown) Alderon Industries™ - Leading Edge Control Products | 13...
- Page 14 VertiMAC™ pump switch to maintain an accurate pumping range. VertiMAC™ Pump Switch Sump Advisor™ Sensor PUMP VertiMAC™ Off Level Pump Intake 14 | Alderon Industries™ - Leading Edge Control Products...
-
Page 15: Connecting Power To Vertimac™ And Sump Advisor
(5′) of the alarm panel. The power outlet should be on a separate circuit breaker from any other device and not on a switched receptacle to maintain power integrity. See step 1 and step 2 on page 8 for mounting alarm panel installation. Alderon Industries™ - Leading Edge Control Products | 15... -
Page 16: Testing
When the actuator rod on the VertiMAC™ pump switch is in the up position (activated), the pump should be on and the green pump run LED should be illuminated on the Sump Advisor™ alarm panel. High Pump Activation Level Sump Power Alarm Alarm Test Silence Pumping Range Deactivation Level 16 | Alderon Industries™ - Leading Edge Control Products... - Page 17 WARNING: If making any adjustments to the VertiMAC™ Sump Advisor™ system after testing has been completed, make sure to disconnect all power sources before servicing the product. Activation Level Deactivation Level Approximately 4.0″ High Pump Sump Power Activation Level Alarm Alarm Test Silence Alderon Industries™ - Leading Edge Control Products | 17...
-
Page 18: Assembly And Maintenance
Once the actuator rod arm has been placed into the VertiMAC™ pump switch housing in the up position, insert the actuator pin into the small hole on the left side of the housing until it snaps in place. 18 | Alderon Industries™ - Leading Edge Control Products... -
Page 19: Additional Assembly And Product Information
VertiMAC™ pump switch housing turns the pump off (A). When the actuator rod is in the up position (activated), the mechanism inside the VertiMAC™ pump switch housing turns the pump on (B). Alderon Industries™ - Leading Edge Control Products | 19... -
Page 20: Maintenance
STEP 1: UNLOCK FLOAT BASKET Unlock the float basket with your hands, gently pulling outward Locking on the locking tabs and rotating counterclockwise. Locking 20 | Alderon Industries™ - Leading Edge Control Products... - Page 21 (3C). Check to make sure the float basket is secured to ensure proper operation of the Sump Advisor™ sensor. Important: This Side Up Alderon Industries™ - Leading Edge Control Products | 21...
-
Page 22: General Operation
Sump Advisor™ alarm panel for local high level alarm and pump run indication. Sump Advisor™ Alarm Panel 5:05 REGENERATION MENU ENTER Sump Advisor™ House to Yard Sensor VertiMAC™ Pump Switch 22 | Alderon Industries™ - Leading Edge Control Products... -
Page 23: Sump Pump With Indoor/Outdoor Led Strobe Beacon
Indoor/Outdoor Sump Advisor™ LED Strobe Beacon Alarm Panel 5:05 REGENERATION MENU ENTER House to Yard Sump Advisor™ Sensor VertiMAC™ Pump Switch Alderon Industries™ - Leading Edge Control Products | 23... -
Page 24: Sump Pump With Auto Dialer
Sump Advisor™ Alarm Panel Auto Dialer 5:05 REGENERATION MENU ENTER House to Yard Sump Advisor™ Sensor VertiMAC™ Pump Switch 24 | Alderon Industries™ - Leading Edge Control Products... -
Page 25: Sump Pump With Battery Backup
Sump Advisor™ alarm panel and alarm auxiliary contacts on the control panel. Sump Advisor™ Alarm Panel 5:05 REGENERATION MENU ENTER House to Yard VertiMAC™ Pump Switch with Sump Advisor™ Sensor VertiMAC™ (backup) Pump Switch (primary) Alderon Industries™ - Leading Edge Control Products | 25... -
Page 26: Sump Pump With Battery Backup And Auto Dialer
Sump Advisor™ Alarm Panel Auto Dialer 5:05 REGENERATION MENU ENTER House to Yard VertiMAC™ Pump Switch with Sump Advisor™ Sensor VertiMAC™ (backup) Pump Switch (primary) 26 | Alderon Industries™ - Leading Edge Control Products... -
Page 27: Troubleshooting
Sump Advisor™ alarm the Sump Advisor™ alarm panel, refer pump or sump sensor high level alarm panel terminal block to the sump sensor wire connections on float has been activated page 10 Alderon Industries™ - Leading Edge Control Products | 27... -
Page 28: Specifications
1.5″ - 6.0″ (inches) Operating Temperature: 0 - 140° F Certifications: CSA (US and Canada) Note: The VertiMAC™ pump switch must be used with pumps that provide integral thermal overload protection. 28 | Alderon Industries™ - Leading Edge Control Products... -
Page 29: Warranty Information
Three-Year Limited Warranty - Standard Products LIMITED WARRANTY: Subject to the conditions of this Three-Year Limited Warranty, Alderon Industries, LLC (“Alderon”) war- rants to the original user or consumer of an Alderon product (the “Product”) that, for a period of three (3) years from the date of manufacture, the Product will be free from defects in materials and workmanship under normal use and service, and provided the Product is installed, operated and maintained in accordance with instructions supplied by Alderon. - Page 30 Sump Advisor™ 2-Zone Alarm and Sensor - USER GUIDE This page intentionally left blank 30 | Alderon Industries™ - Leading Edge Control Products...
- Page 31 Sump Advisor™ 2-Zone Alarm and Sensor - USER GUIDE This page intentionally left blank Alderon Industries™ - Leading Edge Control Products | 31...
-
Page 32: Company Information
UG00019_Rev04_Sump Advisor 2-Zone Alarm Panel and Sensor | November 25, 2020 2:53 PM Company Location: 151 16th Street South, Hawley, MN 56549 Mailing Address: PO Box 827, Hawley, MN 56549 Main Office Phone: 218.483.3034 Website: alderonind.com General Inquiry Email: info@alderonind.com Submit New Orders: orders@alderonind.com...
