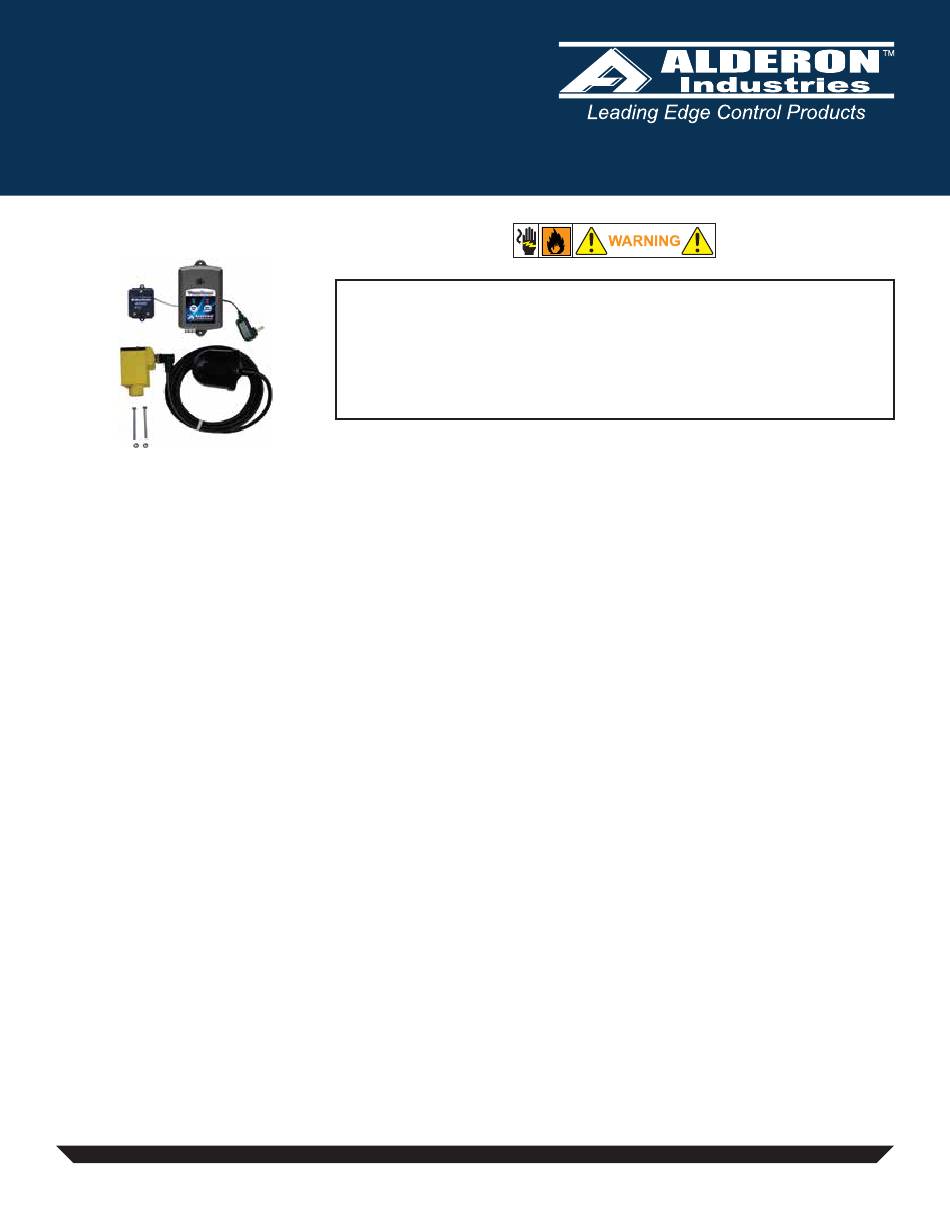

Alderon Industries Wireless Versa'larm VA01B Operation, Maintenance And Installation Manual

Wireless Versa'larm
1-Zone Alarm - Model VA01B
Part Numbers - 7991 and 7992
Operation, Maintenance and Installation Manual

Introduction of Installation

Safety Guidelines

1. DISCONNECT ALL ELECTRICAL SERVICE BEFORE INSTALLING OR WORKING ON THE PRODUCT.
2. DO NOT USE WITH FLAMMABLE OR EXPLOSIVE FLUIDS SUCH AS GASOLINE, FUEL OIL, KEROSENE, ETC.
DO NOT USE IN EXPLOSIVE ATMOSPHERES.
3. ALARM PANEL AND RECEIVER MUST BE MOUNTED INDOORS. FOR OUTDOOR APPLICATIONS CONSULT FACTORY.

Description of Operation

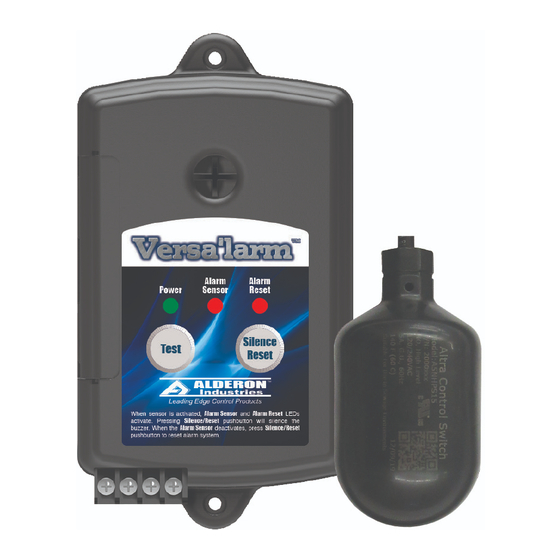

The 1-Zone Wireless Versa'larm™ alarm panel is powered by 120 VAC coming from standard wall outlets and is trans-
formed to 9-11.1 VDC. Installing a 9 Volt battery provides battery backup during power outages. The power LED (green) will
illuminate when powered. The Wireless Versa'larm™ is a multipurpose alarm panel used in a variety of applications such
as: septic tanks, sumps, holding tanks, pump chambers, water tanks, flow, pressure, condensate, temperature, and any
others where a "dry contact" can be connected to the alarm panel.
When the liquid level rises, a switch (signaling device) contact "closes" which will activate the transmitter and sends a signal
to the alarm/receiver activating the alarm system. The buzzer will annunciate, alarm LED (red) will illuminate, and the built
in auxiliary contacts will be activated. The auxiliary contacts can be used to connect to an Alderon Industries Auto Dialer, an
existing security system, or building automation system (BAS).
Pressing the "Alarm Silence" pushbutton will silence the buzzer and the alarm LED (red) remains on. When alarm condition
is cleared, the system automatically resets itself for the next alarm cycle. Part number 7991 includes an indoor rated high
water alarm panel, indoor wireless receiver, outdoor rated wireless transmitter and float switch. Part number 7992 includes
all items in the 7991 alarm system, plus a riser connection kit and mounting post (actual riser not included).

Tools, Supplies and Requirements for Installation - Not Included

1. Phillips screw driver
2. Drill and 3/16" drill bit
3. 3/8" Wrench
4. (Qty 4) #6 self tapping screws
5. Access to 120 VAC power receptacle
6. Optional - Plastic anchors (#8; Qty 4) if mounting to sheet rock (alarm and wireless receiver)
7. Optional - 9V battery (used for battery backup during power outages)
8. Optional - Wire stripper (used if you need to strip wire to connect to a BAS or SCADA system)
9. Optional - Needle nose pliers if using auxiliary contacts
10. Optional - 3" screws if mounting wireless receiver without mounting kit (plastic anchors for sheet rock; Qty 2)
Alarm Systems Control Panels
Alderon Industries - Hawley, MN | 218.483.3034 | info@alderonind.com | alderonind.com
™
Before proceeding with the installation or operation of the product, read all
instructions thoroughly, as well as complying with all federal, state and local
codes, regulations, and practices. The product must be installed by qualified
personnel familiar with all applicable local electrical and mechanical codes.
Refer to the National Electrical Code (NFPA 70). Failure to properly install and
test this product can result in personal injury or equipment malfunction.
Float Switches Leak Detection Systems P/N: 101985 Page 1 of 6
