Summary of Contents for Yard force EM N34A

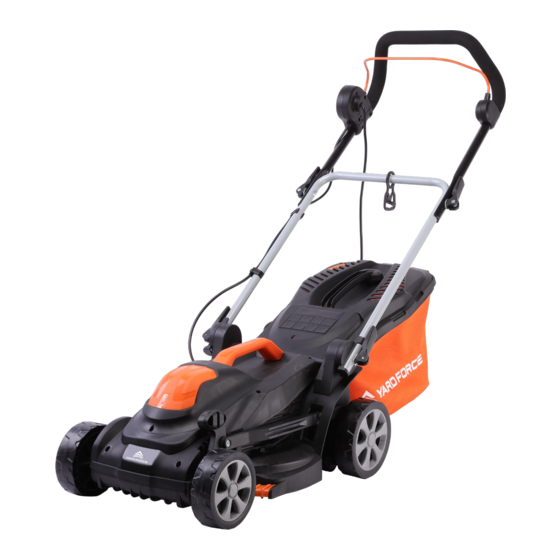

- Page 1 EM N34A SLM34L ELECTRIC LAWN MOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 2 Read this manual carefully prior to assembling and operating the lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
-
Page 4: Table Of Contents
INTENDED USE EM N34A Original Instruction The device is exclusively designed for mowing private lawns. The lawn must be dry and level. Wildflower meadows, uncultivated meadows and strongly overgrown lawns with high weeds (such as thistles) are not considered lawns. -
Page 5: General Safety Warnings
GENERAL SAFETY WARNINGS PRODUCT SAFETY WARNINGS Safety notes - The length shall not exceed 50 m. Risk of electric shock! - The power cable wire cross section must be at least 1.5 Improper handling of the device, faulty electric installation mm . -
Page 6: Symbols
PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS CAUTION! Safety symbols Risk of injury! The purpose of safety symbols is to attract your Improper handling of the device can cause injuries. attention to any possible dangers. The safety symbols 1. The blade is sharp; take care when touching the and their explanations deserve your careful attention blade. - Page 7 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS Declaration of conformity (see chapter The symbol shows the maximum sound power “Declaration of conformity”): Products marked level L with this symbol meet all the applicable Community regulations of the European The device is protected from all sides against water Economic Area.
-
Page 8: Technical Data
TECHNICAL DATA DESCRIPTION OF PRODUCT Parts description (Fig. A) Model EM N34A Handle grip (top) Rated voltage/frequency 230–240 V~/50 Hz Pull relief (for the power cable) Quick-release lever (handle joint) Rated power 1400 W Bottom part of handle Collecting bag... -
Page 9: Installation
INSTALLATION OPERATION Mounting the bottom part of the handle on the lawn mower (Fig. C) Rules of operation Slide the pull relief onto the bottom part of the handle. The following rules must be observed at all times when working on and with the lawn mower. Slide the connecting pieces onto the bottom part of the handle. - Page 10 OPERATION OPERATION Adjusting the cutting height (Fig. H) Emptying the collecting bag You can set the cutting height between approximately 20 and 70 mm. The cutting height lever The collecting bag has a fill level indicator. The fill level indicator rises when the motor is running and the collecting bag is empty.
-
Page 11: Maintenance And Storage
MAINTENANCE AND STORAGE MAINTENANCE AND STORAGE Cleaning Storage Risk of electric shock! NOTE: Improper storage of the device can result in damage. Moisture in the device may cause a short circuit or electric shock. Let the device dry before storing it. Residual moisture and cuttings remaining in the Before cleaning, disconnect the power cable from the socket. -
Page 12: Troubleshooting
Declare that the product: or the RCCB has tripped. Machine Description: Electric lawnmower Motor does not start EM N34A/ SLM 34L Let go of the safety bar and push the Function: Cutting grass The button on the safety button on the safety switch before switch was not pushed. -
Page 13: Declaration Of Conformity
Unit A&B Escrick Business Park Escrick, York YO19 6 FD United Kingdom Declare that the product: Machine Description: Electric lawnmower EM N34A/ SLM 34L Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Supply of Machinery (Safety) Regulations 2008...
