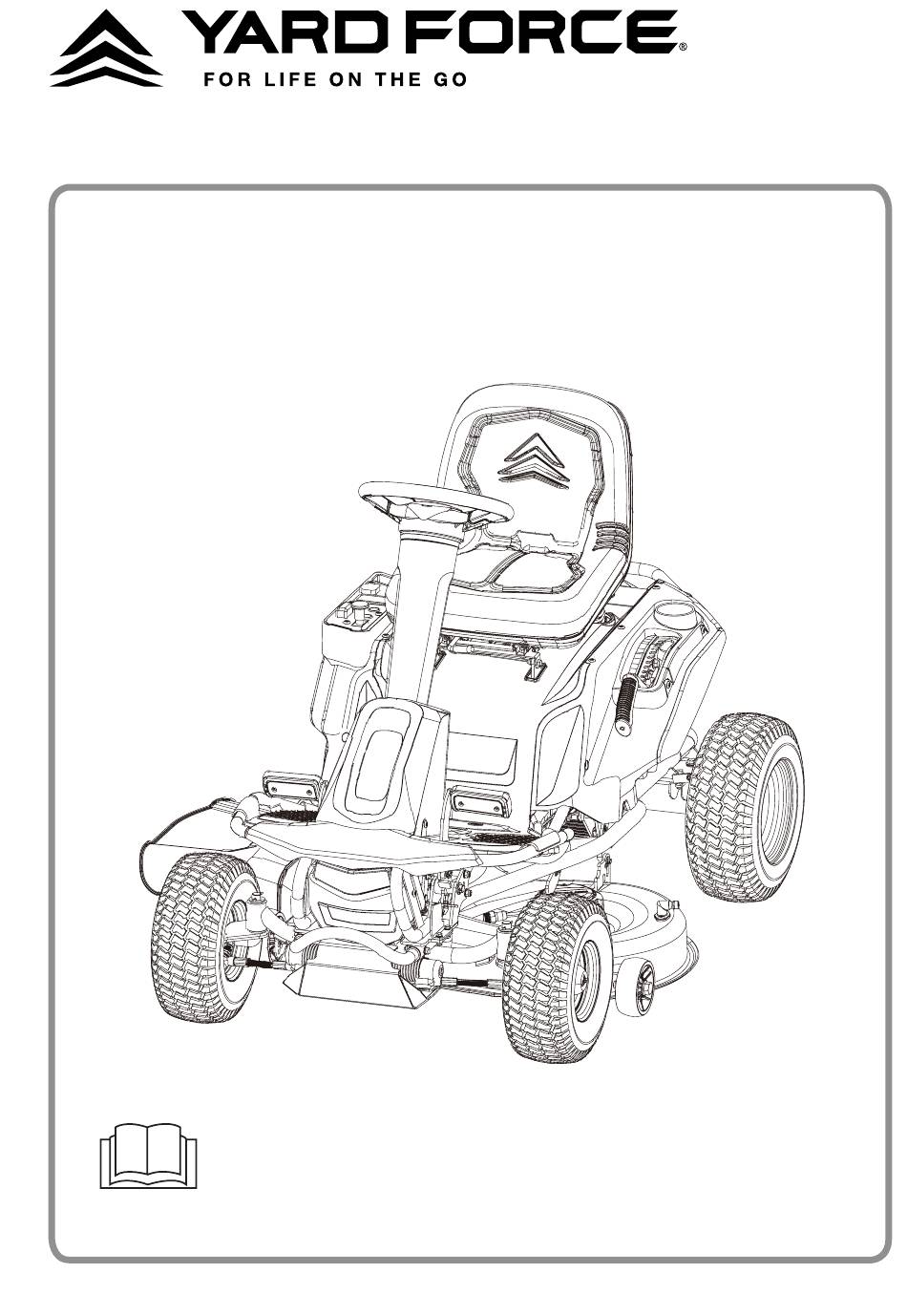

  • Page 1 ProRider E559 56V RIDE-ON LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
  • Page 2: Table Of Contents

    SYMBOLS ProRider E559 Original Instructions Safety symbols The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full CONTENT understanding. The symbol warnings do not, by themselves, eliminate any danger.
  • Page 3: Symbols

    SYMBOLS SYMBOLS Thrown objects can ricochet and result in personal injury or property The product complies with the applicable European directives and an damage. evaluation method of conformity for these directives was done. Thrown objects can ricochet and result in personal injury or property Conforms to relevant UK regulatory requirements.
  • Page 4: General Safety Warnings

    SYMBOLS GENERAL SAFETY WARNINGS WARNING: Read all safety warnings and instructions. Failure to follow the Prevent lightning damage to the machine. warnings and instructions may result in electric shock, fire and/or serious personal injury. IMPORTANT The product complies with the applicable READ CAREFULLY BEFORE USE European directives and an evaluation method of KEEP FOR FUTURE REFERENCE...
  • Page 5 GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS DANGER 8. Do not let familiarity gained from frequent use of tools allow you to become Moisture and electricity are not compatible: complacent and ignore tool safety principles. A careless action can cause • Make sure your hands are dry when handling and connecting the electrical severe injury within a fraction of a second.
  • Page 6: Product Safety Warnings

    GENERAL SAFETY WARNINGS PRODUCT SAFETY WARNINGS Training 6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion 1. Become acquainted with the controls and the proper use of the machine. Learn how 7.
  • Page 7 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS 6. Be very careful near ravines, ditches or embankments. The machine could overturn if a SAFETY INSTRUCTION wheel slides over the edge or if the earth gives way. If something breaks or an accident occurs during work, turn off the motor and 7.
  • Page 8: Description Of Product

    PRODUCT SAFETY WARNINGS DESCRIPTION OF PRODUCT Parts description ENVIRONMENTAL PROTECTION Protecting the environment must be a significant and top priority for machine use, to the benefit of civil co-habitation and of the environment that we live in: 1. Scrupulously comply with local regulations for the disposal of packaging, deteriorated parts or any elements with a strong environmental impact;...
  • Page 9 DESCRIPTION OF PRODUCT DESCRIPTION OF PRODUCT • REVERSE MODE BUTTON The safe use of this product requires an understanding of the information on the product and in this Press the reverse mode button to allow the mower to cut when maneuvering in the reverse direction. operator’s manual as well as a knowledge of the project you are attempting.
  • Page 10: Technical Data

    TECHNICAL DATA DESCRIPTION OF PRODUCT The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method (EN62841) and may be used for comparing one tool with another. The declared vibration total value may Flange Nut Bolt (B also be used in a preliminary assessment of exposure.
  • Page 11: Installation

    Inspect the product carefully to make sure no breakage or damage occurred during shipping. • If any parts are damaged or missing, please call Yard Force customer service. NOTE: Mower should be assembled while positioned on the frame bottom. Once assembly is complete, raise the cutting deck to its highest position.
  • Page 12 INSTALLATION INSTALLATION ASSEMBLE THE STEERING COLUMN FINAL PREPARATION • Install the upper steering shaft onto the lower steering shaft, rotate as needed to align the holes in both CHECK TYRE PRESSURE shafts. Check the air pressure in all tyres before use. Improper air pressure will affect handling, steering response, •...
  • Page 13: Operation

    Always inspect mower for missing or damaged parts and blades for damage or uneven or excessive cable. If the cable is connected but the system still doesn’t function, please contact Yard Force wear prior to use. Use of the mower with damaged or missing parts can result in serious personal Customer Service.
  • Page 14 OPERATION OPERATION SETTING AND RELEASING THE PARKING BRAKE SETTING THE CUTTING DECK HEIGHT To set the parking brake: NOTE: To prevent scalping the lawn when encountering high spots, the cutting deck wheels should be • Place the direction control switch in the neutral (N) position. positioned off the ground when the mower is at the desired cutting height.
  • Page 15 OPERATION OPERATION OPERATING THE MOWER WARNING! Clear the area of bystanders before operating the mower. If anyone enters the mowing area, stop immediately and do not return to mowing until the bystanders leave the area. Before starting the mower: • Ensure work area is clear of children, bystanders, and pets.
  • Page 16 OPERATION OPERATION MOWING TIPS SLOPE OPERATION • Keep mower blades sharp. WARNING! • Make sure the lawn is clear of stones, sticks, wires, toys, tree nuts, tree branches, and other objects Slopes are a major factor related to tip-over and roll-over accidents that can result in severe injury or death.
  • Page 17: Maintenance And Storage

    OPERATION MAINTENANCE AND STOARGE TRANSPORTING THE MOWER MAINTENANCE AND STOARGE WARNING! WARNING! Before performing any maintenance, stop the mower, wait for the blades to come to a complete Use care when driving the mower off of or onto a trailer or truck and press the brake pedal as stop, and remove the start key to avoid accidental starting and possible serious personal injury.
  • Page 18 MAINTENANCE AND STOARGE MAINTENANCE AND STOARGE REMOVING THE CUTTING DECK On a flat, level surface set the parking pedal to the parking position. Refer to section “SETTING THE • If desired, the cutting deck can be removed from the mower to make accessing the blades easier when PARKING PEDAL”...
  • Page 19 MAINTENANCE AND STOARGE MAINTENANCE AND STOARGE • Wedge a block of wood between the blade and mower deck to prevent the blade from turning. TYRE REPAIR • Loosen the blade nut by turning it counterclockwise (as viewed from bottom of mower) using a 14 mm If a leak or flat tyre occurs due to a puncture, the tyre may be repaired using a plug-type patch.
  • Page 20 MAINTENANCE AND STOARGE MAINTENANCE AND STOARGE Before beginning: STORING THE MOWER • Make sure direction control switch is in neutral (N) position and blade engage knob is down. The following steps should be taken before storing the mower for the season. •...
  • Page 21: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING 1. Ensure safety interlock system Blades continue to turn after seat plug is fully connected. Fault/Malfunction Cause(s) Solution(s) 1. Safety interlock system is not operator leaves seat without If blades still won’t stop, take functioning correctly. 1. Charge the battery. parking pedal set.
  • Page 22: Declaration Of Conformity

    Declare that the product: Declare that the product: Description: 56V Ride-on Lawnmower Description: 56V Ride-on Lawnmower Model No. ProRider E559 Model No. ProRider E559 Function: Cutting grass Function: Cutting grass Complies with the essential health and safety requirements of the following directives:...
