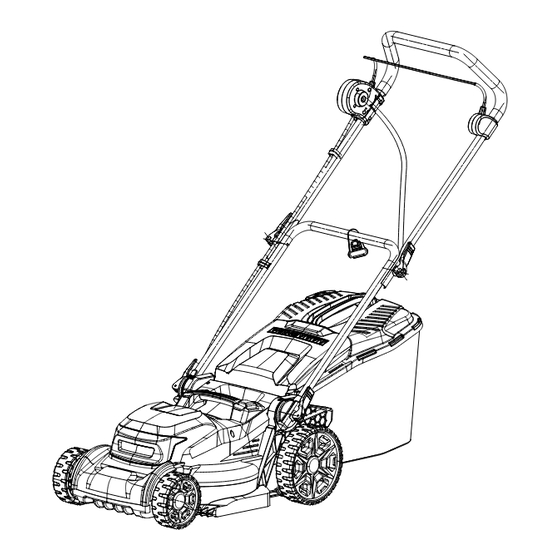

Electric lawn mower

Advertisement

Quick Links

GB
ELECTRIC LAWN MOWER
Original Instructions
READ & UNDERSTAND
INSTRUCTION MANUAL
Save all warnings and instructions for future reference.
EM N37B
SLM37M-ZB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM N37B and is the answer not in the manual?

Questions and answers

Summary of Contents for Yard force EM N37B

  • Page 1 EM N37B SLM37M-ZB ELECTRIC LAWN MOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
  • Page 2 V1.0...
  • Page 5 Step 1 Step 2...
  • Page 6: Table Of Contents

    EW N37B Original Instruction CONTENT Intended use General safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting Declaration of conformity Disposal...
  • Page 7: Intended Use

    INTENDED USE The device is exclusively designed for mowing private lawns. The lawn must be dry and level. Wildflower meadows, uncultivated meadows and strongly overgrown lawns with high weeds (such as thistles) are not considered lawns. This device is intended for private use only and is not suitable for commercial use. Use the device only as described in this operating manual.
  • Page 8 GENERAL SAFETY WARNINGS Safety notes Risk of electric shock! Improper handling of the device, faulty electric installation or excessively high mains voltage may result in an electric shock. - Only connect the device to a properly installed socket. The mains voltage must match the value indicated on the rating plate.
  • Page 9 GENERAL SAFETY WARNINGS - The length shall not exceed 50 m. - The power cable wire cross section must be at least 1.5 mm . - Always completely unroll cable drums before use. - Check the cable for damage. WARNING! Danger for children and persons with impaired physical, sensory or mental capacities (e.g.
  • Page 10 GENERAL SAFETY WARNINGS CAUTION! Risk of injury! Improper handling of the device can cause injuries. - The blade is sharp; take care when touching the blade. - Do not reach underneath the device or into the discharge chute. - Do not operate the device when other persons or animals are around.
  • Page 11: Symbols

    SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures.
  • Page 12 SYMBOLS Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all the applicable Community regulations of the European Economic Area. This symbol indicates that the device complies with the protection class II. General warning sign. Read the operating manual.
  • Page 13 SYMBOLS The symbol shows the maximum sound power level L Never use mower unless the grass catcher or guard provided is in position. Do not expose the product to rain or wet conditions. IPX4 Degree of protection against ingress of water. Conforms to relevant UK regulatory requirements.
  • Page 14: Technical Data

    TECHNICAL DATA Model EW N37 Rated voltage/frequency 230–240 V~/50 Hz Rated power 1600 W Protection class IP rating IPX4 Max. rpm 3500 min Cutting width 370 mm Cutting height 25-75 mm, 7 positions Capacity of grass bag 40 L Weight 13.6 kg Measured sound power level (L 92.0 dB(A), K=2.8 dB(A)
  • Page 15: Description Of Product

    DESCRIPTION OF PRODUCT Parts description (Fig. A) Top handle Power supply Quick release clamp (fixed in screw) x 2 Push button - cutting height adjustment Grass bag Transportation handle Quick release clamp (curved head) x2 Rear safety flap Cable clip x2 10.
  • Page 16: Installation

    INSTALLATION Assemble the lower handle (Fig. C) Attach the two tooth clamps to the lower handle. Attach the lower handle to the lawnmower (Fig. D) Install the lower handle to the lawnmower with the quick release clamps (with fixed in screw). Make sure that the teeth of fixing gears interlock correctly.
  • Page 17: Operation

    OPERATION Setting cutting height (Fig. J) If you wish to change the cutting height, depress the height adjust button and lift the deck up and down to your desired cutting posn- release the button. WARNING: Never operate the height adjust button roughly. Switching ON/OFF (Fig.
  • Page 18 OPERATION Mowing Never cut off more than one-third of the total length of the grass for a healthy lawn. In the autumn, lawns should only be cut as long as there is growth. Slowly push the product forward. Mow in slightly overlapping rows. The most effective pattern for mowing lawns is straight lines along one of the sides.
  • Page 19: Maintenance And Storage

    MAINTENANCE AND STORAGE Cleaning WARNING: Always remove the plug from the power supply before any cleaning. Moisture in the device may cause a short circuit or electric shock. Before cleaning, disconnect the power cable from the socket. Make sure that no water or other liquid gets inside the housing. Never clean the device with running water (e.g.
  • Page 20 MAINTENANCE AND STORAGE Damage to the device, such as broken housing parts or worn collecting bag. If you detect any defects, contact customer service or a specialist workshop. Do not operate the device with a detected defect. Storage After cleaning the unit thoroughly, store mower flat on the ground or vertically in a dry room and allow the motor to cool down.
  • Page 21: Troubleshooting

    TROUBLESHOOTING Fault/malfunction Cause Remedy The mains plug is not correctly Check that the mains plug is fitted plugged in. properly. The socket does not supply Check the power cable for damage, any power/the fuse has blown also check the plug fuse. or the RCCB has tripped.
  • Page 22: Declaration Of Conformity

    MEROTEC GmbH Otto-Brenner-Str. 8, 47877 Willich, Germany Declare that the product: Machine Description: Electric lawnmower EM N37B/ SLM37M-ZB Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/EU...
  • Page 23 Unit A&B Escrick Business Park Escrick, York YO19 6 FD United Kingdom Declare that the product: Machine Description: Electric lawnmower EM N37B/ SLM37M-ZB Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Supply of Machinery (Safety) Regulations 2008...
  • Page 24: Disposal

    DISPOSAL Disposing of packaging Dispose of packaging according to type. Sort the paperboard and cardboard as waste paper and the film as recyclable material. Disposing of the washer Applicable in the European Union and other European countries with systems for separate collections of recyclable waste. This symbol indicates that this product may not be disposed of together with domestic waste in compliance with the (2012/19/EU) Regulation pertaining to waste electrical and...
