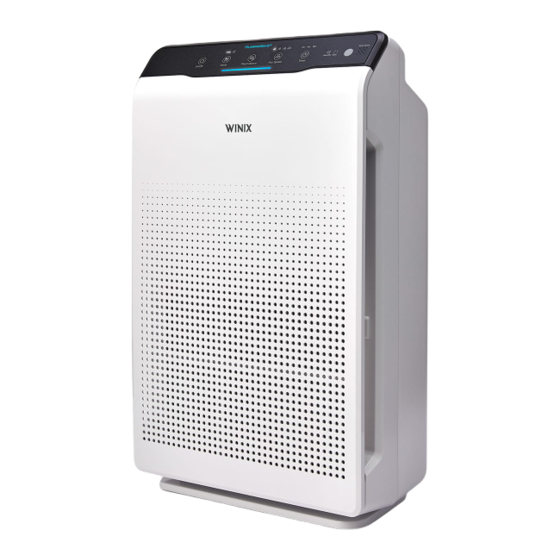

Winix C535 User Manual

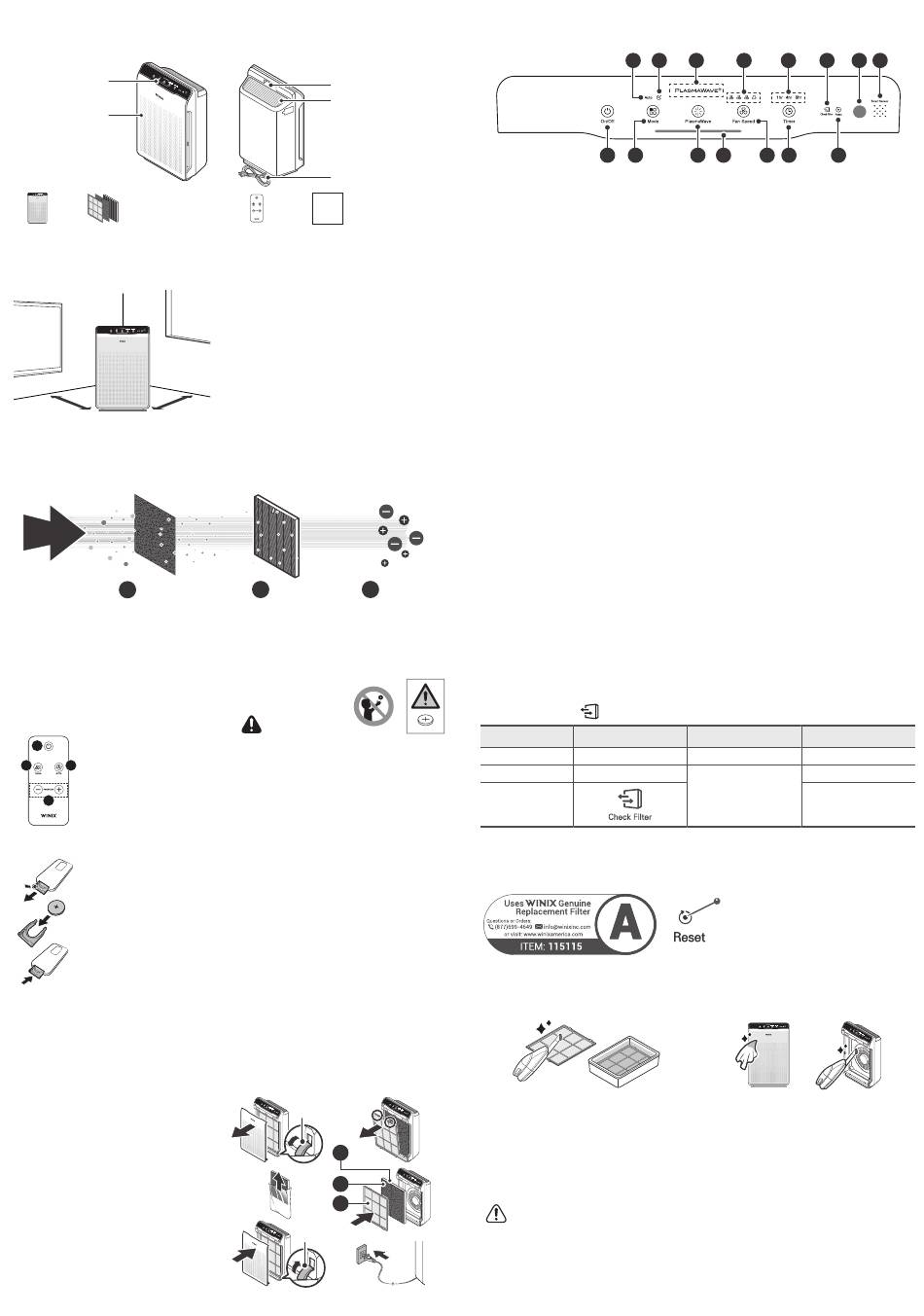

MODEL PART DIAGRAM
FRONT
Control Panel
Front Panel
PACKAGE CONTENTS
(1) Pre-Filter
Unit (4) Activated Carbon Filters
(1) True HEPA Filter
WHERE TO USE
12~18 in
12~18 in
3-STAGE AIR PURIFICATION
01
Activated Carbon Filter
REMOTE CONTROL
Operates in a 20 foot radius:
• (A) Power: Turns the unit on or off.
A
• (B) Auto: Enables Auto Mode.
D B
• (C) Fan Speed: Enables manual
operation of the fan speeds.
• (D) Turbo: Enters Manual Mode
C
and directly sets the fan speed
to Turbo.
How to replace your remote's battery:
1. Flip over your remote and open
battery tray.
1.A
1.A : Pinch the lever in while,
1.B 1.B: Pulling the battery tray out.
2. Insert battery into the battery
2.A
tray as shown.
2.A : Make sure the polarities [+]
[-] match when placing in the tray.
3.A
3. Close the battery tray.
3.A : Reinsert battery tray into
remote until you hear a "click"
sound.
※ Keep all used batteries (CR2025) in safe place.
INITIAL OPERATION
1.
Remove the front panel by grasping its upper
edge and gently pulling forward.
2.
Remove the Pre-Filter, then the plastic bag of
filters behind it.
3.
Remove filters from protective plastic bag.
4.
Install the filters until they fit securely in place.
03. True HEPA Filter (back)
02. Activated Carbon Filter (middle)
01. Pre-Filter (front)
5.
After filters are installed, close the front panel.
6.
Insert the power cord into an electrical outlet.
BACK
Handle
Air Outlet
Vent
Power Plug
Remote
User Manual
Control
Remote Control and User Manual will be located
on the top insert after the box is opened.
Allow 12 ~ 18 in. of space between TVs, radios, and other
electronics
Electromagnetic interference from certain electronics may
cause product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and
vibrations.
Allow at least 12~18 in. from walls for maximum air flow
Air Purification means it
removes inanimate particles
02 True HEPA Filter 03 PlasmaWave
W A R N I N G
• Incorrect battery usage may cause battery fluid
leakage and/or damage.
• When not using remote for extended periods of time,
remove the battery.
• Avoid dropping or damaging the remote.
• WARNING: Chemical Burn Hazard. Keep batteries
away from children.
• This product contains a lithium button/coin cell
battery. If a new or used lithium button/coin cell
battery is swallowed or enters the body, it can cause
severe internal burns and can lead to death in as little
as 2 hours.
• Always completely secure the battery compartment.
• If the battery compartment does not close securely,
stop using the product, remove the batteries, and
keep it away from children.
• If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medical attention.
• The batteries should be disposed of properly,
including keeping them away from children. Even
used batteries may cause injury.
Latch
03
02
01
Latch
CONTROL PANEL
09
01. Auto Indicator
Indicates whether Auto Mode is enabled or disabled.
02. Sleep Indicator
Indicates whether Sleep Mode is enabled or disabled.
03. PlasmaWave ® Indicator
Indicates whether PlasmaWave ® is enabled or disabled.
04. Fan Speed Indicator
Indicates the current fan speed.
05. Timer Indicator
If timer has been set, the LED light indicates the set time
of operation.
06. Filter Replacement Indicator
LED light indicates when it is time to change the filter.
07. Light Sensor
Detects the amount of ambient light in the environment.
08. Smart Sensor
Detects the amount of odorous gas in the environment.
When in Auto mode, the fan speed adjusts according to
the detected amount of gas.
09. Power Button
Turns the unit on or off.
During the first 30 seconds of powering up, the Air Quality
Indicator will cycle through Blue, Amber and Red colors.
Smart Sensor takes approximately 4 minutes to detect the air
quality in the environment before normal operation begins.
10. Mode Button
Press to cycle through to set the mode of operation (Auto,
Sleep). The unit will default to Auto with PlasmaWave ®
enabled when first powered on.
• Auto Mode:
- Auto Mode automatically adjusts fan speeds
®
according to your indoor air quality. The fan speed
will adjust to low when air quality is good, medium
when fair, and to high when poor.
MAINTENANCE
When to Replace Filters
Filter Indicator Light
Pre-Filter
Activated Carbon Filter
True HEPA Filter
• When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter and Activated Carbon Filter.
• Intervals between filter replacement may vary depending on environment.
REPLACING FILTERS
CLEANING CARE
Cleaning the Filters:
Use a vacuum cleaner or soft brush to clean the Pre-Filter
• If it is excessively soiled, rinse in room temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more before using.
• Intervals between filter cleaning may vary depending on
the air quality in the environment.
• Do not use hot water over 104 o F.
N O T I C E
• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify the unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.
• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
01 02 03 04 05
10 11 12 13 14
• Sleep Mode:
- When Sleep Mode is activated, the Air Quality
Indicator LED light is disabled.
- Fan speed will automatically set to minimum speed
(lower than 'Low') which will be nearly silent.
- When Sleep Mode is active, PlasmaWave ® will be
disabled, but it can be turned back on.
®
11. PlasmaWave Button
Enables or disables PlasmaWave
"When the unit is running, you may hear a chirping or
buzzing sound. The sound is from large particles passing
®
through PlasmaWave , it is normal and does not signify
product failure."
Press the PlasmaWave ®
to enable or disable this feature.
12. Air Quality Indicator
Color coded LED light indicates one of three levels of
Air Quality: Red (poor), Amber (fair), and Blue (good).
13. Fan Speed Button
Enables manual operation of the unit's fan speeds.
• Press to cycle through and set the desired fan speed
(Low, Medium, High, Turbo).
14. Timer Button
Press to cycle through and set desired length of operation
(1hr, 4hr, 8hr, [NO TIMER]).
15. Filter Reset Button
After replacing the filter, turn on the unit and then use a
thin object, such as a paper clip, to press the Filter Reset
Button for 5 seconds.
When to Service
none Clean once every 14 days
none
Can NOT be WASHED
Resetting Filter Life:
After replacing your True HEPA Filter, place the
Pre-Filter back in and close the Front Panel. While
the unit is on, hold the Filter Reset Button for at
least 5 seconds until you hear the beep. After
the beep, the Filter Replacement Indicator will
disappear. Your Winix True HEPA is now reset.
Cleaning the Exterior & Interior:
1.
Open the front panel and clean the interior with a
vacuum cleaner.
• A handheld vacuum or hose attachment will work best.
2.
Dampen a cloth with room temperature water and wipe
down the interior and exterior of the unit.
3.
Wipe the unit down with a clean, dry cloth.
• Ensure no moisture remains before plugging the unit back in.
* For optimal performance, clean every 1 - 2 months.
06 07 08
15
®
.
button when the unit is on
When to Replace
Permanent
Replace every 3 months
Lasts Approx.12 months
