OfficeSource EVS700GG Assembly Instructions

36“storage cabinet

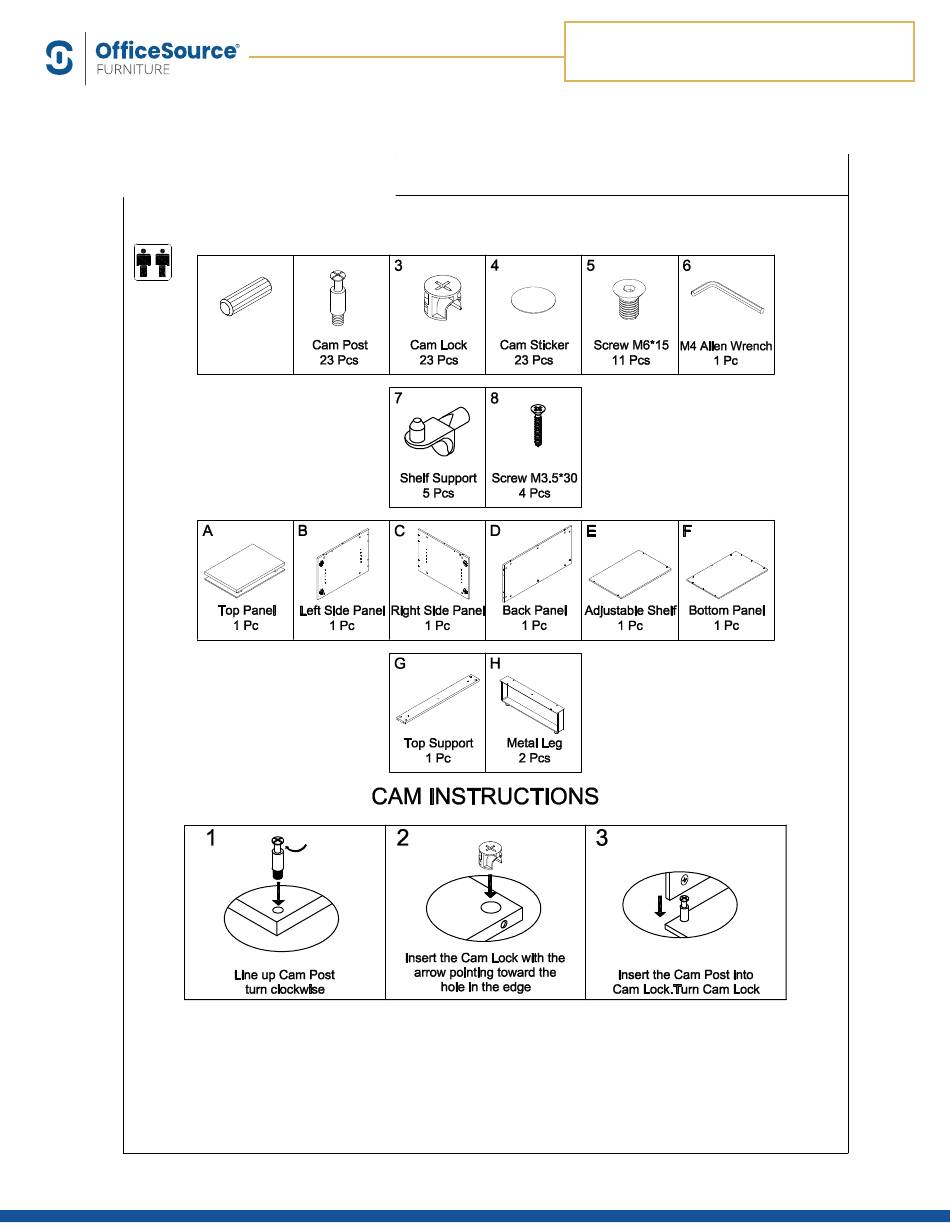

Wood Dowel

9 Pcs

IMPORTANT NOTE:

Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched

Check that you have all parts and hardware.

Remove all wrapping materials, including staples & packing straps before you start assemble.

Do not tighten all screws or bolts untill all completely assembled.

Keep all hardware parts out of reach of children.

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

36"Storage Cabinet

MODEL NO. EVS700GG

P.1

OFFICESOURCE.COM

Table of Contents

Do you have a question about the EVS700GG and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS MODEL NO. EVS700GG 36“Storage Cabinet Wood Dowel 9 Pcs IMPORTANT NOTE: Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched Check that you have all parts and hardware.
Page 2 ASSEMBLY INSTRUCTIONS MODEL NO. EVS700GG EVS700GG 36“Storage Cabinet Insert Wood Dowel ( 1) & Cam lock (2) to all panels. Install Klix Cam ( 3) to Panel (B&C&D$G). Fasten Side Panel (B&C) and Panel (G) to Back Panel (D ) ; Attach the Cam Sticker ( 4) to Cams;...
Page 3 ASSEMBLY INSTRUCTIONS MODEL NO. EVS700GG EVS700GG 36“Storage Cabinet Use Wood Dowel (1),Cam Lock (2) & Klix Cam(3) to fasten Top Panel (A) and Bottom Panel (F) and other panels(B&C&D) together. Use Screw (8) attach the Panel (G) to the Top Panel (A),Attach the Cam Sticker (4) to Cams;...
Page 4 ASSEMBLY INSTRUCTIONS MODEL NO. EVS700GG EVS700GG 36“Storage Cabinet Use screw (5) to attach the metal leg (H) under the cabinet. Insert the Shelf Support ( 7) to the Side Panel ( B&C), Put the Adjustable. Shelf ( E) on the Shelf Support ( 7);...
