- Page 1 ® ASSEMBLY INSTRUCTIONS MODEL NO. EVH200DGG/EBK OFFICE FURNITUR E OFFICESOURCE.COM Last Updated: 1/2024...

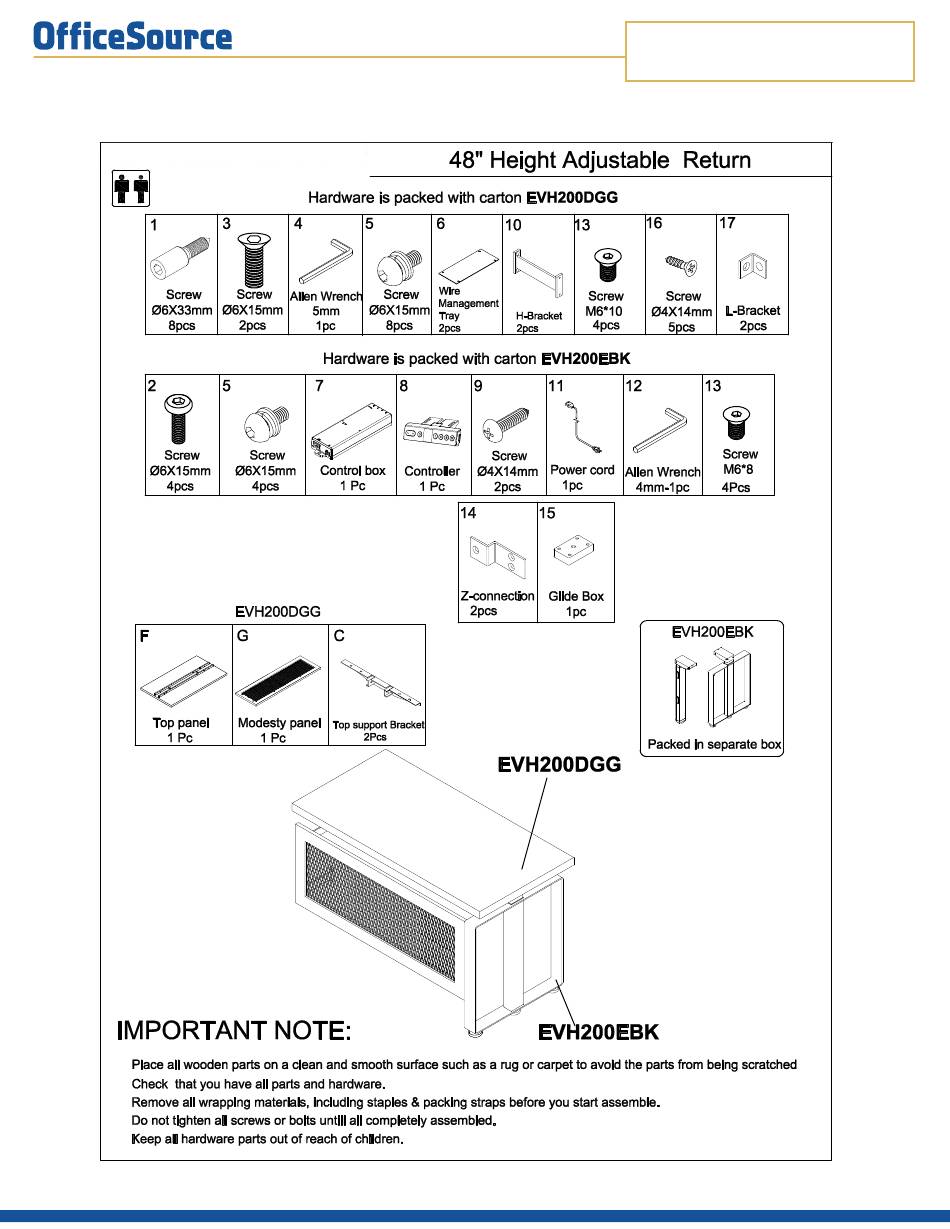

- Page 2 ® ASSEMBLY INSTRUCTIONS MODEL NO. EVH200DGG/EBK OFFICE FURNITUR E NOTE: The Return Desk can be installed as a Left Handed or Right Handed. Right Handed is shown in the instructions. If Left Hand is desired, attach Modesty Panel (G) to other side...
- Page 3 ® ASSEMBLY INSTRUCTIONS MODEL NO. EVH200DGG/EBK OFFICE FURNITUR E Assemble Modesty Panel (G) to Metal Base (EVH200EBK) using Screws (3) 13 (M6*10) Assemble 48" Height Adjustable Return (EVH200EBK,EVH200EBK) with Main desk EVD861GG EVD863GG EVD865GG EVP110GG EVD861GG EVD863GG EVD865GG EVH200DGG EVP100GG EVH200DBK OFFICESOURCE.COM...
- Page 4 ® ASSEMBLY INSTRUCTIONS MODEL NO. EVH200DGG/EBK OFFICE FURNITUR E Assemble 48" Height Adjustable LEFT Return (EVH200EBK,EVH200EBK) with Main desk EVD861GG EVD863GG EVD865GG Put Memory Controller (8) on desired location on front edge of top(F),and fasten with Screws (9) Finally Install Wire Management Tray (6) to Frame using Screws (5) and Wrench (12).
- Page 5 ® ASSEMBLY INSTRUCTIONS MODEL NO. EVH200DGG/EBK OFFICE FURNITUR E OFFICESOURCE.COM Last Updated: 1/2024...
- Page 6 LED will display OH. Stop using the desk for 18 minutes and let PROGRAM UP/DOWN: Press the UP Button, the legs will move up; Press DOWN the desk cool down. Button, the legs will move down; release to stop movement . OFFICESOURCE.COM Last Updated: 1/2024...
- Page 7 Columns do not go up evenly the problem persists, switch motor and re-plug. Reset the desk. If the Bluetooth device) cables at control box and attempt problem persists, switch motor another reset. cables at control box and attempt another reset. OFFICESOURCE.COM Last Updated: 1/2024...
