Model 362 Listen-Only Beltpack
User Guide
Issue 1, September 2016
This User Guide is applicable for serial numbers
M362-00151 and later with application firmware 1.1 and later
and Dante® firmware 2.1.1 (Ultimo 3.10.1.12) and later
Copyright © 2016 by Studio Technologies, Inc., all rights reserved
www.studio-tech.com
50630-0916, Issue 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 362 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Studio Technologies 362

Summary of Contents for Studio Technologies 362

  • Page 1 Issue 1, September 2016 This User Guide is applicable for serial numbers M362-00151 and later with application firmware 1.1 and later and Dante® firmware 2.1.1 (Ultimo 3.10.1.12) and later Copyright © 2016 by Studio Technologies, Inc., all rights reserved www.studio-tech.com 50630-0916, Issue 1...
  • Page 2 This page intentionally left blank.

  • Page 3: Table Of Contents

    Table of Contents Revision History ............4 Introduction ..............5 Getting Started .............. 7 Operation ..............11 Technical Notes ............. 13 Specifications ..............15 Model 362 User Guide Issue 1, September 2016 Studio Technologies, Inc. Page 3...

  • Page 4: Revision History

    Revision History Issue 1, September 2016: 1. Initial release. Issue 1, September 2016 Model 362 User Guide Page 4 Studio Technologies, Inc.

  • Page 5: Introduction

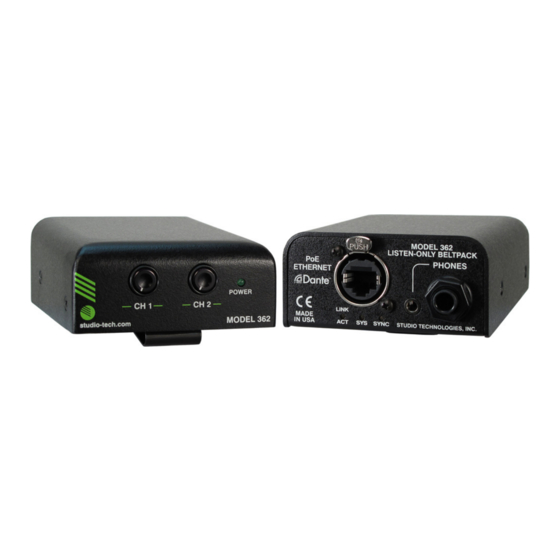

    3.5 mm 3-conductor (“stereo”) headphone (PoE) connection and a pair of headphones jacks allow connection of a wide range of Figure 1. Model 362 Listen-Only Beltpack top and bottom views Model 362 User Guide Issue 1, September 2016 Studio Technologies, Inc.
  • Page 6 Dante Audio-over-Ethernet are used to select the headphone out- put mode and another switch selects the Audio data is sent to the Model 362 using headphone output minimum level. The the Dante audio-over-Ethernet media net- headphone output mode can be con- working technology.

  • Page 7: Getting Started

    In this section signal interconnections the status of the network connection. will be made using the three connectors located on the bottom of the Model 362’s The Model 362’s operating power is pro- enclosure. An Ethernet data connection vided by way of the Ethernet interface us- with Power-over-Ethernet (PoE) capability ing the 802.3af Power-over-Ethernet (PoE)
  • Page 8 Model 362’s enclosure. This allows and audio common is on sleeve lead; connection by way of a cable-mounted the plug’s ring lead should be left uncon-...
  • Page 9 Physically the switches are accessible will not be selected. The Model 362 can from the back of the Model 362’s enclosure serve as the clock master for a Dante net- through a rectangular opening that is work but in most cases it will be configured...
  • Page 10 Level/Balance Note that the threaded fastener within the The level/balance mode is provided for back of the Model 362’s chassis has an stereo applications such as live music internal locking mechanism (a plastic bush- events or radio broadcasts. In these appli- ing) that prevents the belt clip’s 6-32 ma-...

  • Page 11: Operation

    Initial Operation position will cause the associated head- phone channel to fully mute. Selecting the The Model 362 will start to function as full mute mode may be appropriate for soon as a Power-over-Ethernet (PoE) applications where minimizing the chance power source is connected.
  • Page 12 362’s bottom panel. The LINK ACT LED Two rotary potentiometers (“pots”), locat- will light green whenever an active connec- ed on the Model 362’s top panel, allow ad- tion to a 100 Mb/s Ethernet network has justment of the level of the two audio input been established.

  • Page 13: Technical Notes

    DHCP (Dynamic Host Configuration Pro- its specific static IP address. If knowledge tocol). If a DHCP server is not detected an of a Model 362’s IP address has been IP address will automatically be assigned misplaced there is no reset button or using the link-local protocol.
  • Page 14 Once the version number has dis- bug fixes or feature improvements. It’s ex- played a slight pause will take place and pected that in most cases Model 362 units then the power LED will light sold green. would be returned to the factory should this As an example of what would be a typical firmware need to be loaded.

  • Page 15: Specifications

    Bit Depth: up to 24 timo “chip.” This firmware can be updated Sample Rate: 44.1, 48, 88.2 and 96 kHz by way of the Model 362’s Ethernet con- Number of Receiver (Input) Channels: 2 nection. The latest Dante firmware file will...
