Table of Contents
3
1
4
2
Assemble bracket as shown below.
Do not tighten!
1
Torque Bolts to 16ft-lbs / 22Nm.
3
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Designed and manufactured by AMP Research
7,367,574; 7,380,807; 7,398,985; 7,413,204; 7,487,986. Other US and Worldwide patents pending. Made in USA © 2009 AMP Research
Three-year limited warranty. Professional installation is recommended.
www.amp-research.com
Bracket A
5
6
Bracket B
7
. Patent Number 6,830,257; 6,641,158; 6,834,875; 6,938,909; 6,942,233; 7,007,961; 7,055,839; 7,163,221;
®
APPLICATION
Ford Super Duty
F250/ F350/ F450
8
3/16" T-Handle
6" Wobble Ext
3" Extension
Secure linkage
in a Vice.
13mm
13mm
2
Torque Bolts to 33ft-lbs /44Nm.
13mm
Remove this
nut completely
13mm
4
1/3

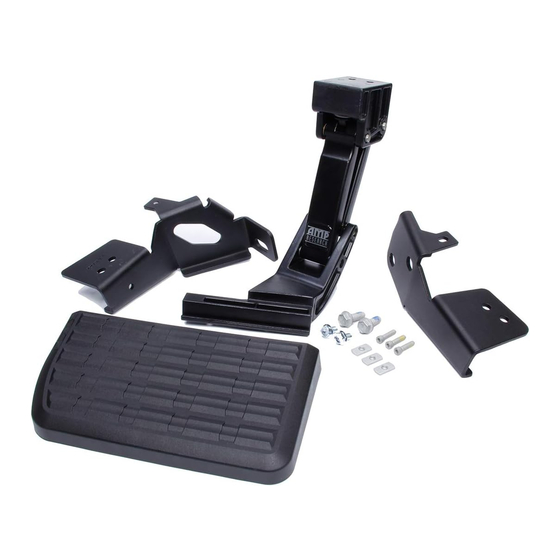

AMP PART # 75313-01A
2017 - 2021
(without dampener bracket)
Torque wrench
Hex Key
13mm Box Wrench
13, 15, 21mm
Loosen both of these
nuts enough to slide
bracket into position.
IM75313 rev 11.10.22
21mm
T-25
(Deep Well)
15mm
3" Ext
21mm
Deep Well
Advertisement
Table of Contents
Related Manuals for AMP Research BedStep 75313-01A
Summary of Contents for AMP Research BedStep 75313-01A
- Page 1 Designed and manufactured by AMP Research . Patent Number 6,830,257; 6,641,158; 6,834,875; 6,938,909; 6,942,233; 7,007,961; 7,055,839; 7,163,221; ® 7,367,574; 7,380,807; 7,398,985; 7,413,204; 7,487,986. Other US and Worldwide patents pending. Made in USA © 2009 AMP Research Three-year limited warranty. Professional installation is recommended. www.amp-research.com...
- Page 2 Set Bracket assembly into position over key hole Note: Verify bumper alignment before and slide over, flush to frame rail. Reinsert nut torquing bolts. from step 4, and then tighten all nuts, making sure bracket remains flush and square. Do not Torque! 21mm NOTE: Wobble extension recommended.
- Page 3 www.amp-research.com IM75313 rev 11.10.22...
- Page 4 • Registration helps us keep you up to date on product information and offers To view other Amp Research products that may be offered for your vehicle. Please visit: www.amp-research.com Rev 01.05.21...
- Page 5 L I MI TE D WARRAN T Y AMP RESEARCH warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
