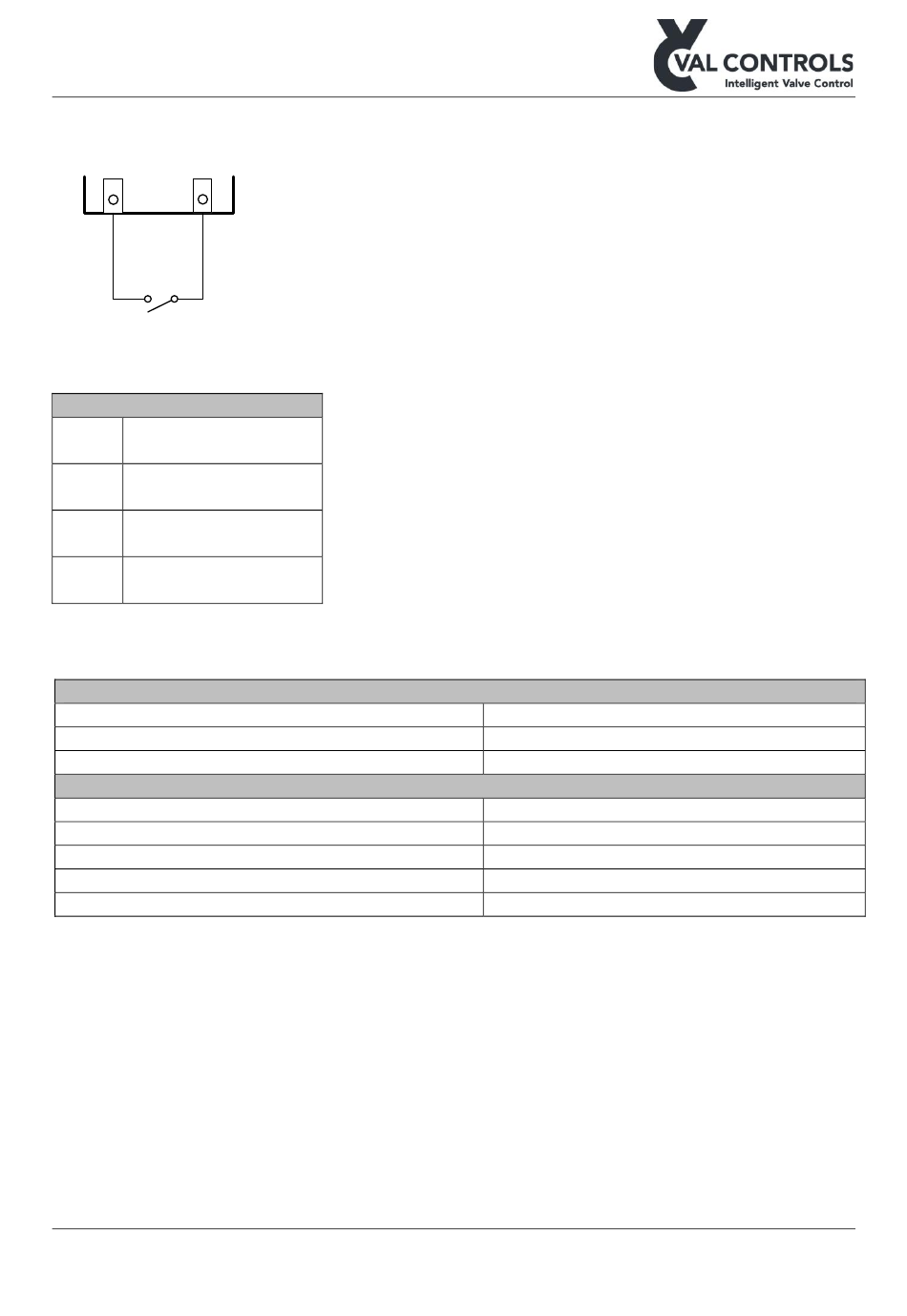

5.2 Digital input – DI5, DI6, DI7, DI8
DI
+ -
5.2.1 Terminals
DI5 51 (+)
52 (-)
DI6 25 (-)
26 (+)
DI7 23 (+)
24 (-)
DI8 21 (+)
22 (-)
5.2.2 Electrical specifications
DI – Switch
Type
Cable length
Maximum cable resistance
DI – NAMUR
Type
Sensor supply voltage
Cable length
Max load
Rin
Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600
DHW-UM-004
Revision: 4
Switch
20 meters
100 Ohm
NAMUR
8 V
1000 meters
600 Ohm
1040 Ohm
